Overview

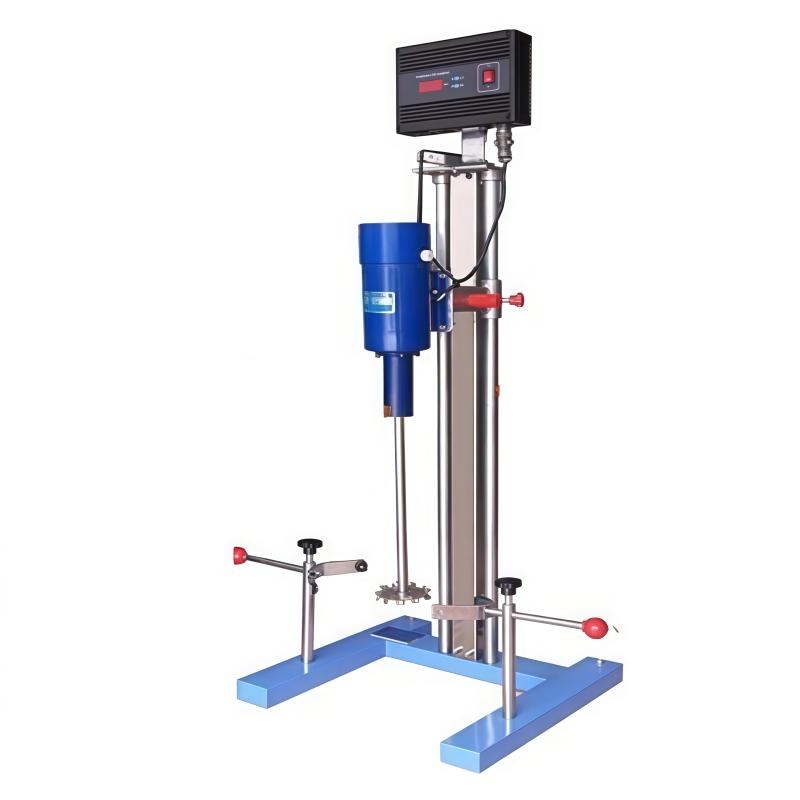

MUXUAN MXF-B1100 Small Batch Stirring Disperser is an economical Chinese equipment. It adopts a dual-axis constant force lifting system and a series rectifier motor. It realizes digital stepless speed regulation through a smart motor speed controller. The application of digital PID technology ensures high control accuracy and can directly display the rotating shaft Rotation speed. The equipment can realize dispersion, stirring and mixing functions and is widely used in coatings, inks, colorants, dyestuff, pesticides, cosmetics and other industries.
Features
1. High dispersion efficiency, stable product quality: The maximum Rotation speed of the equipment is 8000rpm, the maximum linear speed is 41m/s, which can quickly and evenly disperse the powder into the liquid material, the material is subject to extremely high shear force, uniform dispersion and good suspension effect.
2. Easy to operate, easy to clean: equipped with locking and lifting handle, fast lifting and fixing; dispersion disc is fixed with hexagonal bolts, easy to disassemble, replace and clean; with barrel clamping device, quickly fix the mixing barrel to prevent displacement and safety accidents.
Principle
Through the high-speed operation of the dispersion disc, the material is in an annular flow, generating strong vortices and spiraling down to the bottom of the eddy current. Strong shear impact and friction are generated between the particles, so as to realize the functions of rapid dispersion, dissolving, uniform mixing and emulsification.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Use the locking and lifting handle to adjust the height of the equipment.
2. Fix the mixing bucket through the bucket clamping device.
3. Start the device and set the required Rotation speed through the intelligent speed control instrument.
4. Perform dispersion, stirring, or mixing operations.
5. After the operation is completed, remove the dispersion disc for cleaning.
Notice
The maximum line speed of the equipment is recommended to be 20-25m/s.
• Ensure that the mixing drum is firmly fixed by the barrel clamping device to prevent displacement during work.
• Regularly check the dispersion disc and hexagon bolts to ensure fastening.
• Pay attention to safety during operation and avoid contact with high-speed running parts.
When cleaning equipment, make sure the power is disconnected.
