Overview

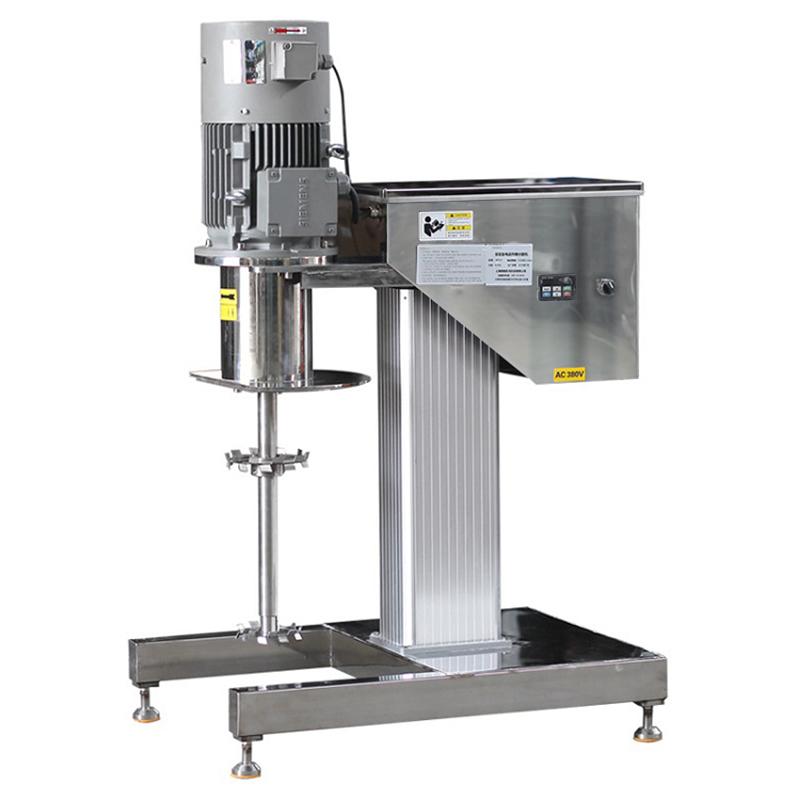

MXF-D1500F Small Batch Pilot Dispersion Stirrer is a new product designed by MUXUAN brand according to the actual needs of production. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks to provide correct data for large-scale production. It can also be used for small batch production. Processing capacity is 10-40L.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine.
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control.
3. Electric lifting mode, light and convenient, low failure rate, casters at the bottom of the frame, easy to move.
Principle
The high-speed operation of the dispersion disc makes the material form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape, and generates a strong shear impact and friction between the particles, so as to achieve the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Place the material in the handling container.
2. Select the dispersion mixing head as required (standard 80/100mm, optional 60/120mm).
3. Use electric lift to adjust the position of dispersion disc.
4. Rotation speed (0-3000rpm) and timing are set through CPU digital display control.
5. Start the device for decentralized and mixed operations.
6. Turn off the device after completion and clean the dispersion disc.
Notice
The viscosity of the material shall not exceed 25,000 cps.
• Processing capacity is controlled within the range of 10-40L.
• Make sure the equipment is placed on a smooth surface to prevent it from tipping over when moving.
• Check whether the lifting system and motor are running normally before operation.
• Clean in time after use to avoid material residues affecting performance.
