Overview

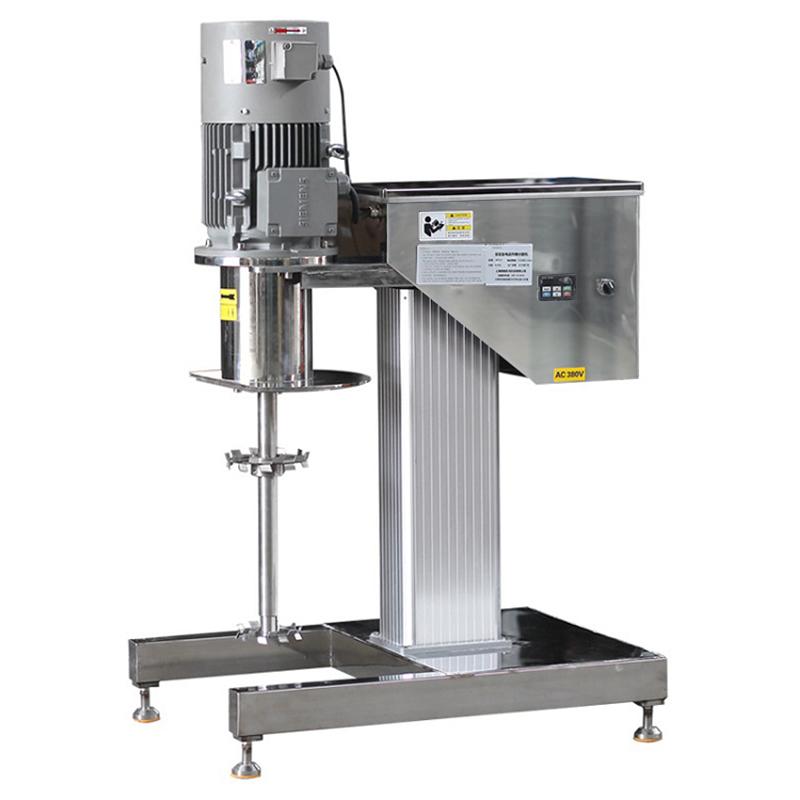

MUXUAN MXF-D2200F Small Batch Pilot Dispersion Stirrer is a new type of product designed according to the actual needs of production. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks to provide correct data for large-scale production. It can also be used for small batch production. Processing capacity is 10-40L.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control
3. Electric lifting method, light and convenient, low failure rate, casters at the bottom of the frame, easy to move
Principle
The high-speed operation of the dispersion disc makes the material form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape, and generates a strong shear impact and friction between the particles, so as to achieve the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Standards
explosion-proof standard
Steps
1. Choose the appropriate parameters according to the material viscosity (≤ 25000 cps) and Processing capacity (10-40L)
2. Set the CPU digital display dynamic Rotation speed control to achieve timing and constant speed operation
3. Use the electric lifting function to adjust the position of the dispersing stirring head
4. Start the device for decentralized and mixed operations
Notice
• Material viscosity must not exceed 25000 cps
• Processing capacity is controlled within the range of 10-40L
• Ensure that the equipment is used in an explosion-proof environment
• Regularly check the electric lift system
• Pay attention to the safety of the bottom casters when moving the device
