Overview

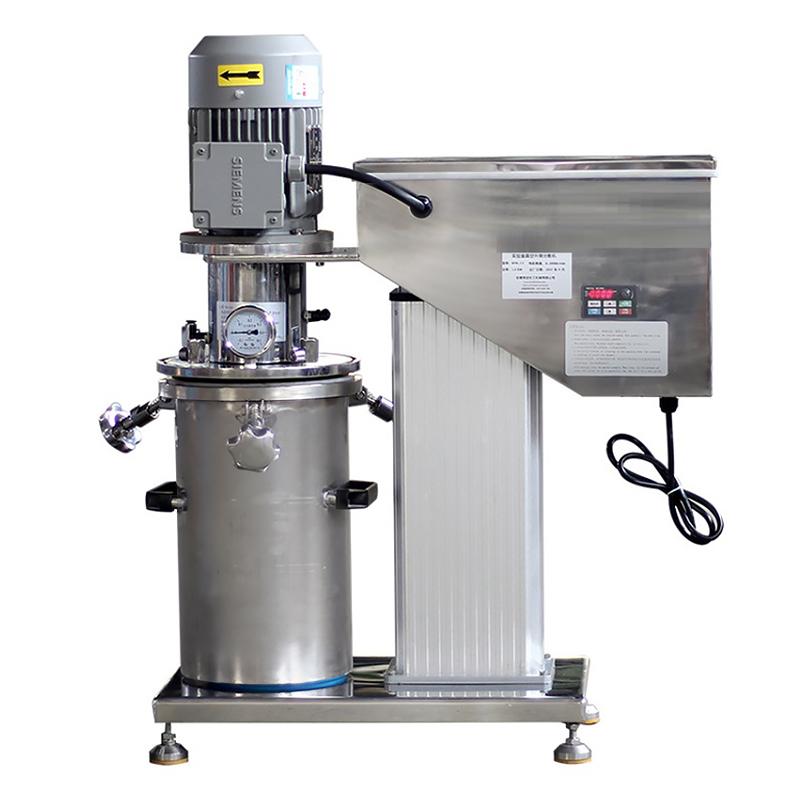

MUXUAN MXF-Z750 Vacuum Sealed Dispersion Stirrer is a new type of experimental equipment designed according to the actual needs of production. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It can provide correct data for large-scale production and can also be used for small batch production. Processing capacity is 10-40L.
Features
1. High-performance motor, low noise, smooth operation, ensuring high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control
3. Electric lifting method, light and convenient, low failure rate, casters at the bottom of the frame, easy to move
4. High dispersion efficiency, maximum Rotation speed 3000rpm, maximum linear speed 33m/s, can quickly and evenly disperse materials
5. Double-end sealing structure, vacuum sealing defoaming effect is good
6. The dispersion disc is fixed with hexagon bolts and spindle, which is convenient for quick disassembly and replacement, and easy to clean
7. Lock sealing strip device can quickly fix the sealing barrel
Principle
The high-speed operation of the dispersion disc makes the material form an annular flow, generating a strong vortex and spiraling down to the bottom of the eddy current, generating a strong shear impact and friction between the particles, so as to achieve the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Put the material into the sealing bucket
2. Use the lock sealing strip device to quickly fix the sealing bucket
3. Rotation speed and timing parameters are set through the CPU digital display control panel
4. Start the electric lifting device to adjust the position of the dispersion disc
5. Start the equipment for dispersion mixing operation
6. After completion, use the electric lifting device to raise the dispersion disc
7. Remove dispersion disc for cleaning
Notice
• Material viscosity must not exceed 25000 cps
• It is recommended that the conventional linear speed be controlled within the range of 20-25m/s
• Make sure the sealing bucket is firmly fixed before use
• Regularly check whether the dispersion disc fixing bolt is loose
• Pay attention to caster Stability when moving equipment
• Power should be cut off when cleaning
