Overview

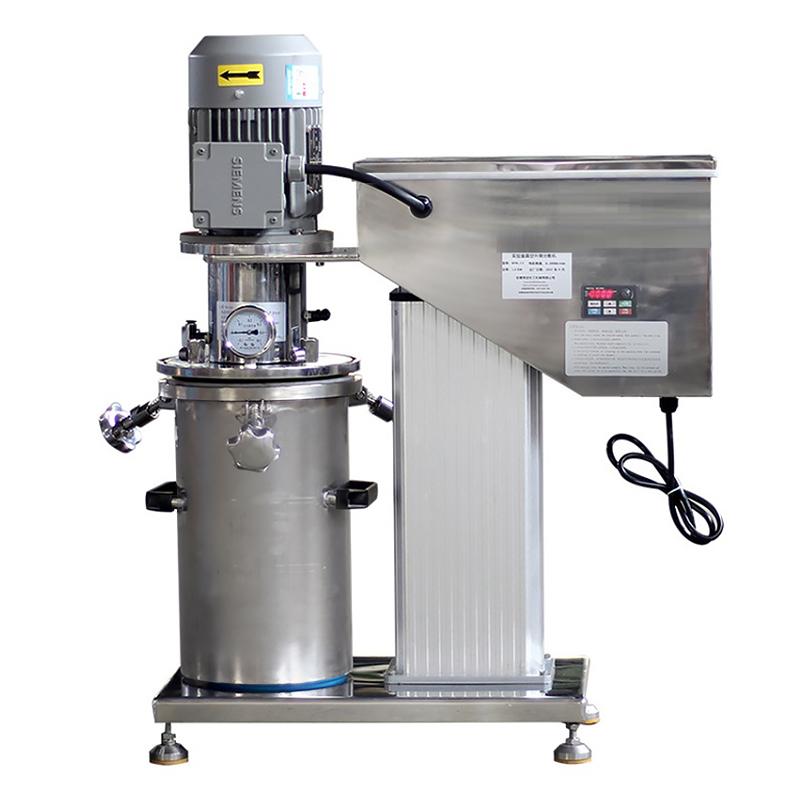

MUXUAN MXF-Z750F Vacuum Sealed Disperse Stirrer is a new type of product designed according to actual production needs. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It provides correct data for large-scale production and can also be used for small batch production. The product can disperse 5-10L of materials.
Features
1. High-performance motor, low noise, smooth operation, ensuring high-quality machine
2. CPU digital display Dynamic Rotation speed control, support timing fixed speed operation, intelligent control of the whole machine
3. Electric lifting method, light and convenient, low failure rate, casters at the bottom of the frame for easy movement
4. High dispersion efficiency, maximum Rotation speed 3000rpm, maximum linear speed 33m/s, fast and uniform dispersion of materials
5. Double-end sealing structure, vacuum sealing defoaming effect is good
6. Easy and safe operation, quick lifting and fixing sealing barrel, easy disassembly, replacement and cleaning of dispersion disc
7. Lock sealing strip device to quickly fix the sealing bucket
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating a strong vortex and spiraling down to the bottom of the eddy current. Strong shear impact and friction are generated between the particles, which realizes the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Put the material into the sealing bucket
2. Use the lock sealing strip device to quickly fix the sealing bucket
3. Rotation speed and time parameters are set by CPU digital display control
4. Start the electric lifting device to locate the dispersion disc
5. Turn on the equipment for dispersion mixing operation
6. After completion, electric lifting dispersion disc, disassembly and cleaning
Notice
• Material viscosity must not exceed 25000 cps
• Processing capacity range of 5-10L
• Conventional recommended linear speed is 20-25m/s
• The dispersion disc is fixed with hexagon bolts and needs to be installed correctly
The equipment has explosion-proof function and needs to be used in the applicable environment
