Overview

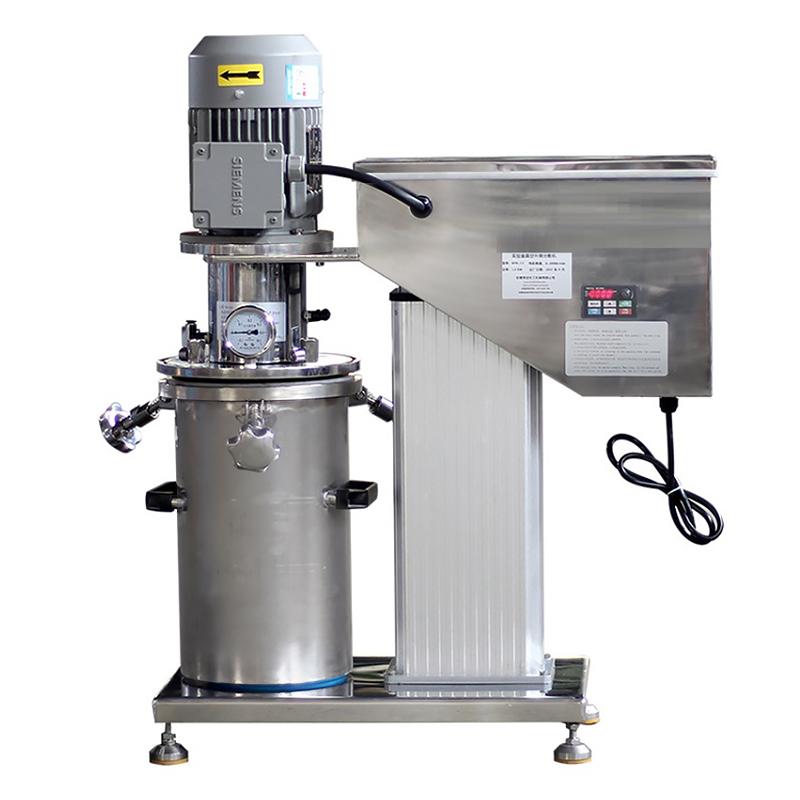

MUXUAN MXF-Z1100F Vacuum Sealed Dispersion Stirrer is a new type of product designed according to the actual needs of production. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It can provide correct data for large-scale production and can also be used for small batch production. Processing capacity is 10-20L.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control
3. Electric lifting method, light and convenient, low failure rate, casters at the bottom of the frame, easy to move
4. High dispersion efficiency, good product quality, maximum Rotation speed up to 3000rpm, maximum linear speed up to 33m/s
5. Easy to operate, safe, with electric lift, low noise, dispersion disc is fixed with hexagon bolts, easy to disassemble and replace quickly, easy to clean
6. Equipped with double-end sealing structure, vacuum sealing defoaming effect is very good
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape. Strong shear impact and friction are generated between the particles, achieving the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Dispersion and mixing of materials for biological, food, paint, inks, Adhesive, dyestuff, pesticide and other industries
Steps
1. Quickly fix the sealing bucket through the locking sealing strip device
2. Use the electric lifting function to quickly lift and fix the sealing bucket
3. Rotation speed control through CPU digital display Set the required Rotation speed and timing
4. Start the equipment for dispersion mixing operation
5. After the operation is completed, remove the dispersion disc for cleaning
Notice
• Material viscosity should be ≤ 25000 cps
• Conventional recommended linear speed is 20-25m/s
• The dispersion disc is fixed with hexagon bolts, and corresponding tools are required when disassembling
• Equipment with explosion-proof function, suitable for relevant explosion-proof requirements
• Non-standard customization can be made according to needs
