Overview

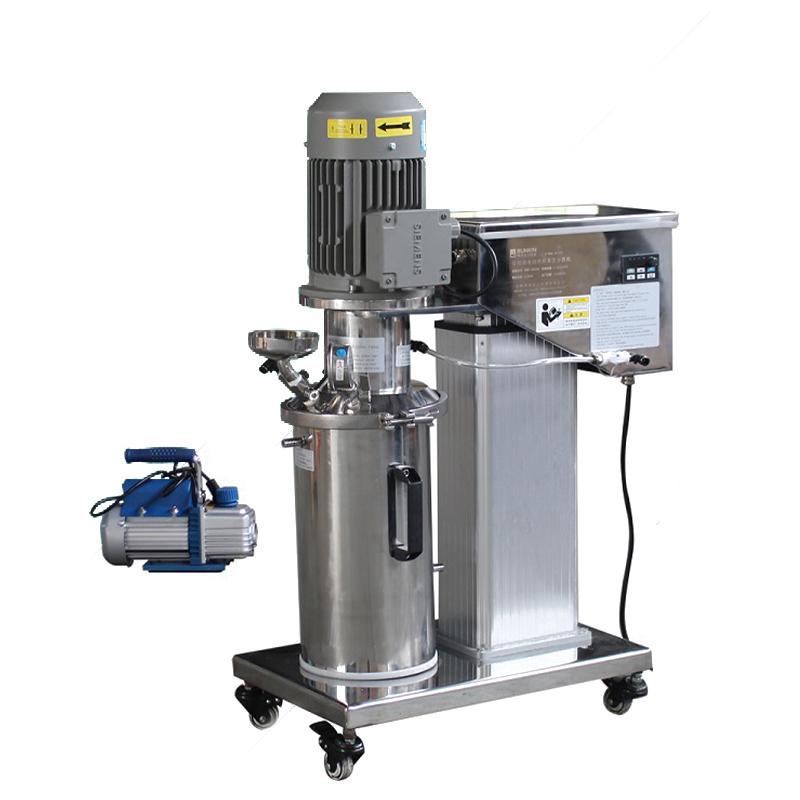

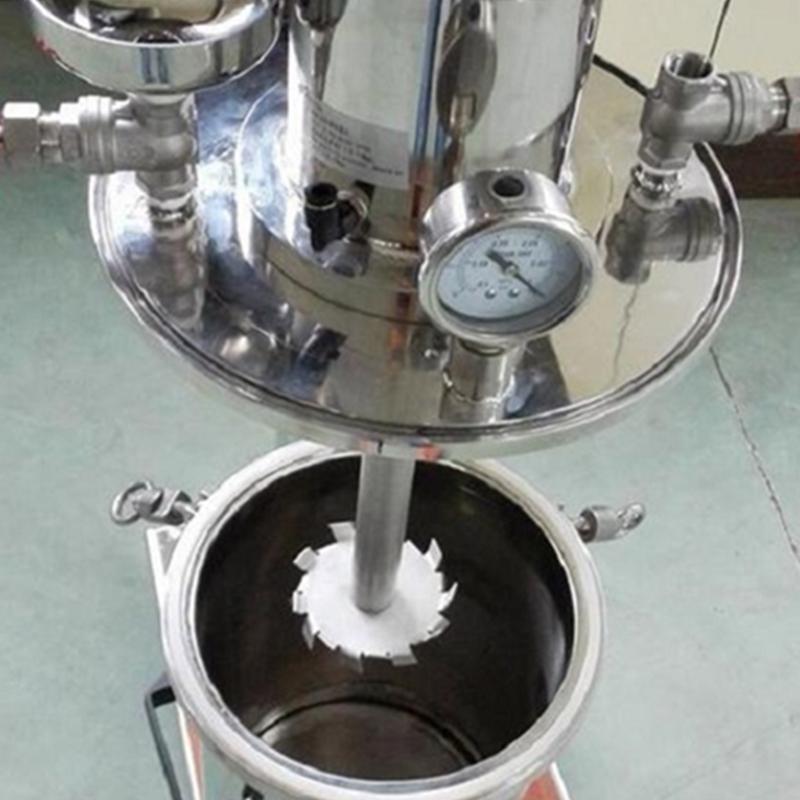

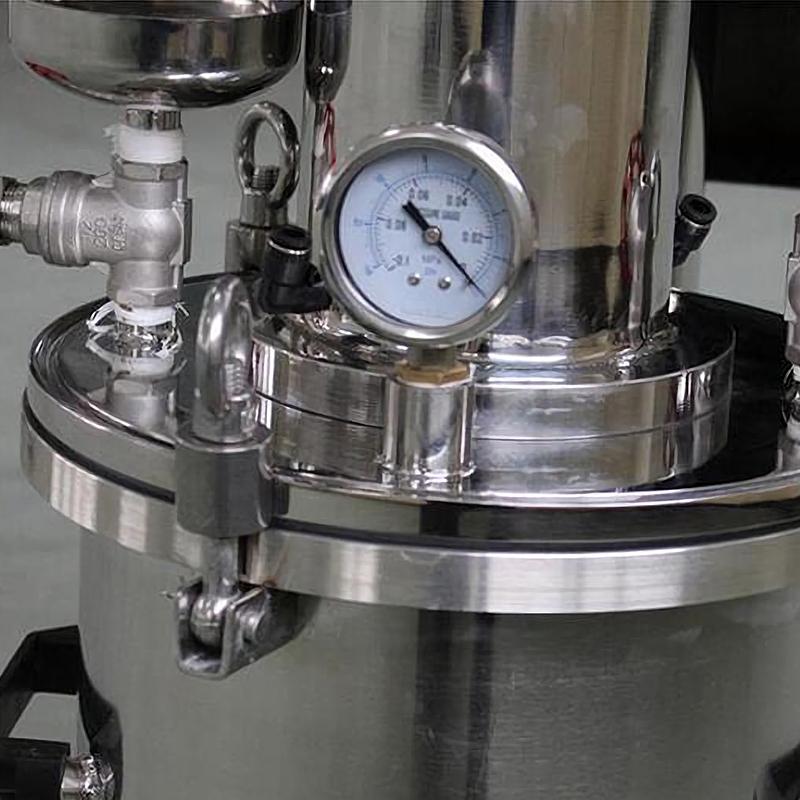

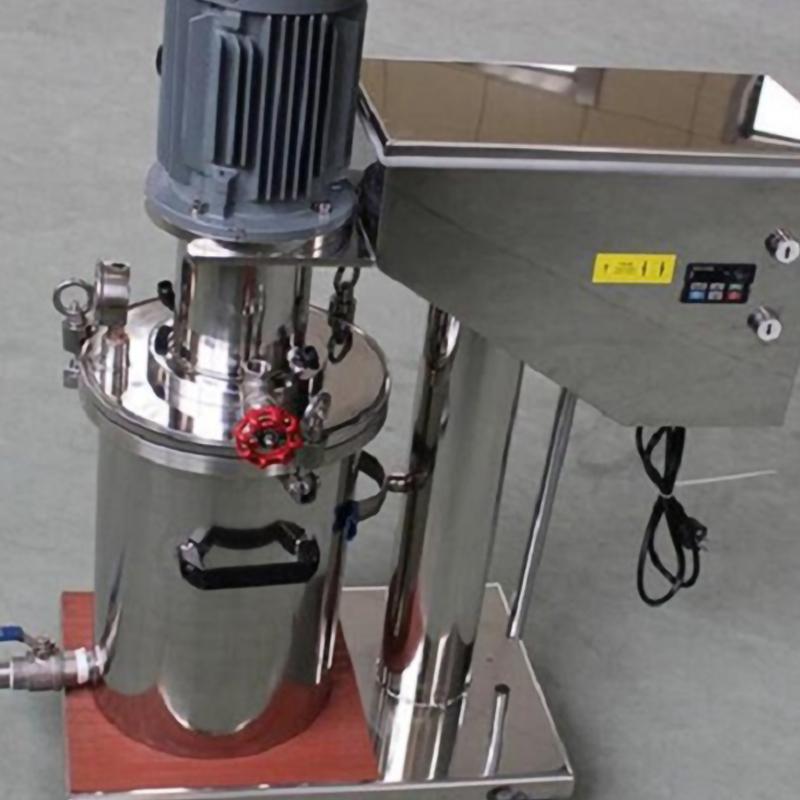

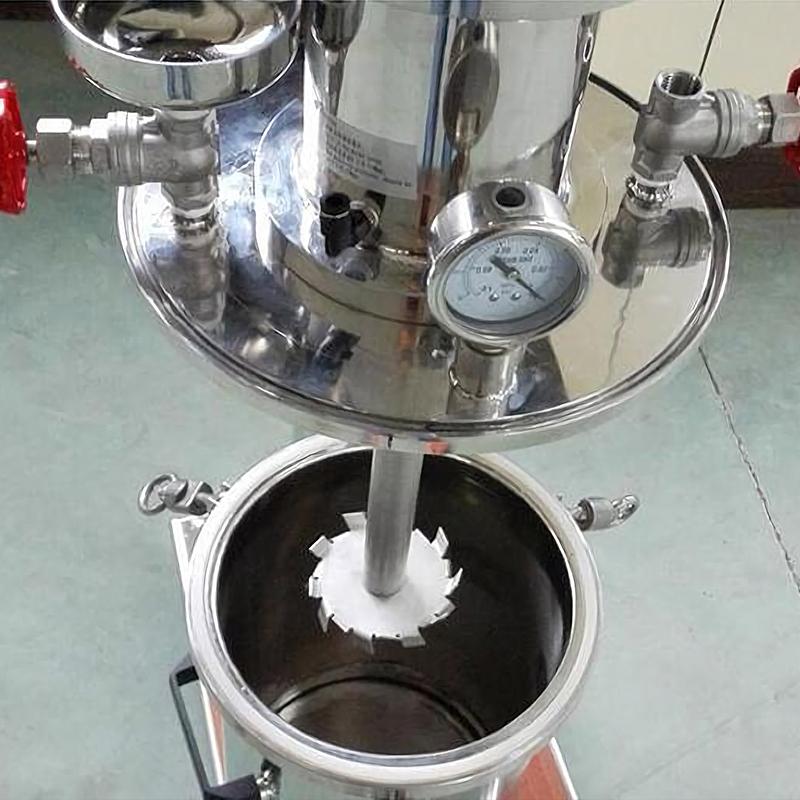

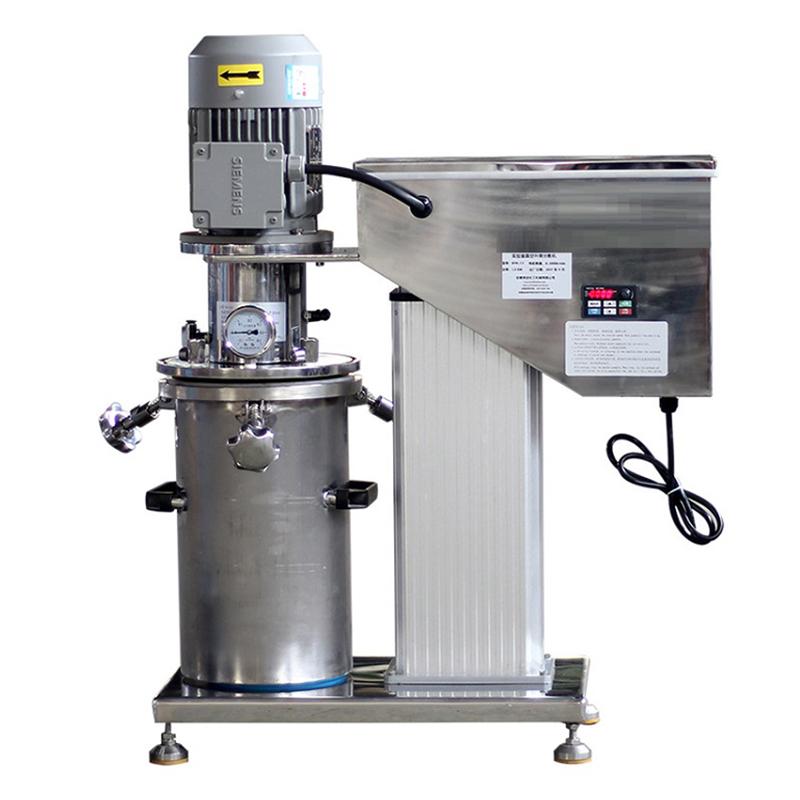

MUXUAN MXF-Z1500 Vacuum Sealed Dispersion Stirrer is a new type of product designed according to the actual needs of production. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It provides correct data for large-scale production and can also be used for small batch production. Processing capacity is 10-40L.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control
3. Electric lifting method, light and convenient, low failure rate, casters at the bottom of the frame, easy to move
4. High dispersion efficiency, good product quality, maximum Rotation speed up to 3000rpm, maximum linear speed up to 33m/s
5. Easy and safe operation, with electric lifting, low noise, fast lifting and fixed sealing bucket
6. The dispersion disc is fixed with hexagon bolts and spindle, which is convenient for quick disassembly and replacement, and easy to clean
7. Equipped with double-end sealing structure, vacuum sealing defoaming effect is very good
8. With a locking sealing strip device, you can quickly fix the sealing bucket
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape, and generates a strong shear impact and friction between the particles to achieve the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Fix the sealing bucket under the device
2. Adjust the dispersion disc position by electric lifting device
3. Set CPU Digital Display Dynamic Rotation speed control parameters
4. Start the equipment for dispersion mixing operation
5. After the operation is completed, lift the dispersion disc by electric lift
6. Remove dispersion disc for cleaning
Notice
• Material viscosity should be ≤ 25000 cps
• Conventional recommended linear speed is 20-25m/s
• Make sure the sealing bucket is firmly fixed before use
• Regularly check dispersion disc fixing bolts
• Pay attention to safety protection during operation
• Pay attention to stability when moving the device
