Overview

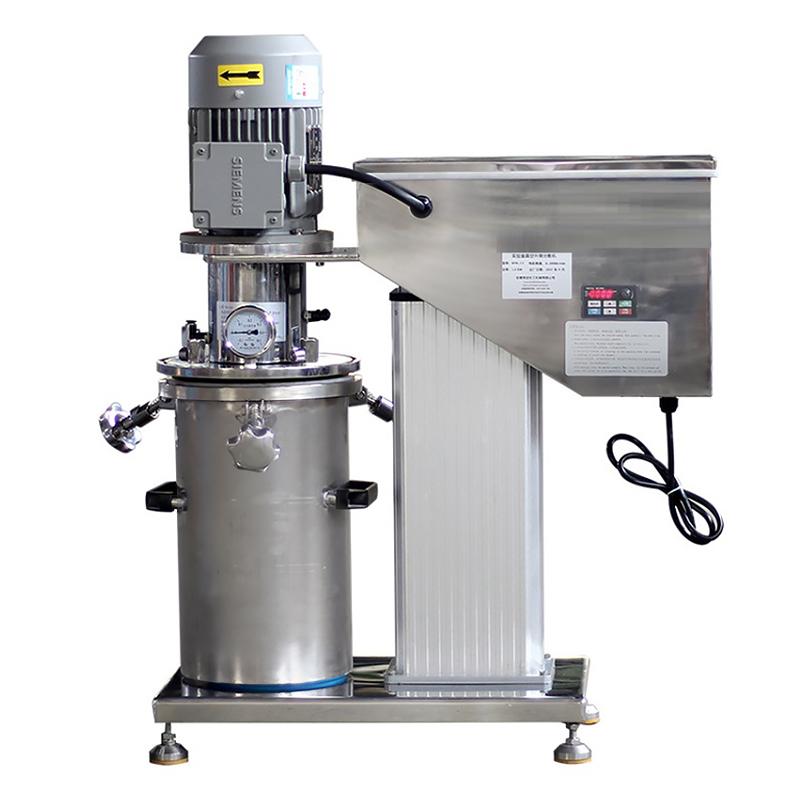

MUXUAN MXF-Z2200F Vacuum Sealed Dispersion Stirrer is a new type of product designed according to the actual needs of production. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It provides correct data for large-scale production and can also be used for small batch production. Processing capacity is 10-40L.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control
3. Electric lifting method, light and convenient, low failure rate, casters at the bottom of the frame, easy to move
4. High dispersion efficiency, good product quality, maximum Rotation speed up to 3000rpm, maximum linear speed up to 33m/s
5. Easy to operate, safe, with locking sealing strip device, can quickly fix the sealing barrel
6. Double-end sealing structure, vacuum sealing defoaming effect is good
7. The dispersion disc is fixed with hexagon bolts and spindle, which is convenient for quick disassembly and replacement, and easy to clean
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape. Strong shear impact and friction are generated between the particles, achieving the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Put the material into the sealing bucket
2. Use the lock sealing strip device to quickly fix the sealing bucket
3. Adjust the dispersion disc position through the electric lifting system
4. Set CPU Digital Display Dynamic Rotation speed Control system parameters
5. Start the equipment for dispersion mixing operation
6. After the operation is completed, remove the dispersion disc for cleaning
Notice
• Material viscosity should be ≤ 25000 cps
• Conventional recommended linear speed is 20-25m/s
• Make sure the sealing bucket is firmly fixed before use
• Regularly check dispersion disc fixing bolts
• Pay attention to the running status of the equipment during operation
• Power should be cut off when cleaning
