Overview

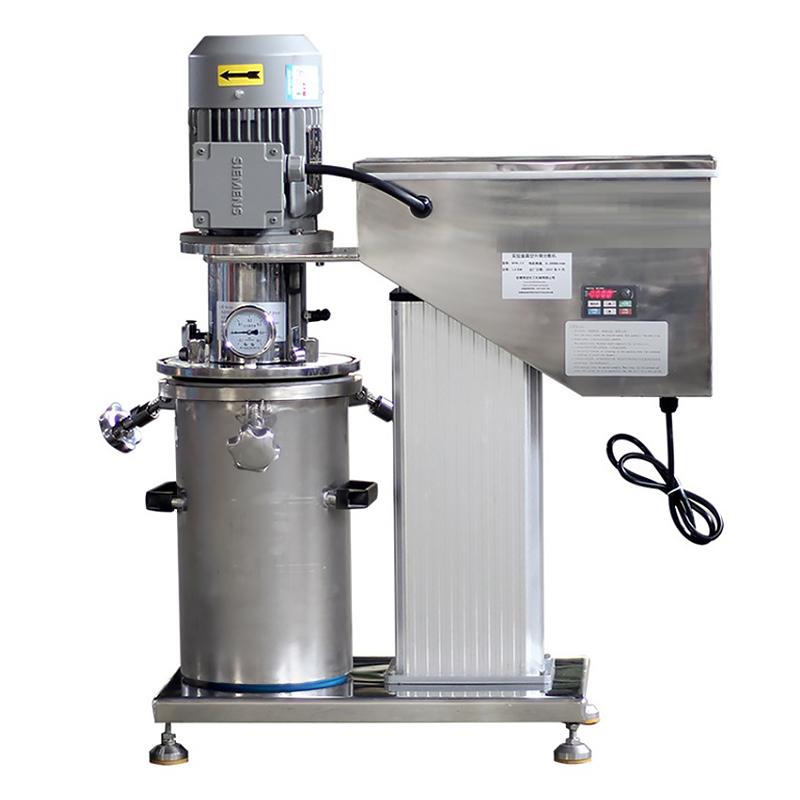

MXF-Z3000 Vacuum Closed Disperse Stirrer is a new experimental equipment designed by MUXUAN brand according to the actual production needs. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It can provide correct data for large-scale production and can also be used for small batch production. Processing capacity is 10-40L.
Features
1. High-performance motor, low noise, smooth operation, ensuring high-quality machine
2. CPU digital display Dynamic Rotation speed control, support timing fixed speed operation, intelligent control of the whole machine
3. Electric lifting method, light and convenient, low failure rate, casters at the bottom for easy movement
4. High dispersion efficiency, maximum Rotation speed 3000rpm, maximum linear speed 33m/s, fast and uniform dispersion of materials
5. Double-end sealing structure, vacuum sealing defoaming effect is good
6. Easy and safe operation, quick disassembly and cleaning, quick fixing of sealing barrel by locking sealing strip device
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating strong vortices and spiraling down to the bottom of the eddy current, generating strong shear impact and friction between the particles, and realizing the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Put the material into the sealing bucket
2. Use the lock sealing strip device to quickly fix the sealing bucket
3. Rotation speed and timing parameters are set by CPU digital display
4. Start the electric lifting device to adjust the position of the dispersion disc
5. Turn on the equipment for dispersion mixing operation
6. Remove dispersion disc for cleaning after completion
Notice
• Material viscosity should be ≤ 25000 cps
• Conventional recommended linear speed 20-25m/s
• Make sure the sealing bucket is firmly fixed before use
• Regularly check dispersion disc fixing bolts
• Pay attention to safe operation when cleaning
