Overview

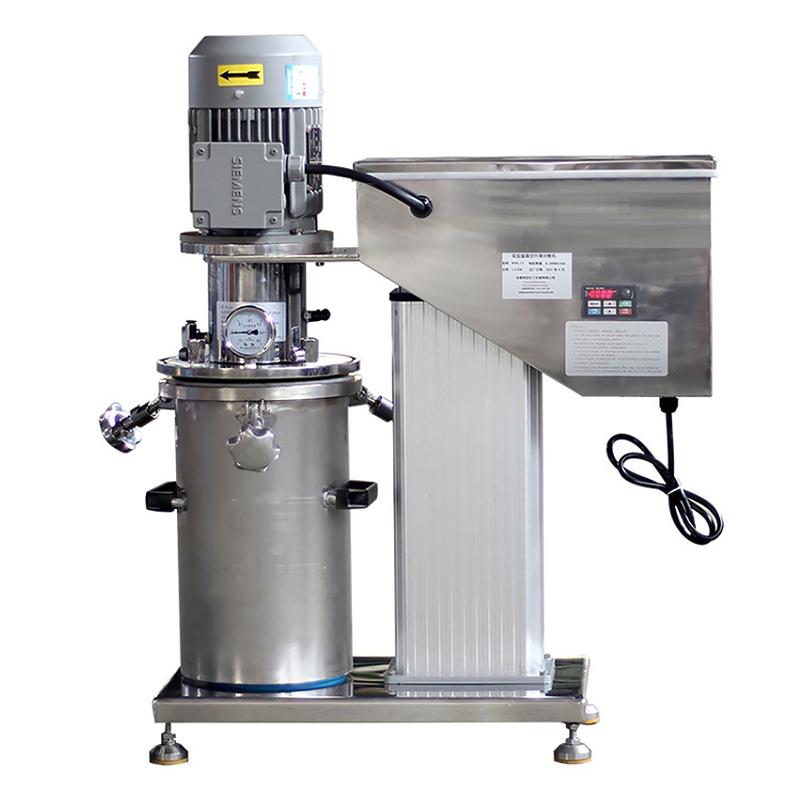

MUXUAN MXF-Z3000F Vacuum Sealed Dispersion Stirrer is a new type of product designed according to actual production needs. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It provides correct data for large-scale production and can also be used for small batch production. The product can disperse 10-40L of material.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control
3. Electric lifting method, light and convenient, low failure rate, casters at the bottom of the frame, easy to move
4. High dispersion efficiency, good product quality, maximum Rotation speed up to 3000rpm, maximum linear speed up to 33m/s
5. Easy to operate, safe, with electric lift, low noise, dispersion disc is fixed with hexagon bolts, easy to disassemble and replace quickly, easy to clean
6. Equipped with double-end sealing structure, vacuum sealing defoaming effect is good
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape. Strong shear impact and friction are generated between the particles, achieving the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Quickly fix the sealing bucket through the locking sealing strip device
2. Use the electric lifting function to quickly lift and fix the sealing bucket
3. Set timing constant speed parameters through CPU digital display Dynamic Rotation speed Control system
4. Start the equipment for dispersion mixing operation
5. Remove dispersion disc for cleaning after completion
Notice
• Material viscosity should be ≤ 25000 cps
• Conventional recommended linear speed is 20-25m/s
• Make sure the sealing bucket is firmly fixed before use
• Regularly check dispersion disc fixing bolts
• Pay attention to the explosion-proof characteristics of the equipment to ensure a safe operating environment
