Overview

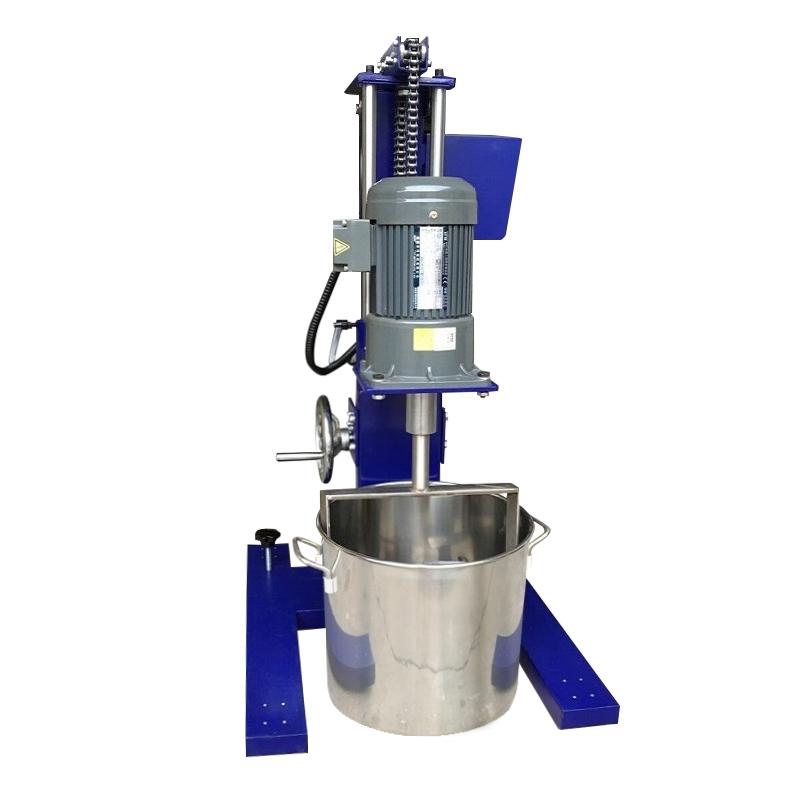

MXF-E1100 Low Speed Powerful Laboratory and Pilot Electric Stirrer is a new product designed by the MUXUAN brand according to the actual production needs. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It provides correct data for large-scale production and can also be used for small batch production. Processing capacity is 10-40L.
Features
1. High-performance motor, low noise, smooth operation, ensuring high-quality machine.
2. CPU digital display Dynamic Rotation speed control, support timing fixed speed operation, realize intelligent control.
3. Electric lifting mode, light and convenient, low failure rate, casters at the bottom of the frame, easy to move.
4. High dispersion efficiency, maximum Rotation speed 3000rpm, maximum linear speed 33m/s, fast and uniform dispersion of materials, forming a good suspension effect.
5. Double-end sealing structure, vacuum sealing defoaming effect is good.
6. Easy to operate and safe, the dispersion disc is fixed with hexagonal bolts, quick disassembly and replacement, easy cleaning; the locking sealing strip device quickly fixes the sealing barrel.
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating strong vortices and spiraling down to the bottom of the eddy current, generating strong shear impact and friction between the particles, and realizing the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Move the device to a suitable location to ensure stability.
2. Connect the power supply and turn on the CPU Digital Control system.
3. Rotation speed and timing parameters.
4. Use the electric lifting function to adjust the position of the dispersion disc and fix the sealing bucket.
5. Start the device for decentralized operation.
6. After the operation is completed, turn off the equipment and remove the dispersion disc for cleaning.
Notice
The viscosity of the material should not exceed 25,000 cps.
• Processing capacity range is 10-40L to avoid overload.
• Ensure that the sealing barrel is firmly fixed during operation to prevent leakage.
• Regularly check the dispersion disc and sealing structure to ensure normal operation.
• Pay attention to safety when moving the equipment to avoid collisions.
