Overview

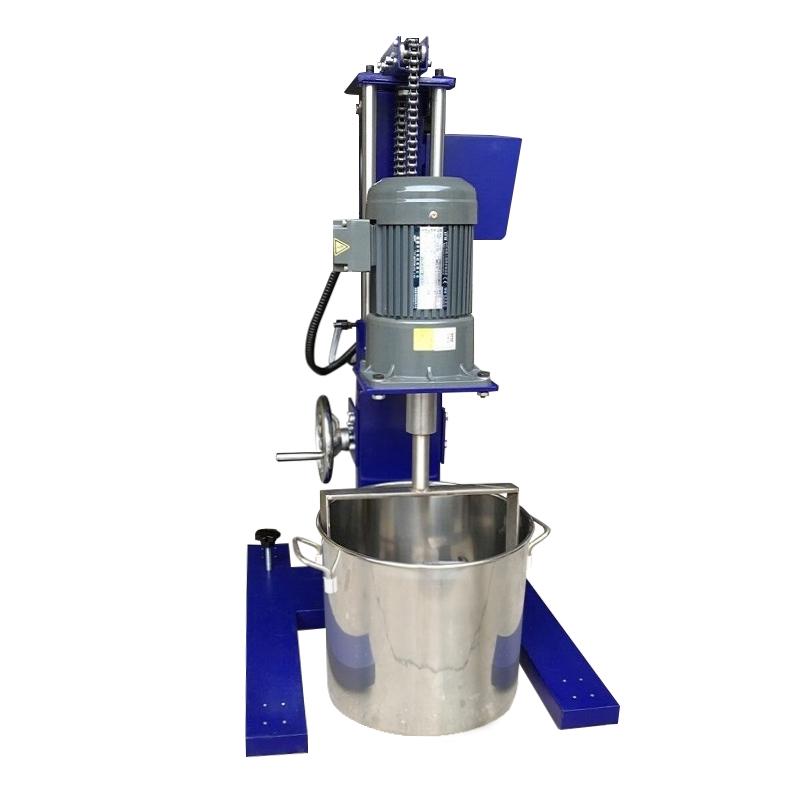

MXF-E1500 Low Speed Powerful Laboratory and Pilot Electric Stirrer is a new type of product designed according to the actual needs of production. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It can provide correct data for large-scale production and can also be used for small batch production. Processing capacity is 10-40L.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control
3. Electric lifting method, light and convenient, low failure rate, casters at the bottom of the frame, easy to move
4. High dispersion efficiency, good product quality, maximum Rotation speed up to 3000rpm, maximum linear speed up to 33m/s
5. Easy and safe operation, low noise, fast lifting and fixing sealing barrel, dispersion disc is fixed with hexagonal bolts, which is convenient for quick disassembly, replacement and cleaning
6. Equipped with double-end sealing structure, vacuum sealing defoaming effect is very good
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape. Strong shear impact and friction are generated between the particles, achieving the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Dispersion and mixing of materials for biological, food, paint, inks, Adhesive, dyestuff, pesticide and other industries
Steps
1. Move the device to the appropriate location
2. Install the appropriate dispersion disc
3. Rotation speed and timing parameters
4. Put the material into the sealing bucket
5. Start the equipment to disperse and stir
6. Complete the reverse speed shutdown
7. Disassemble and clean dispersion disc
Notice
• Material viscosity should be ≤ 25000 cps
• Conventional recommended linear speed is 20-25m/s
• Check whether all parts of the equipment are in good condition before use
• Pay attention to safety protection during operation
• Regular maintenance of equipment
• Pay attention to cutting off the power supply when cleaning
