Overview

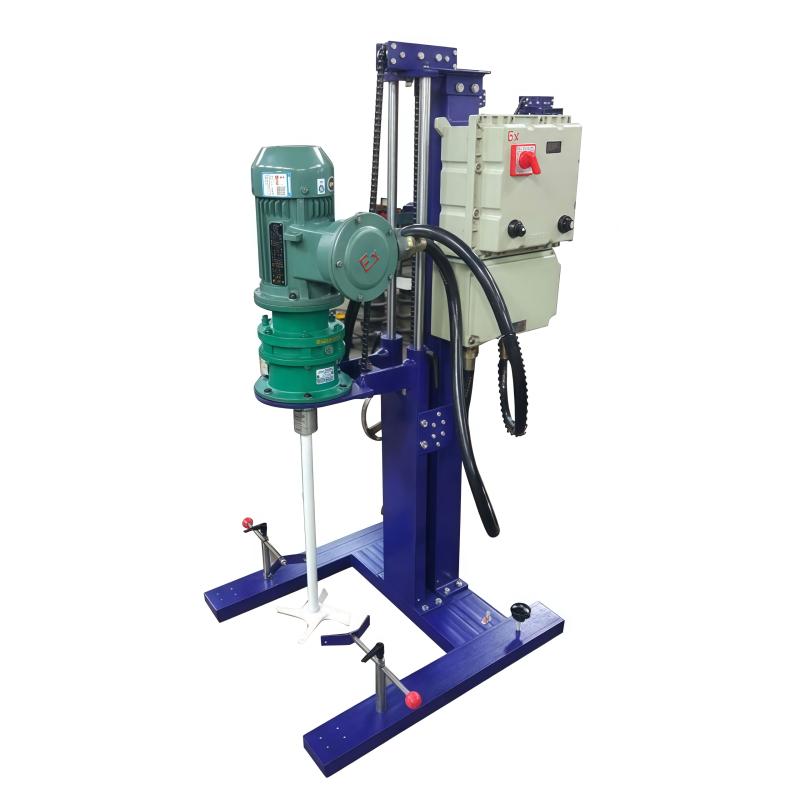

MXF-E550F Low Speed Powerful Laboratory and Pilot Electric Stirrer is a new product designed by MUXUAN brand according to the actual needs of production. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It provides correct data for large-scale production and can also be used for small batch production. Processing capacity is 10-40L.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control
3. Electric lifting method, light and convenient, low failure rate, casters at the bottom of the frame, easy to move
4. High dispersion efficiency, good product quality, maximum Rotation speed up to 3000rpm, maximum linear speed up to 33m/s
5. Easy and safe operation, equipped with double-end sealing structure, vacuum sealing defoaming effect is good
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape. Strong shear impact and friction are generated between the particles, achieving the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Use electric lift to quickly lift and fix the sealing bucket
2. Fix the dispersion disc and spindle with hexagon bolts, which is convenient for quick disassembly and replacement
3. Use the lock sealing strip device to quickly fix the sealing bucket
4. Set the CPU digital display dynamic Rotation speed control to achieve timing and constant speed operation
Notice
• Material viscosity should be ≤ 25000 cps
• Conventional recommended linear speed is 20-25m/s
• Processing capacity of the equipment is 10-40L, please do not use beyond the range
• Pay attention to disassembling the dispersion disc when cleaning to ensure thorough cleaning
