Overview

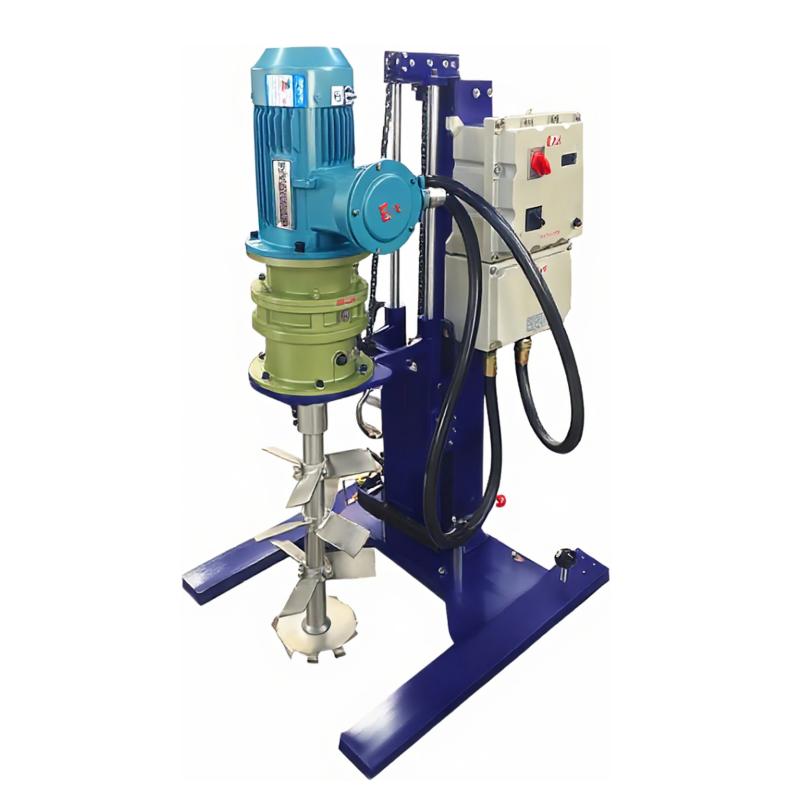

MXF-E750F Low Speed Powerful Laboratory and Pilot Electric Stirrer is a new product designed by the MUXUAN brand according to the actual production needs. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It provides correct data for large-scale production and can also be used for small batch production. Processing capacity is 10-40L.
Features
1. High-performance motor, low noise, smooth operation, ensuring high-quality machine.
2. CPU digital display Dynamic Rotation speed control, support timing fixed speed operation, realize intelligent control.
3. Electric lifting mode, light and convenient, low failure rate, casters at the bottom of the frame, easy to move.
4. High dispersion efficiency, maximum Rotation speed 3000rpm, maximum linear speed 33m/s, fast and uniform dispersion of materials, forming a good suspension effect.
5. Double-end sealing structure, vacuum sealing defoaming effect is good.
6. Convenient and safe operation, electric lifting quickly fixed sealing barrel, dispersion disc is fixed with hexagonal bolts, easy to disassemble, replace and clean, with a locking sealing strip device to quickly fix the sealing barrel.
Principle
The high-speed operation of the dispersion disc makes the material form an annular flow, generating a strong vortex and spiraling down to the bottom of the eddy current, generating strong shear impact and friction between the particles, so as to realize the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Dispersion and mixing of materials in biological, food, paint, inks, Adhesive, dyestuff, pesticide and other industries.
Steps
1. Use the electric lifting device to quickly lift and fix the sealing bucket.
2. Set timing and speed parameters through the CPU digital display control panel.
3. Start the equipment, the dispersion disc runs at high speed for material dispersion.
4. After the operation is completed, remove the dispersion disc for cleaning and maintenance.
Notice
The viscosity of the material should not exceed 25,000 cps.
• Processing capacity range is 10-40L to avoid overload.
• Pay attention to safety during operation and ensure that the sealing bucket is firmly fixed.
• Regularly check equipment components, such as dispersion discs and sealing structures, to ensure normal operation.
