Overview

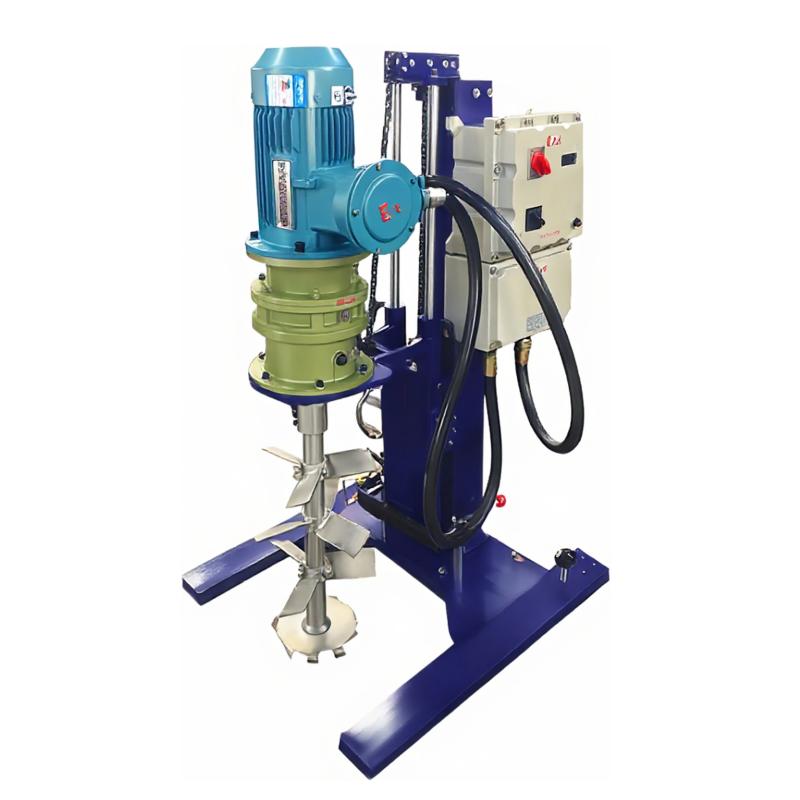

MXF-E1100F Low Speed Powerful Laboratory and Pilot Electric Stirrer is a new type of product designed according to the actual needs of production. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It provides correct data for large-scale production and can also be used for small batch production. Processing capacity is 10-40L.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control
3. Electric lifting method, light and convenient, low failure rate, casters at the bottom of the frame, easy to move
4. High dispersion efficiency, good product quality, maximum Rotation speed up to 3000rpm, maximum linear speed up to 33m/s
5. Easy and safe operation, quick lifting and fixed sealing barrel, dispersion disc is convenient for quick disassembly and replacement, easy cleaning
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape, and generates a strong shear impact and friction between the particles to achieve the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Put the material into the sealing bucket
2. Use the electric lifting device to adjust the position of the dispersion disc
3. Rotation speed and timing parameters are set through the CPU digital display control panel
4. Start the equipment for dispersion mixing operation
5. After completion, use the electric lifting device to raise the dispersion disc
6. Remove dispersion disc for cleaning
Notice
• Material viscosity should not exceed 25000 cps
• Recommended for conventional use, the linear speed is 20-25m/s
• Make sure the sealing bucket is firmly fixed before operation
• Regularly check the sealing structure of the double-end machine seal
• Pay attention to the safety of the bottom casters when moving the device
