Overview

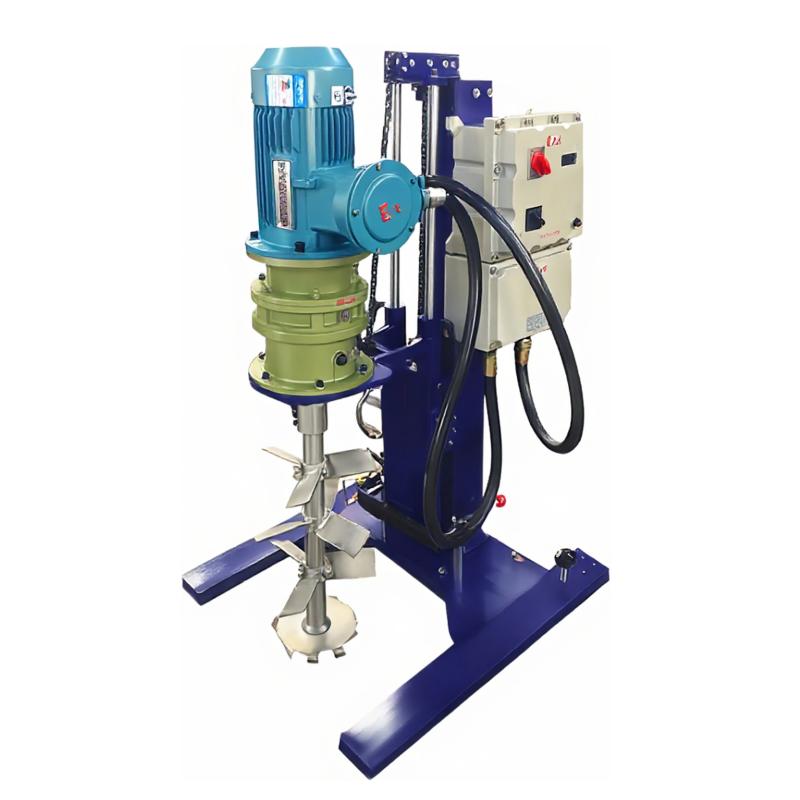

MXF-E1500F Low Speed Powerful Laboratory and Pilot Electric Stirrer is a new product designed by MUXUAN brand according to the actual needs of production. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It provides correct data for large-scale production and can also be used for small batch production. Processing capacity is 10-40L.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control
3. Electric lifting method, light and convenient, low failure rate, casters at the bottom of the frame, easy to move
4. High dispersion efficiency, good product quality, maximum Rotation speed 3000rpm, maximum linear speed 33m/s
5. Easy and safe operation, quick lifting and fixing sealing barrel, easy disassembly, replacement and cleaning of dispersion disc
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating strong vortices and spiraling down to the bottom of the eddy current, generating strong shear impact and friction between the particles, and realizing the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Put the material into the sealing bucket
2. Adjust the dispersion disc position by electric lifting device
3. Set CPU digital display Rotation speed and timing parameters
4. Start the equipment to disperse and stir
5. After completion, electric lifting dispersion disc, disassembly and cleaning
Notice
• Material viscosity should be ≤ 25000 cps
• Conventional recommended linear speed 20-25m/s
• Check the sealing structure before use to ensure the vacuum sealing effect
• Pay attention to the safety of the casters at the bottom of the frame when moving
• Regularly check dispersion disc fixing bolts
