Overview

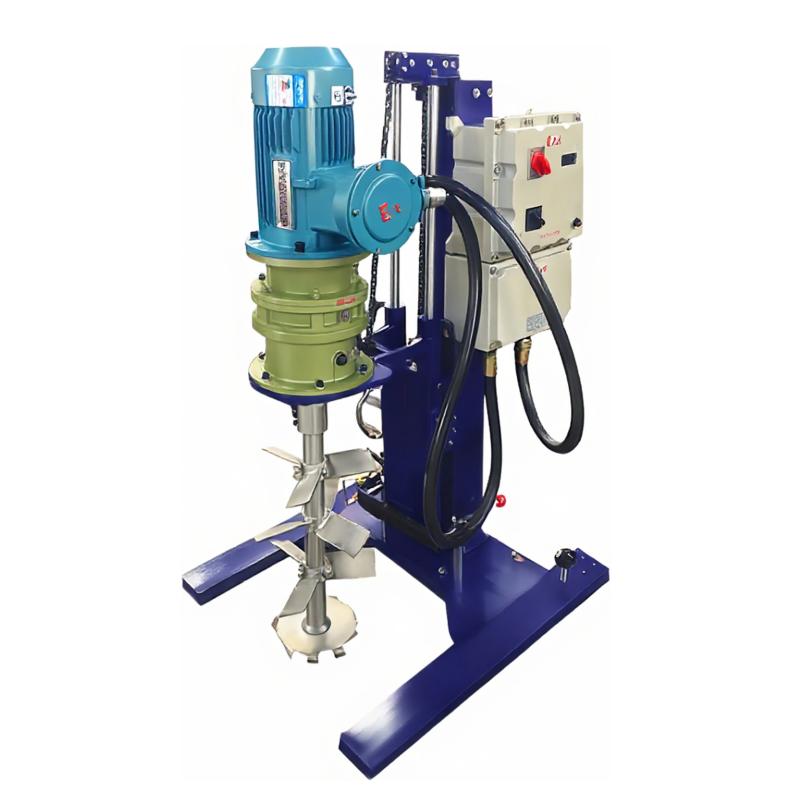

MXF-E2200F Low Speed Powerful Laboratory and Pilot Electric Stirrer is a new product designed by the MUXUAN brand according to the actual needs of production. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It provides correct data for large-scale production and can also be used for small batch production. Processing capacity is 10-40L.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control
3. Electric lifting method, light and convenient, low failure rate, casters at the bottom of the frame, easy to move
4. High dispersion efficiency, good product quality, maximum Rotation speed up to 3000rpm, maximum linear speed up to 33m/s
5. Easy and safe operation, with electric lift, low noise, dispersion disc is fixed with hexagon bolts, convenient for quick disassembly, replacement and cleaning
6. Equipped with double-end sealing structure, vacuum sealing defoaming effect is good
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape, and generates a strong shear impact and friction between the particles to achieve the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Put the material into the sealing bucket
2. Use the electric lifting device to quickly lift and fix the sealing bucket
3. Rotation speed and timing parameters are set by CPU digital display control
4. Start the equipment for dispersion mixing operation
5. After the operation is completed, remove the dispersion disc for cleaning
Notice
• Material viscosity should be ≤ 25000 cps
• Conventional recommended linear speed is 20-25m/s
• Make sure the sealing bucket is firmly fixed before use
• Regularly check the operating status of the equipment
• Pay attention to safe operation when cleaning
