Overview

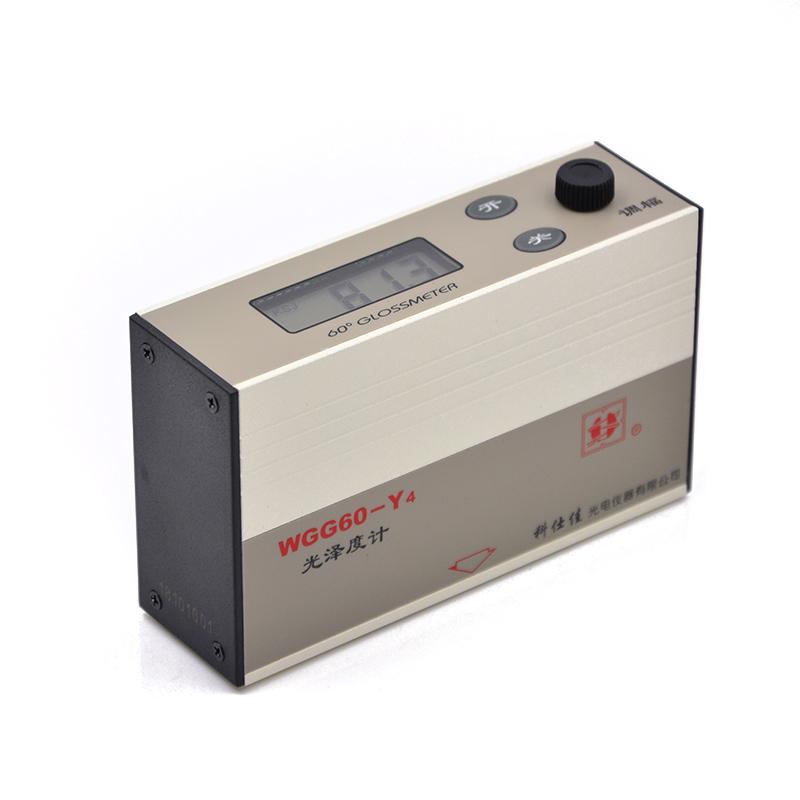

KSJ WGG60-Y4 Glossiness Meter is a Portable Glossiness Meter with a 36x18mm light spot size and a 60 ° projection angle. It is suitable for surface Gloss measurement of paints, paints, coatings, inks, etc. The range is 0.0~ 199.9GU. The instrument is palm size, easy to carry, and has a built-in rechargeable battery pack. It can be used for more than 24 hours on a full charge.
Features
1. Portable design, palm size, easy to carry
2. Built-in rechargeable battery pack, long battery life
3.36X18mm light spot size, 60 ° projection angle
4. Range range 0.0~ 199.9GU, Graduation 0.1GU
5.31/2 digit digital display, clear reading
Principle
The WGG60-Y4 Glossiness Meter illuminates the measured surface at a 60 ° projection angle, with a Measuring Area size of 36x18mm, detects the Glossiness of the surface reflection, and displays the measurement results in digital form, with a range of 0.0 to 199.9GU.
Applications
Paints, paints, coatings, inks, building decoration materials, marble, granite, vitrified polished tiles, ceramic tiles, plastics, paper, bamboo, Non-metallic materials, metal materials
Standards
ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Steps
1. Ensure that the instrument has sufficient power
2. Align the measurement port with the measured surface
3. Press the measurement button for measurement
4. Read the Glossiness value on the display
5. Record or save measurement results
Notice
• Make sure the battery is fully charged before use
• Keep the measurement port perpendicular to the measured surface during measurement
• Avoid use in a strong light environment
Periodically calibrate instruments to ensure measurement accuracy
• Use the designated charger when charging, Charging time 14~ 16 hours
• Avoid high temperature and humid environment when storing
