Overview

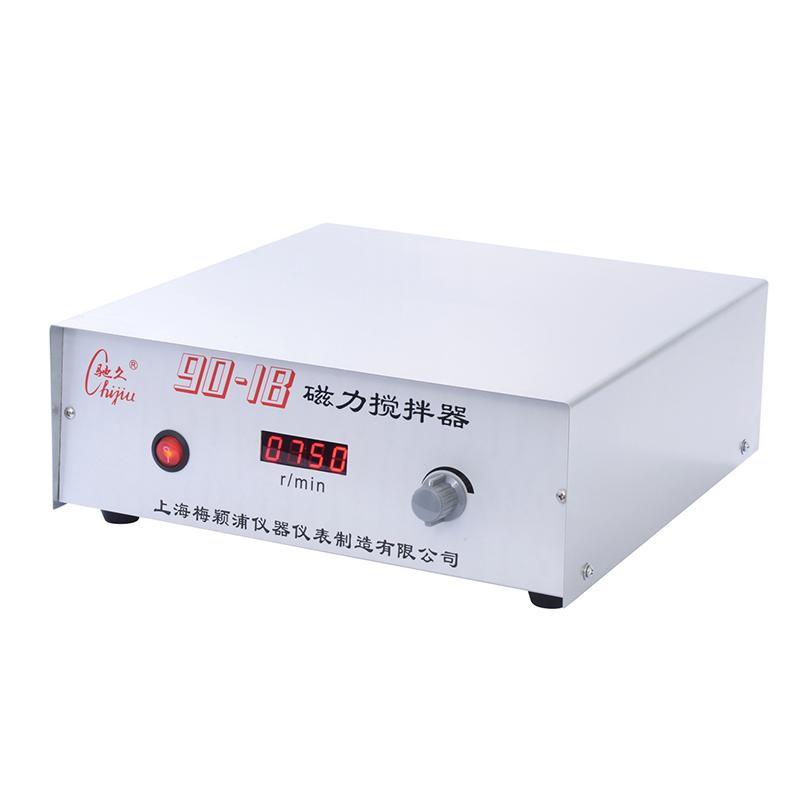

CHIJIU 90-1B Magnetic Stirrer is a large-capacity single-stirring Magnetic Stirrer, driven by brushless DC motor, Rotation speed is stable, large rotation distance, and has a digital display Rotation speed, strong magnetic force, strong structure, suitable for large-capacity stirring. The product has a stirring capacity of 20L and a stirring Speed range of 60~ 2000r/min.
Features
1. Driven by brushless DC motor, Rotation speed is stable and the rotation distance is large
2. Rotation speed with digital display, intuitive operation
3. Exceptionally strong magnetic force, suitable for large-capacity stirring
4. Sturdy structure, durable and reliable
5. Max. stirring Capacity up to 20L to meet large capacity needs
6. Wide stirring speed range, adjustable from 60 to 2000r/min
Principle

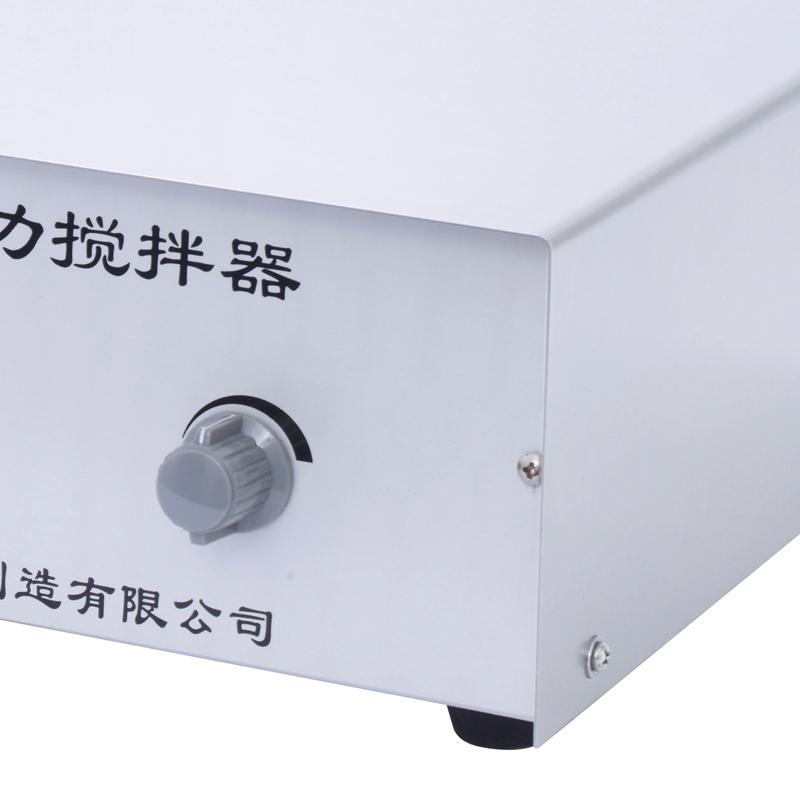

Magnetic Stirrer drives the internal magnet swirl/spin through a brushless DC motor to generate a swirl/spin magnetic field, which drives the stirrer placed in the container to synchronize the swirl/spin to realize the stirring and mixing of the liquid. The digital display shows the real-time Rotation speed, and the user can precisely adjust the stirring speed through the knob.
Applications
Laboratory, chemical, pharmaceutical, food, education and research
Steps

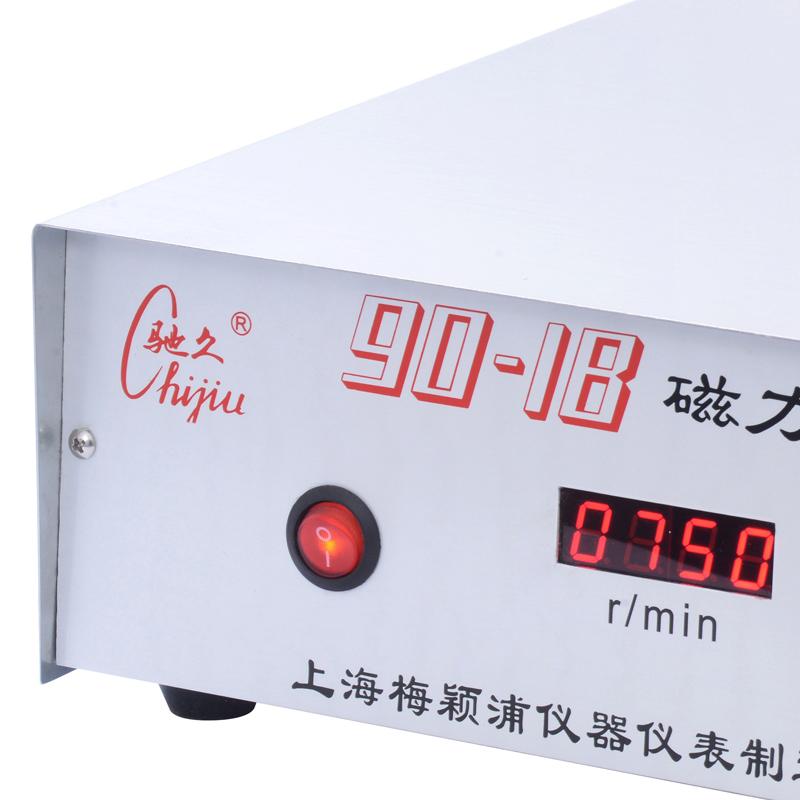

1. Test run: place the Stirrer smoothly, connect the power cord, plug in the power supply, turn on the power switch, the power indicator light is on, the digital display is "0000", adjust the knob clockwise, you can hear the motor in the machine from slow to fast running sound, digital indication Rotation speed, after the test turn is normal, the Rotation speed is adjusted to the lowest level and then shut down.
2. When using, place the container in the center of the Stirrer and put in the stirrer, so that the stirrer is in the center, then turn it on, adjust the knob, select the required stirring speed, and gradually accelerate or decelerate when adjusting the speed.
Notice
The power supply should be reliably grounded
• Stirrer face center φ 85mm can not concentrate to withstand large pressure
• The liquid in the container should not be overfilled to avoid overflow when stirring
• It is forbidden to put the stirrer directly on the Stirrer for trial operation
• Containers need to be made of non-ferromagnetic materials, and copper and aluminum containers should not be used as much as possible
• The bottom of the container needs to be smooth and the thickness should not exceed 10mm.
