Overview

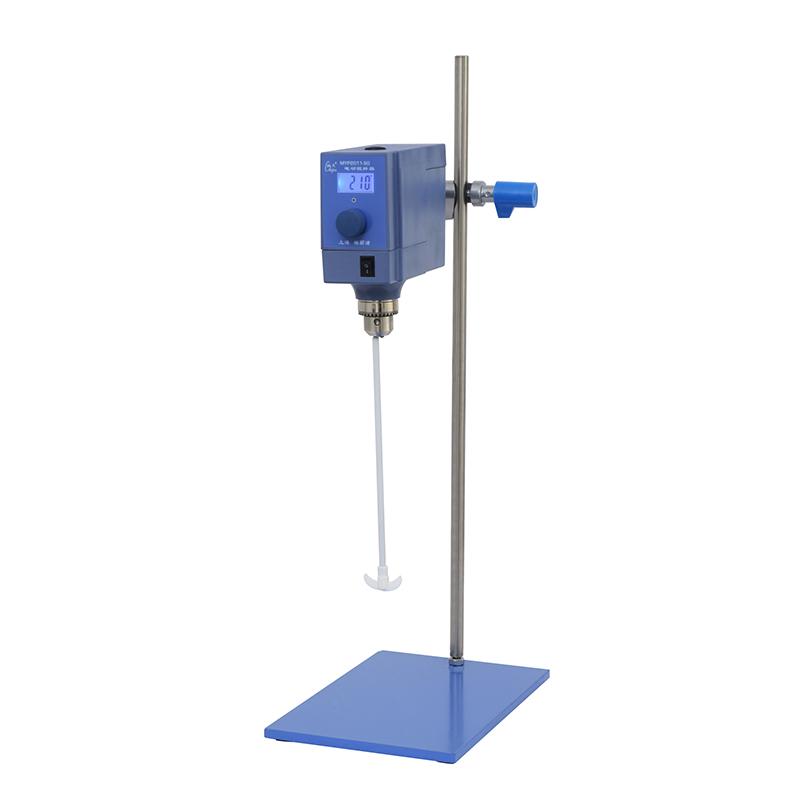

CHIJIU MYP 2011-50 powerbasic stirrer is a liquid crystal display electric Stirrer, driven by brushless DC motor, controlled by single chip microcomputer, closed-loop speed regulation, Rotation speed stability. The product adopts swirl/spin encoder operation, serial core Impeller, Speed stirring range is 60~ 1500rpm.
Features
1. Driven by a brushless DC motor
2. Single-chip microcomputer control, closed-loop speed regulation
3, LCD display Rotation speed
4, swirl/spin encoder operation
5. Serial Core Impeller Design
6. Rotation speed is stable and reliable
Principle
The MYP 2011-50 powerbasic stirrer is powered by a brushless DC motor and controlled by a single-chip microcomputer to realize the closed-loop speed regulation function and ensure the stability of Rotation speed. The operation control is carried out through the swirl/spin encoder, and the LCD screen displays the Rotation speed information in real time.
Steps
1. Rotation speed setting: swirl/spin knob, set the required Rotation speed (up clockwise, down counterclockwise)
2. Start and stop: Press the knob after the Rotation speed is set to start stirring; press the knob when the Stirrer is running to stop stirring
3. Rotation speed modification: During the stirring process, the swirl/spin knob can modify the set Rotation speed, and the actual Rotation speed is displayed after the knob stops swirl/spin for 1 second
Notice
• When using, it should be accelerated slowly from slow to fast. If the straightness of the stirringrod is poor, the Rotation speed cannot be fast or a soft connecting shaft is used and fixed with a support sleeve in the middle.
• Stirrer should not work too close to avoid the danger of clothing, hair, etc
• Prevent liquid from splashing when stirring
