$ 2567.00Ex works
With 10L Processing capacity and 0.1μm discharge accuracy, four-station design and 580rpm Rotation speed, support wet and dry grinding and vacuum grinding, configuration 600CFM cooling system and a variety of materials ball mill Tank optional, good grinding conformity.
Category : Ball Mill
Brand : DECO
SKU : NB017059
Service :The delivery and service By NBCLab.Com

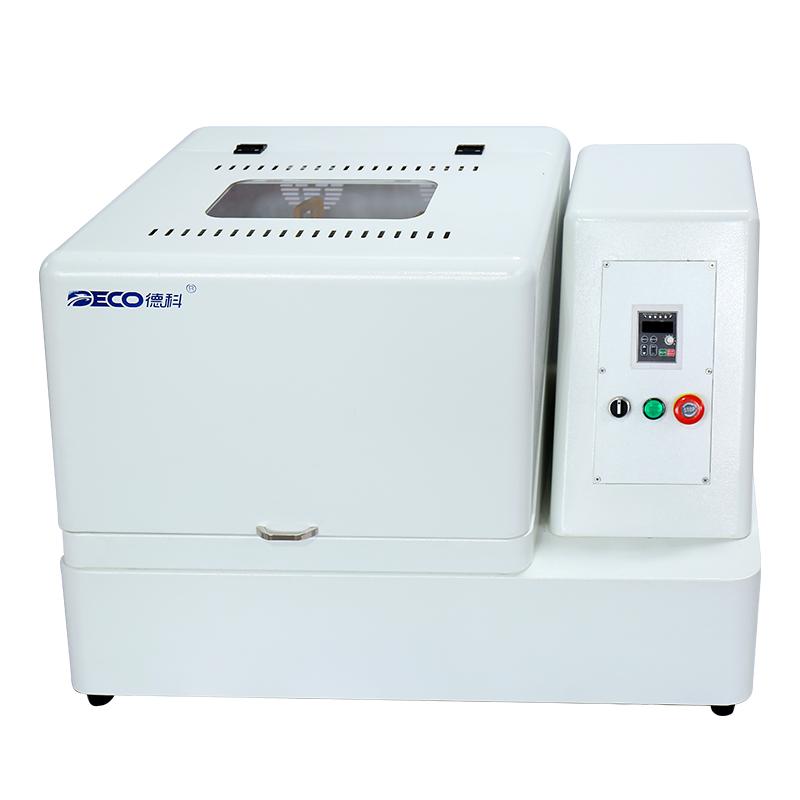

DECO-PBM-V-10L Vertical Planetary Ball mill is a DECO brand reinforced planetary Ball mill, which can be used as experimental sample preparation and industrial powder production dual-use equipment. Provide 8L, 10L, 12L three grinding specifications to choose from, with high Rotation speed grinding ability and strong Processing capacity, to meet the material grinding requirements of demanding sample yield and discharge particle size.
1. All parts inside and outside the fuselage are sprayed with plastic 2. The planetary tank holder is made of seamless wire cutting process, which is durable and prevents breakage at high speed 3. The pressure rod is made of 304 stainless steel, which is not rusting, pressed firmly, and has a high safety factor 4. The core components are Delixi inverter and Dedong motor, durable and stable performance 5. Equipped with 600CFM cooling system to maintain the normal temperature of the body 6. According to production requirements, three specifications of 8L, 10L and 12L can be selected 7. Can be equipped with practical and vacuum ball mill tank to achieve dry grinding, wet grinding, vacuum grinding, inert gas grinding four grinding methods 8. The ball mill can be made of a variety of materials and can be specially made upon request 9. Multiple grinding effects are the same, and a single batch of grinding conformity is good 10. The discharge volume has been greatly improved to meet industrial demand 11. Wide range of ground Sample types 12. Control system has various functions, simple operation, with power-off protection and memory function 13. Easy to use and easy to maintain

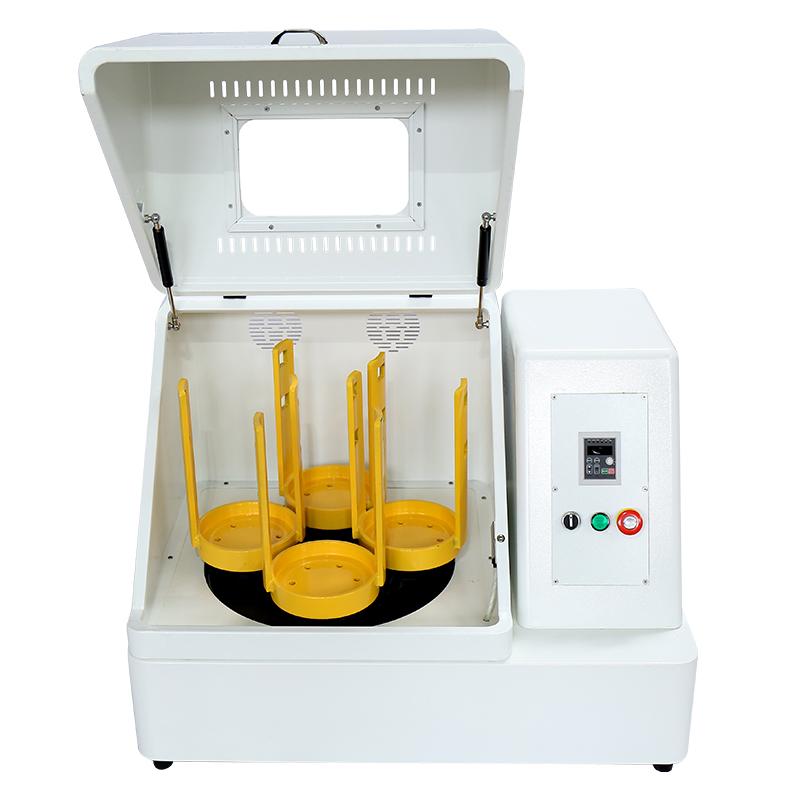

Four ball milling tanks are assembled on the planetary disk. When the planetary disk rotates at high speed, the ball milling tank makes a central axis planetary motion. The grinding balls in the tank collide violently and rub the material during the high-speed motion to achieve crushing, homogenization or mixing of the material. By increasing the volume, weight and capacity of the equipment, improving the internal mechanical design, strengthening the core device and scientific mechanics research, and maintaining the effective grinding ability while increasing the output.
Electronics, Medical, Beauty, Chemical, Ceramics, Glass, Metallurgy, Teaching, Research
IP53
1. Select the ball mill tank size configuration 2. Equipped with practical or vacuum ball milling tanks 3. Set the function mode: forward operation, reverse operation, alternating positive and negative operation, intermittent operation 4. Set ground time: 00:00:01 to 99:59:59 5. Set intermittent operation time: 00:01:00~ 99:59:59 6. Start the device running 7. Suspension, stepless speed regulation, emergency stop operation can be performed
• Maximum feed size: Soil material ≤ 10mm, Miscellaneous material ≤ 3mm • Suggested grinding time: 30-60min • Use appropriate grinding material and grinding ball size • Power supply voltage 220V AC • Ensure Protection Rating IP53 Requirements • Net weight 150kg, gross weight 210kg, need to pay attention to bearing
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
