$ 14302.00Ex works
360 degree tumbling structure combined with planetary disk swirl/spin, maximum Processing capacity 80L, minimum discharge particle size 0.1μm, support dry grinding, wet grinding, vacuum and other grinding methods, equipped with a variety of materials ball mill Tank to adapt to different samples.
Category : Ball Mill
Brand : DECO
SKU : NB017078
Service :The delivery and service By NBCLab.Com

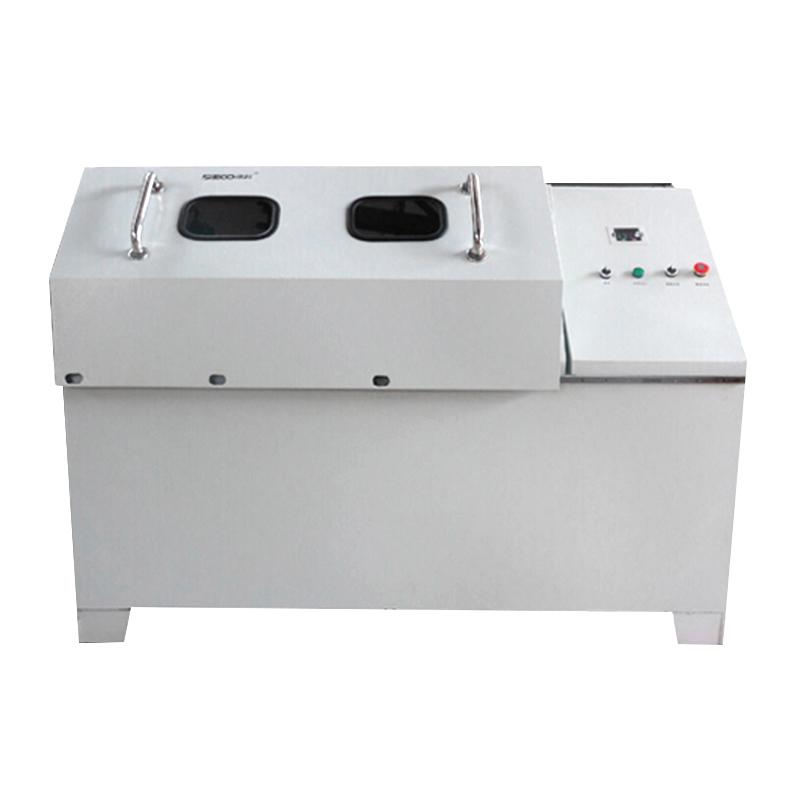

The DECO DECO-PBM-AD-80L all-round planetary Ball mill is a laboratory powder sampling equipment that can make materials achieve ultra-efficient three-dimensional full grinding, and can also be used for sample crushing, mixing and homogenization processes. It combines the characteristics of vertical and horizontal planetary Ball mills, and can form a better crushing effect on the sample through the 360 ° rolling form of the planetary disc and ball mill tank as a whole, while greatly improving the uniformity and efficiency of discharge.
1. The grinding volume specification is 4 * 15L, and the maximum Processing capacity is 80L. 2. Strong, fast, comprehensive grinding, can achieve High Accuracy and highly consistent discharge effect. 3. Fine grinding, no pollution, a wide range of materials suitable for grinding. 4. Rotation speed, time and other ground data control can ensure the sample ground Repeatability and conformity. 5. It can control the rolling speed of the planetary disk and improve the effect of grinding. 6. Configure a variety of ball milling tanks of different materials to grind at the same time to improve the diversity of grinding samples. 7. Support dry grinding, wet grinding, vacuum/pressurized grinding, inert gas grinding a variety of grinding methods. 8. The grinding room and control room are equipped with highly ventilated heat dissipation. 9. Control system can be controlled, convenient parameter setting, diverse functions, intuitive digital display, simple operation, one-piece operation and safe use. 10. Power-off protection function, automatic storage of ground data. 11. Standardized production process, exquisite craftsmanship, exquisite material selection, environmentally friendly and energy-saving, with a good service life. 12. Ball mills and ball mills are easy to use. 13. Maintenance and overhaul are simple and convenient.
In the planetary ball mill, the four ball mill tanks placed on the planetary disk also perform reverse high-speed swirl/spin under the high-speed swirl/spin of the planetary disk. At the same time, the planetary disk and the ball mill tank as a whole are rolled 360 ° under the power of the motor. In this process of continuous change of orientation, more intense and uniform friction and impact energy are generated between the material and the ground ball, so that the material in the ball mill tank can be fully crushed, mixed and homogenized.
Pharmaceuticals, Food, Chemicals, Synthetic Materials, Electronics, Engineering, Metallurgy, Glass, Ceramics, Biology
CE
1. Set ground parameters, including Rotation speed, time, etc. 2. Select and install the appropriate ball mill tank and grinding ball. 3. Start the device and select the operation mode (e.g. run, pause, reverse run, etc.) as required. 4. Monitor the grinding process to ensure the normal operation of the equipment. 5. After the grinding is completed, turn off the equipment and remove the sample.
Maximum feed size: Soil material ≤ 10mm, Miscellaneous material ≤ 3mm. * Minimum discharge particle size: 0.1μm. * Power supply voltage: 380V, Frequency 50Hz, using three-phase power supply. * Protection Rating is IP53, ensuring use in the appropriate environment. Perform regular maintenance to extend the lifespan of the equipment.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
