Overview

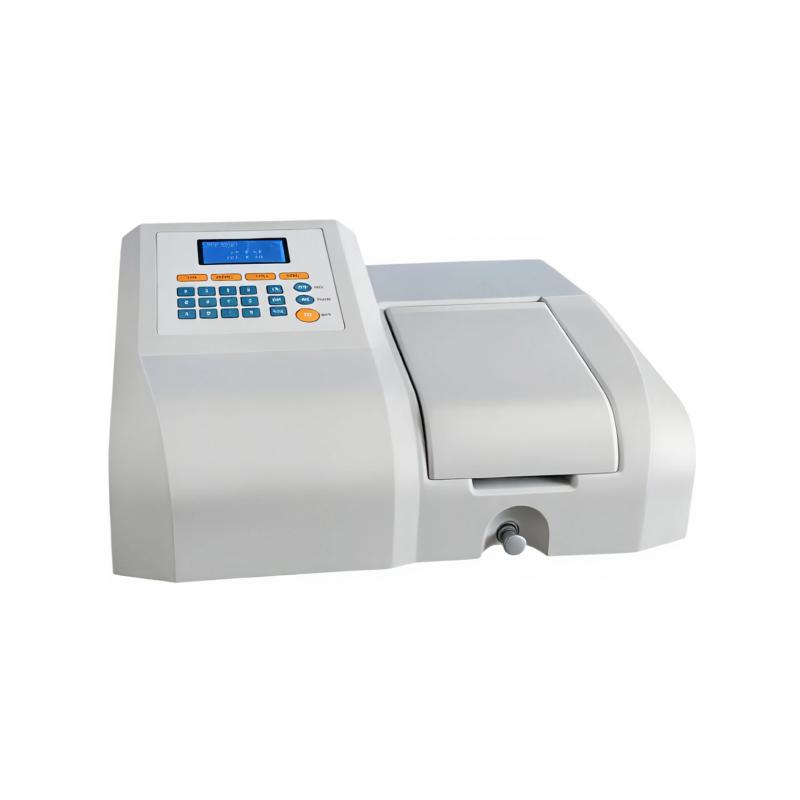

The YUE FENG 723S visible spectrophotometer is a high-performance analytical instrument with a Czerny-Turner optical path design, Wavelength range 325~ 1100nm, and a large-screen LCD graphic LCD display. The instrument features photometric measurement, Basis Weight detection, and standard Linear dispersion display. It can store 100 standard Linear dispersion and 200 detection data, and supports wavelength Automatic calibration and automatic power-off data retention.
Features
1. Large screen LCD (64 × 128) graphic liquid crystal display
2. Spacious sample room can accommodate 5~ 100mm Cuvette
3. The host can perform photometric detection, Basis Weight detection, and can display standard Linear dispersion
4. Can store 100 standard Linear dispersion and 200 test data
5. Automatic calibration of wavelength, automatic power-off data keeping function
6. The main components are imported for easy maintenance
7. Czerny-Turner Optical Path Design Ensures Linear Precision and Ultra-Low Stray Light Detection
8. Can be directly connected to the printer (optional) to print data or maps
Principle
The instrument uses the Czerny-Turner Optical inspection system to measure the sample Absorbance and transmittance in the 325~ 1100nm Wavelength range through 1200L/mm grating spectroscopy. Using the halogen tungsten lamp as the Illuminant, through the photometric detection and quantitative analysis functions, the standard Linear dispersion can be established or the coefficient method can be used for concentration calculation.
Applications
Chemical analysis, biological testing, environment monitoring, pharmaceutical research and development, food inspection, material testing
Standards
Wavelength Precision +/- 0.5nm, Wavelength Repeatability ≤ 0.3nm, Luminosity Precision +/- 0.002A (0~ 0.5 A )、 +/- 0.003A (0.5~ 1A )、 +/- 0.5% T, stray light ≤ 0.05% T@360nm
Steps
1. Carry out wavelength calibrating and dark current calibrating
2. Select Photometric Measurement mode for Absorption, Transmittance or concentration test at fixed wavelength
3. Basis Weight test can choose standard Linear dispersion method (up to nine points) or coefficient method
4. Establish standard Linear dispersion and display map and regression equation
5. Store test data and standard Linear dispersion
6. Optional connection to printer output data or graph
Notice
• Wavelength calibration and dark current calibration are required before use
• Cuvette size should be in the range of 5~ 100mm
• Standard Linear dispersion method can establish up to nine points of standard Linear dispersion
• The printing function is optional, and an additional printer needs to be connected.
• Pay attention to the Wavelength Precision and Photometric Precision Range of the instrument
• Regular maintenance to ensure Optical inspection system performance
