Overview

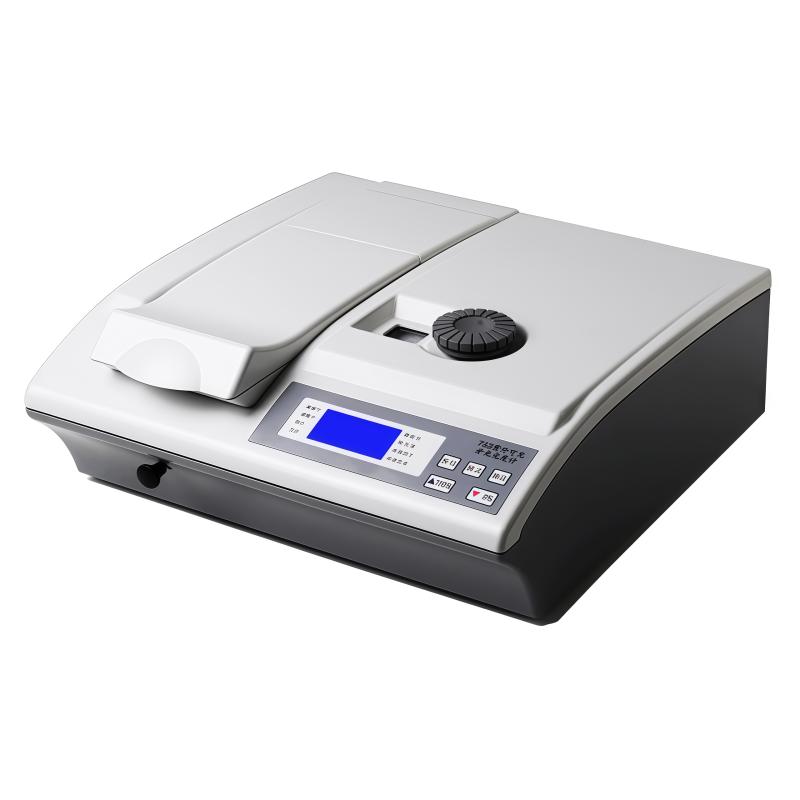

YUE FENG 752N UV-Visible Spectrophotometer is a single beam of light Optical inspection system instrument, using 1200/mm Holographic grating, Light spectrum Bandwidth 4nm, Wavelength range 200~ 960nm. The instrument has the function of one-button automatic correction of ABS value, four-digit LCD display Measured value, using imported tungsten lamps and deuterium lamps, the lifespan is up to 2000 hours, the sample chamber is wide, can be placed 5mm~ 100mm Cuvette, and is equipped with RS232 data output port, which can be connected to computer and printer.
Features
1. One-click automatic correction of ABS value
2. Measured value of four-digit LCD display
3. Imported tungsten lamps and deuterium lamps, with a service life of up to 2000 hours
4. Wide sample chamber, support 5mm~ 100mm Cuvette
5. data output port RS232, can be connected to computers and printers
6. Establish standard modes C = FXABS, F = C/ABS
7. Can be directly connected to the printer (optional) to print data or maps
Principle
The instrument is based on a single beam of light Optical inspection system, using 1200 bars/mm Holographic grating and 4nm Light spectrum Bandwidth. Substances are analyzed by measurement of transmittance, Absorption, concentration factor or direct reading of concentration in the 200~ 960nm Wavelength range. The working methods include transmittance, Absorption, concentration factor and concentration direct reading. Illuminant (tungsten halogen lamp and deuterium lamp) is used to illuminate the sample to detect the light signal and convert it into a digital display.
Applications
Chemical analysis, biological testing, environment monitoring, pharmaceutical research and development, food inspection
Standards
Wavelength Precision +/- 2nm, Wavelength Repeatability ≤ 1.0nm, Luminosity Precision +/- 1.0% T, Luminosity Repeatability ≤ 0.5% T, Stray Light ≤ 0.5% T@220nm, 360nm
Steps
1. ABS file background zero adjustment, measurement of known standard liquid Absorbance
2. Calculate the F value F = C/ABS
3. F file is adjusted to the required number (F range: 1-1999)
4. C file test sample
Notice
• Setting range: 0~ 9999 (concentration value or concentration factor), [0 invalid]
• Optional: Bright Thermal Printer
