Overview

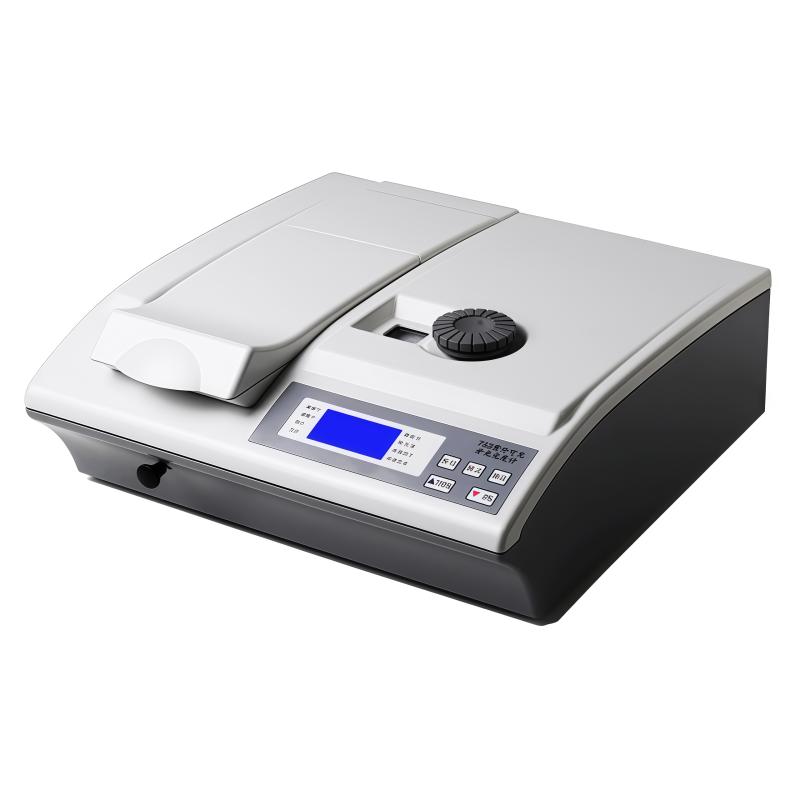

YUE FENG 752NPC UV-Visible Spectrophotometer adopts imported tungsten lamp and deuterium lamp, the service life is up to 2000 hours, and it has the function of one-button automatic correction of ABS value. The instrument is equipped with a four-digit LCD liquid crystal display, which can display Measured value, the sample room is wide, and can be placed in a 5mm~ 100mm Cuvette. It supports RS232 data output port, which can be connected to computers and printers.
Features
1. Automatic correction of ABS value with one click.
2. Four-digit LCD liquid crystal display, digital display Measured value.
3. Use imported tungsten lamps and deuterium lamps, with a lifespan of up to 2000 hours.
4. Wide sample chamber, can be placed 5mm~ 100mm Cuvette.
5. The data output port RS232 can be connected to computers and printers.
6. Support standard modes C = FXABS, F = C/ABS, and can directly connect to the printer (optional) to print data or graphs.
Principle
The instrument is based on an aberration-free Optical inspection system (1200L/mm grating), which performs concentration calculations using standard modes C = FXABS and F = C/ABS by measuring the transmittance or Absorbance of the sample in the 190~ 960nm Wavelength range. Working methods include transmittance, Absorbance, concentration factor and direct reading of concentration for fast analysis.
Applications
Chemical analysis, biological testing, environment monitoring, pharmaceutical industry, food testing
Steps
1. ABS file background zero, measure the known standard liquid Absorbance.
2. Calculate the F value F = C/ABS.
3. Adjust the F file to the required number (F range: 1-1999).
4. C file test sample.
Notice
• The printer is optional and requires an additional connection.
The F-value range is limited to 1-1999.
• Make sure the instrument background is zero before use.
