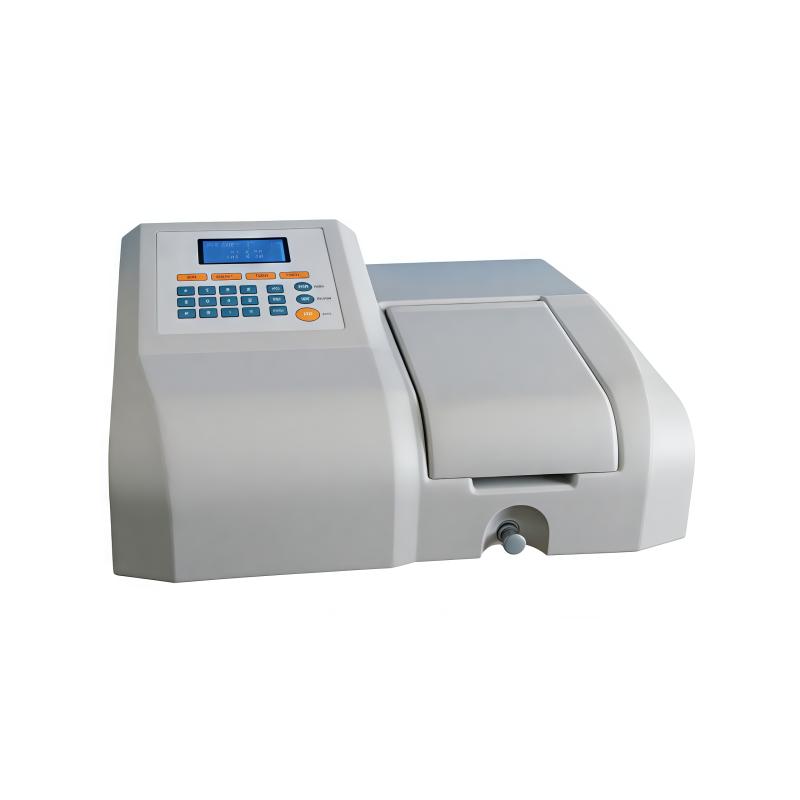

YUE FENG UV756 UV-Visible SpectroPhotometer Czerny-Turner Optical Path 190-1100nm

Name: YUE FENG UV756 UV-Visible SpectroPhotometer Czerny-Turner Optical Path 190-1100nm
Brand: YUEFENG
SKU: NB017251
Price: 1284.0 USD
Availability: InStock

$ 1284.00Ex works

Using Czerny-Turner optical path to ensure detection of linear Precision and ultra-low stray light, Light spectrum Bandwidth 2nm, can store 100 standard Linear dispersion and 200 data, supports a variety of Cuvette and direct printouts.

Model

UV756

Get Quote

Category : Spectrophotometer

Brand : YUEFENG

SKU : NB017251

Service :The delivery and service By NBCLab.Com

Overview

The YUE FENG UV756 UV-Visible Spectrophotometer is a high-performance analytical instrument with a Czerny-Turner optical path design to ensure detection of linear Precision and ultra-low stray light. It features a spacious sample chamber with a 5-100mm Cuvette, standard 10mm sample holder, supports photometric detection, Basis Weight detection, standard Linear dispersion display, and can store 100 standard Linear dispersion and 200 detection data.

Features

1. Spacious sample room can accommodate 5~ 100mm Cuvette, standard 10mm sample holder 2. Support photometric detection, Basis Weight detection, standard Linear dispersion display, store 100 standard Linear dispersion and 200 detection data 3. Automatic calibration of wavelength and automatic power-off data keeping function 4. The main components are imported for easy maintenance 5. Czerny-Turner Optical Path Design Ensures Linear Precision and Ultra-Low Stray Light Detection 6. Can be directly connected to the printer (optional) to print data or maps

Principle

UV-Visible Spectrophotometer is based on the Czerny-Turner optical path system, using tungsten halogen lamps and deuterium lamps for measurement in the 190~ 1100nm Wavelength range through grating spectroscopy. After the sample absorbs light of a specific wavelength, the Detector measures the transmitted light intensity and converts it into Absorbance or light transmitance data for quantitative analysis and standard Linear dispersion rendering.

Applications

Chemical analysis, biological testing, environment monitoring, pharmaceutical industry, food inspection, materials science

Optical inspection system
Aberration (1200L/mm Grating)
Light spectrum Bandwidth
2nm
Wavelength Range
190m~1100nm
Wavelength Precision
±0.5nm
Wavelength Repeatability
≤0.3nm
Photometric Range
0~200%T，-0.301~3.000A，0~9999C
Photometric Precision
±0.002A（0~0.5A）；±0.003A（0.5~1A）；±0.5%T（0~100%T）
Luminosity Repeatability
≤0.001A（0~0.5A）；≤0.002A（0.5~1A）；≤±0.2%T（0~100%T）
stray light
≤0.05%T(220nm，360nm)
Noise level
100%≤0.15%T；0%≤0.01%T
Baseline flatness
±0.002A
data output
USB port
printout
Parallel entrance
Illuminant
Deuterium lamp, tungsten halogen lamp
Concentration Range
0~1999
drift
≤0.001A/h@500nm
scanning speed
Fast, medium, slow.
display
High-quality 128x64-bit graphics LCD screen

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
