Overview

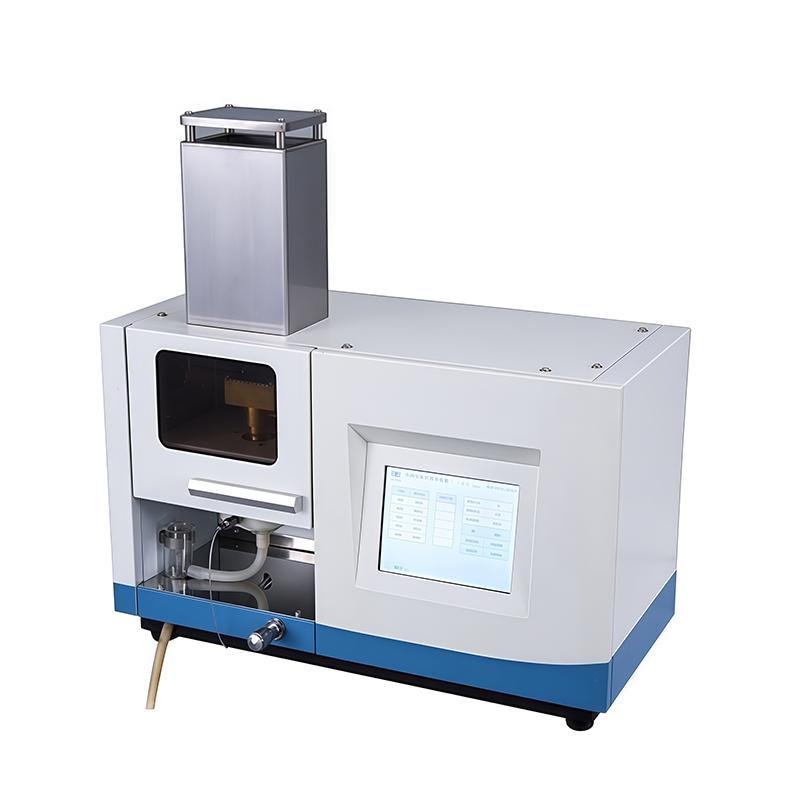

YUE FENG FSP6632 flame spectrophotometer is a precision analytical instrument with concave Holographic grating design. It has the characteristics of pure, accurate Light spectrum, narrow passband, high Sensitivity and good linearity. It supports any combination of five elements at the same time direct reading measurement, equipped with 5.6 inch color Touchscreen, graphical interface, operation flow, to ensure efficient and convenient measurement.
Features
1. Concave Holographic grating design, Light spectrum pure, accurate, narrow passband, Sensitivity higher, better linearity.
2. Five elements can be selected in any combination while direct reading measurement, only software selection, flexible and convenient.
3. Similar to the atomic absorption design, it is magnificent, small and delicate.
4. Imported Photocells, photovoltaic cells receive element signals, stable and reliable performance.
5. With an internal standard channel, it is corrected with a signal that does not contain measurement elements, and the measurement is synchronized with the elements. Internal standard correction is optional.

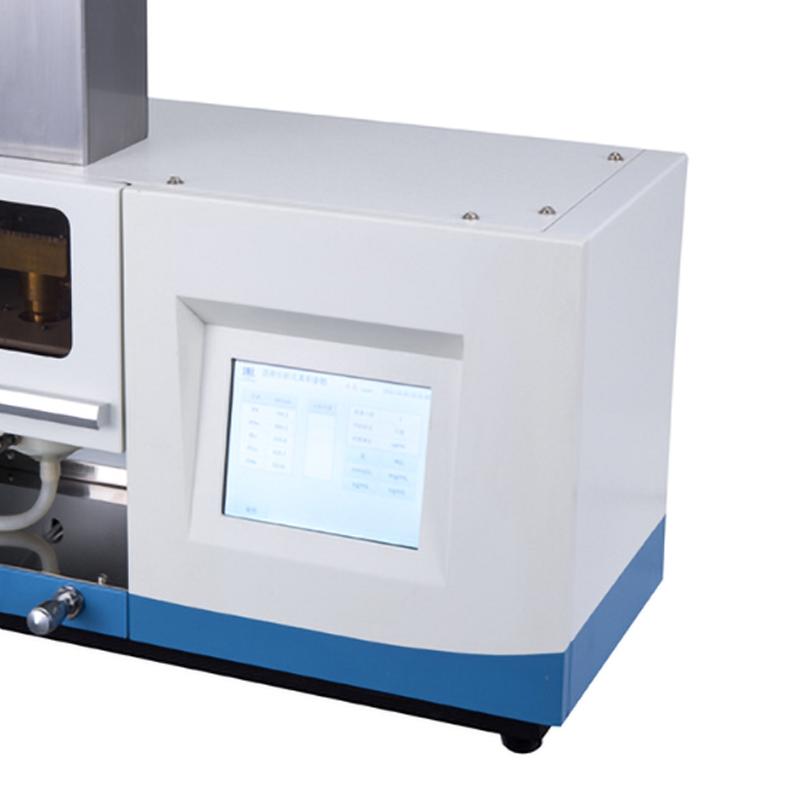

6. Adopt 5.6-inch color 640 × 480 display screen and supporting Touchscreen, interface graphics, measurement flow, abundant information, easy access.
7. Adopt automatic ignition, including flame monitoring, with flameout protection and alarm to ensure safety.
8. Switching power supply, light weight, small size, low heat generation, small impact of external power supply, energy saving and environmental protection.
Principle
The flame spectrophotometer is based on the spectral principle of 1200 concave Holographic grating. Illuminant analysis is made into pure Light spectrum through grating, and imported Photocells, photovoltaic cells receive element signals for measurement. Linear dispersion calibration is carried out by Linear dispersion fitting method, which supports internal standard correction function. Synchronous measurement and correction of signals can ensure the accuracy and Stability of analysis results.
Applications
Chemical analysis, environment monitoring, medical testing, industrial quality control, scientific research experiments
Standards
Stability Standard: Relative Maximum Change of Instrument indication within 15S ≤ 2%, Response Time Standard: < 8S
Steps
1. Turn on the instrument power and start the system.
2. Select the measurement element combination through Touchscreen.
3. Use the automatic ignition function to ignite the flame and monitor the flame status.
4. Linear dispersion calibration, using Linear dispersion fitting method.
5. Start the measurement, the instrument automatically reads and displays the data.
6. Connect the printer to output data through the USB port.
Notice
• Ensure that the Ambient Temperature is used within the range of 10~ 35 ° C.
• Check whether the flame monitoring and flameout protection functions are normal before use.
• Avoid external power fluctuations affecting instrument performance.
• Periodically calibrate instruments to maintain Measurement accuracy.
• Pay attention to safety during operation to prevent accidental flames.
