Overview

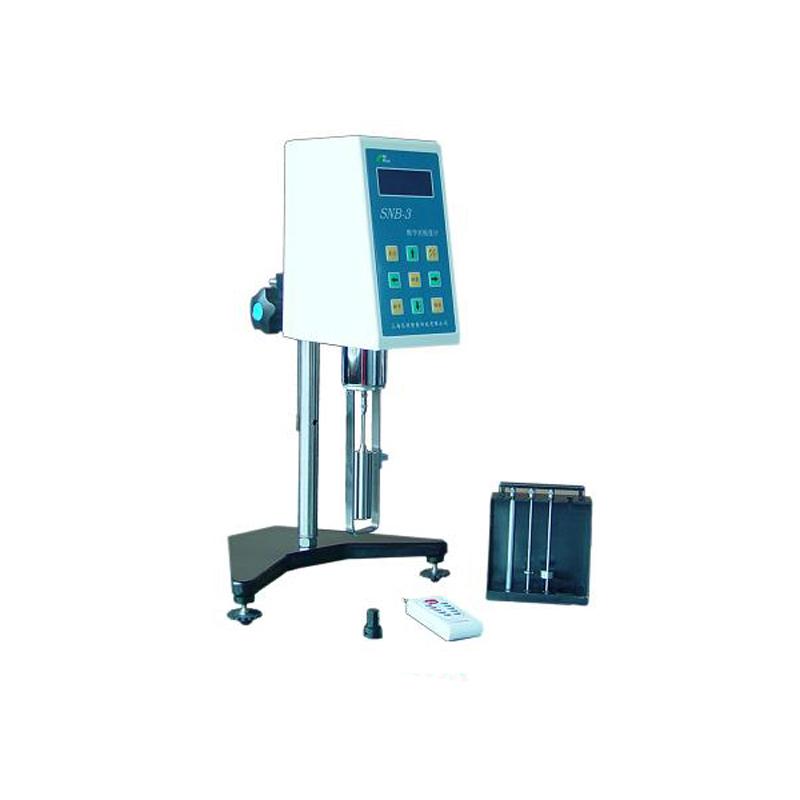

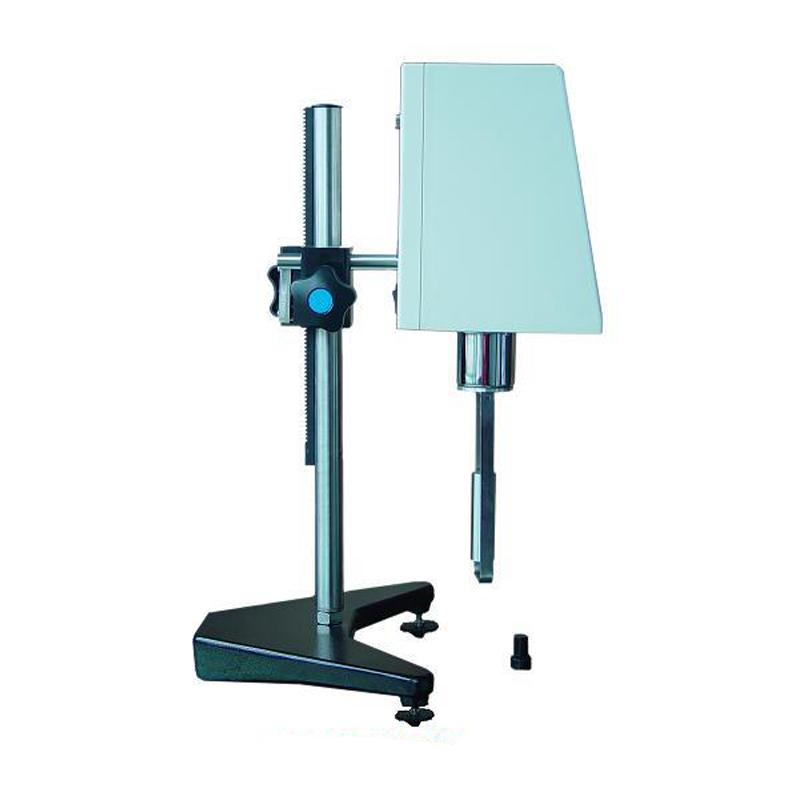

NIRUN SNB-3 Digital Viscometer is a High Accuracy measuring instrument with an improved 16-bit microcomputer processor as the core. It has the characteristics of strong anti-interference performance, accurate Rotation speed and wide Measurement range. It is widely used in the measurement of viscosity of various fluids.
Features
1. Improved 16-bit microcomputer processor as the core, anti-interference performance is greatly improved
2. Digital LCD 4-line digital display with blue backlight function
3. Optional SNB data collection and drawing software
4. Stepper motor direct drive, no gear, Rotation speed accurate
5. Display the maximum viscosity value of the rotor that can be measured at the current Rotation speed
6. Measurement timing function, printing time interval setting, Viscosity unit selection
7. The viscosity value shows continuous change, and there is an alarm sound beyond the Measurement range
8. Standard RTD temperature sensor, computer full scale linear correction
9. AC Power Adapter 100V-240V, good anti-interference
Principle
The Viscometer drives the rotor swirling/spinning in the fluid via a stepper motor direct drive, using a microcomputer processor to control Rotation speed and measurement torque to calculate viscosity values based on the resistance of the fluid to the rotor for accurate measurement.
Applications
Inks, glues, emulsions, solvent Adhesives, polymer solutions, petroleum, paints, solvents, cosmetics, milk products, products, juices
