Overview

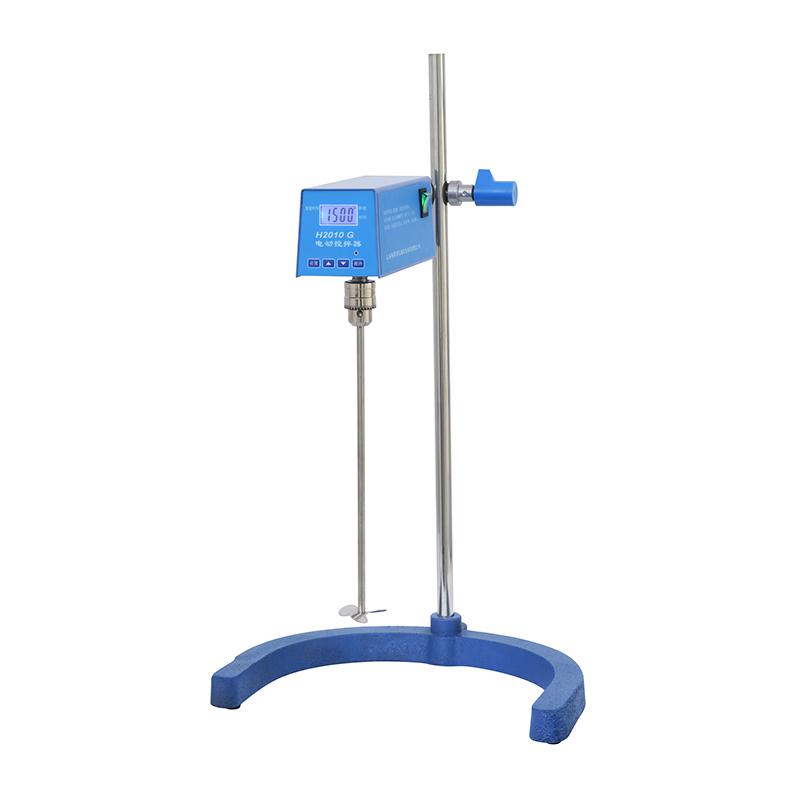

CHIJIU H2010G powerbasic stirrer is a professional equipment with four-position LCD screen, Speed range is 60~ 1400r/min, Motor Power 100W. The product is driven by brushless DC motor, controlled by single chip microcomputer, closed-loop speed regulation, Rotation speed is stable, and has a timing function of up to 9999 minutes. The LCD screen can clearly display various functional parameters.
Features
1. Adopt four-digit LCD display, the function display is clear and intuitive
2. Brushless DC motor drive, smooth and reliable operation
3. MCU control, closed loop speed regulation, Rotation speed stability
4. Timing function for up to 9999 minutes
5. Speed range 60~ 1400r/min, flexible adjustment
6. Motor Power 100W, sufficient power
Principle
H2010G powerbasic stirrer is driven by a brushless DC motor and adopts a single-chip microcomputer Control system to realize closed-loop speed regulation. Users can set Rotation speed, timing time and acceleration time through setting keys, rising keys and falling keys. Stirrer automatically runs according to the set parameters, reaches the preset Rotation speed from slow to fast within the set acceleration time, and automatically stops working after the timing is over.
Steps
1. Plug in the power supply, turn on the power switch, and the LCD screen shows the original set Rotation speed
2. Press the setting button once, the number jumps, press the up or down button to set the Rotation speed
3. Press the setting button again to set the timing time in the same way (set to "0" if no timing is required)
4. Press the setting button again to set the acceleration time.
5. Press the setting button again, the setting is complete, and the LCD screen shows the Rotation speed just set.
6. Press the stir button, the stir indicator light is on, and Stirrer starts to work
7. Press the Settings button to view the current Rotation speed and remaining timing time
Notice
• When using Stirrer, it should be accelerated slowly from slow to fast. If the straightness of the stirringrod is poor, the Rotation speed cannot be fast or the soft connection shaft is used and fixed with a support sleeve in the middle.
• Stirrer, please do not work too close to avoid the danger of clothing, hair, etc
• Prevent liquid from splashing when stirring
• Acceleration time should not be too short, especially in the case of liquid viscosity, large stirring amount and high stirring Rotation speed, too short acceleration time can easily lead to Stirrer overload
• Select the appropriate Rotation speed every time the Operating Conditions change, and the Rotation speed setting should not be too high when using it for the first time
