Overview

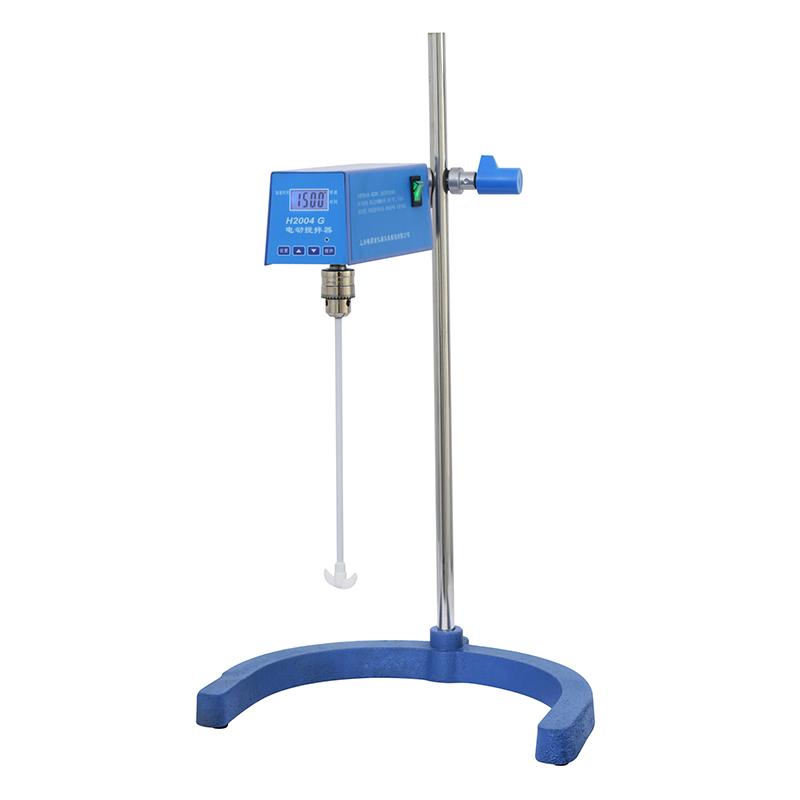

CHIJIU H2004G powerbasic stirrer is driven by brushless DC motor, controlled by single chip microcomputer, with closed-loop speed regulation function, Rotation speed is stable, with a timing function of up to 9999 minutes, and the LCD screen can display various functional parameters.
Features
1. Driven by a brushless DC motor, running smoothly
2, MCU control, closed loop speed regulation, Rotation speed stability
3. Timing function for up to 9999 minutes
4, LCD screen can display Rotation speed, timing time and acceleration time
5. Speed range 60~ 1500rpm, wide adjustment range
6. The clamping range of the rotary collet is φ 1.5~ 10mm, suitable for a variety of stirringrods
Principle
The powerbasic stirrer drives the stirringrod swirling/spinning through a brushless DC motor, and uses a single-chip microcomputer Control system to realize closed-loop speed regulation to ensure stable Rotation speed. The user can set the Rotation speed, timing time and acceleration time through the setting keys, and the Stirrer automatically runs according to the set parameters, and reaches the set Rotation speed from slow to fast in the acceleration time.
Steps
1. Plug in the power supply and turn on the power switch
2. Press the setting button to set the Rotation speed, press the up or down button to adjust the value
3. Press the setting button to set the timing time. If no timing is required, set it to "0".
4. Press the setting button to set the acceleration time.
5. Press the stir button to start after the setting is completed.
6. Press the Settings button to view the current Rotation speed and remaining timing time
7. Press the stir button to stop stirring, and press the stir button again to restart.
Notice
• When using, it should be accelerated slowly from slow to fast, such as stirringrod straightness difference, Rotation speed should be reduced or soft connection shaft should be used
• Don't get too close at work to avoid getting your clothes and hair involved
• Prevent liquid from splashing when stirring
The acceleration time should not be too short, especially when the liquid has viscosity, large stirring amount and high Rotation speed
• Select the appropriate Rotation speed every time you change the Operating Conditions, and the Rotation speed should not be too high for the first time
