Overview

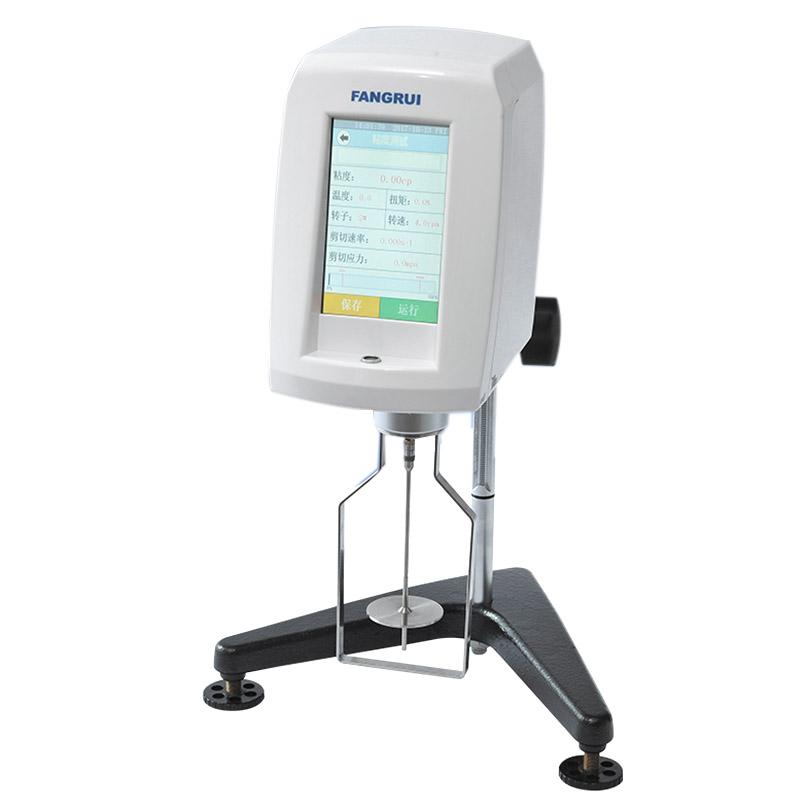

The FANGRUI instrument HADV-1T digital rotational viscometer uses touch screen technology for fast, accurate and convenient viscosity measurement. The product is powerful, equipped with 30 sets of self-built test programs and 5-inch color Touchscreen, which can fully display a variety of parameters and working status.
Features
1. Adopt ARM technology and Linux system, simple interface, support test program creation and Data analysis
2. Automatic calibration of each range by computer, high accuracy and small error
3. Display rich content, including viscosity, temperature, shear rate, shear stress and other parameters
4. Fully functional, support RS232C interface to connect to computer, timing measurement, Data storage and printing
5. Front level, intuitive and convenient adjustment
6. Stepless speed regulation, 0.3-100 a total of 998 kinds of Rotation speed
7. Linear dispersion of shear rate to viscosity
8. Optional Pt100 temperature sensor, temperature range -20 to 300 ℃, accuracy 0.1 ℃
9. Optional accessories, including constant temperature bath, thermostatic cup, etc
10. Support Chinese and English Operating system
Principle
The rotational viscometer uses a rotor to swirl/spin measurements of viscosity in the sample, using stepless speed regulation technology to calculate viscosity values by measurement of shear stress and shear rate. Equipped with automatic scanning function to recommend suitable rotor and Rotation speed combinations.
Applications
Paints, Coatings, Cosmetics, Inks, Pulp, Food, Oil, Starch, Solvent Adhesives, Emulsions, Biochemical Products, Asphalt, Paraffin, Hot-melt adhesives
Steps
1. Adjust the instrument level through the front level
2. Choose the right rotor and Rotation speed combination
3. Place the sample in the container
4. Measurement parameters set by Touchscreen
5. Start measurement and observe real-time display data
6. Save or print measurement results
Notice
• Make sure the instrument is placed horizontally before use
• Choose the right combination of rotor and Rotation speed for measurement
• Optional temperature sensor when measuring high temperature samples
Storage capacity limitations when saving data
• Make sure the interface matches when connecting external devices
