Overview

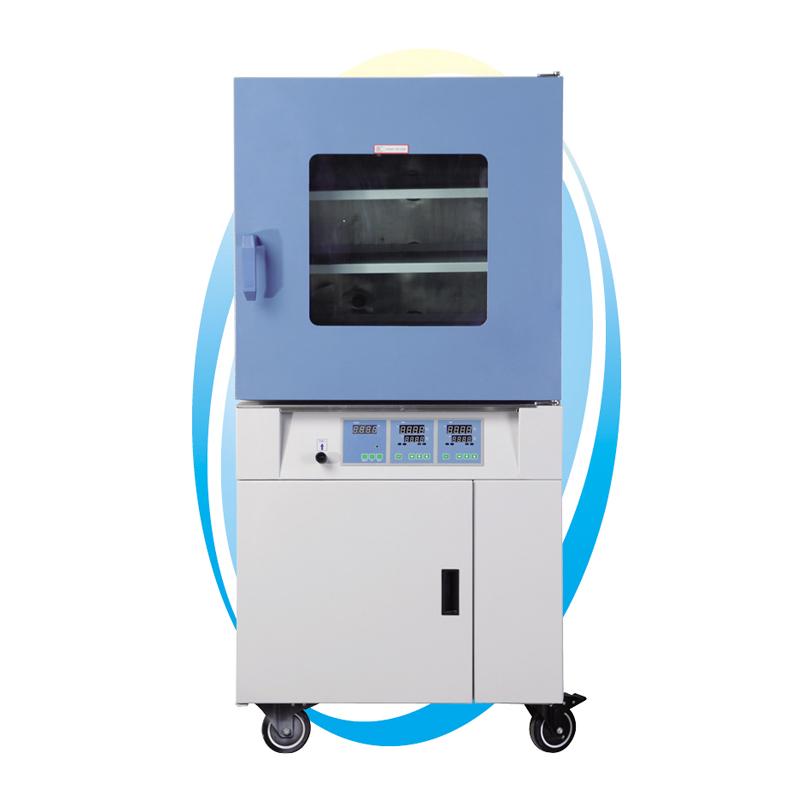

The BPZ-6063LCB Vacuum oven produced by YIHENG Instruments has the characteristics of short heating time, accurate control, safety and reliability, and can smoothly dry heat-sensitive substances and easy oxidation substances. The product uses a digital pressure sensor to automatically control the Vacuum Level and vacuum pump through a microcomputer.
Features
1. Cuboid studio, making the effective volume utilization rate large, microcomputer temperature controller, accurate and reliable temperature control.
2. Tempered, bulletproof double-decked Glass doors can be used to observe objects in the work room at a glance and can be filled with inert gas.
3. The box door is closed and elastic and adjustable, and the integrally formed silicone rubber door sealing ring ensures a high Vacuum Level in the box.
4. The studio is made of stainless steel plate material to ensure that the product is durable and easy to clean.
5. Storage, heating, testing and drying can be carried out in an environment without oxygen or filled with inert gas without causing oxidation.
6. Shorten the drying time, compared with the traditional Vacuum oven, the drying time is reduced by more than 50%.
Principle
The Vacuum oven controls the Vacuum Level digitally, using a resistive silicon tube pressure sensor to ensure a stable pressure value, not affected by air flow, and automatically controls the Vacuum Level and vacuum pump through a microcomputer. The drying process control provides a programmed vacuum cycle, setting the highest and lowest Vacuum Level values, and the number of cycles can reach 99 times. With each cycle, the Humidity continues to decrease and the drying speed increases.
Applications
Thermal drying, oxidation drying, material storage, heating test, inert gas environment operation
Steps
1. Set the highest and lowest Vacuum Level values as required, such as the minimum Vacuum Level 50Pa and the maximum Vacuum Level 900Pa.
2. Set the number of cycles, up to a maximum of 99.
3. Direct programming through the Operating interface, preset 7 groups of 63 steps to program.
4. Set each set time from 1 to 99 hours and 59 minutes.
5. Preset boot and shutdown times.
6. Control any two points or areas between Vacuum Levels in the range of 10~ 105Pa through the panel.
Notice
• The closure tightness of the box door needs to be adjusted properly to ensure a high Vacuum Level
• Vacuum Level Control Range 10~ 105Pa, Minimum 133Pa
• Set the number of cycles to no more than 99 times
• Temperature control range between RT + 10 and 200 ° C
• Power Supply AC 220V 50Hz
• Input Power is 1800W
