Overview

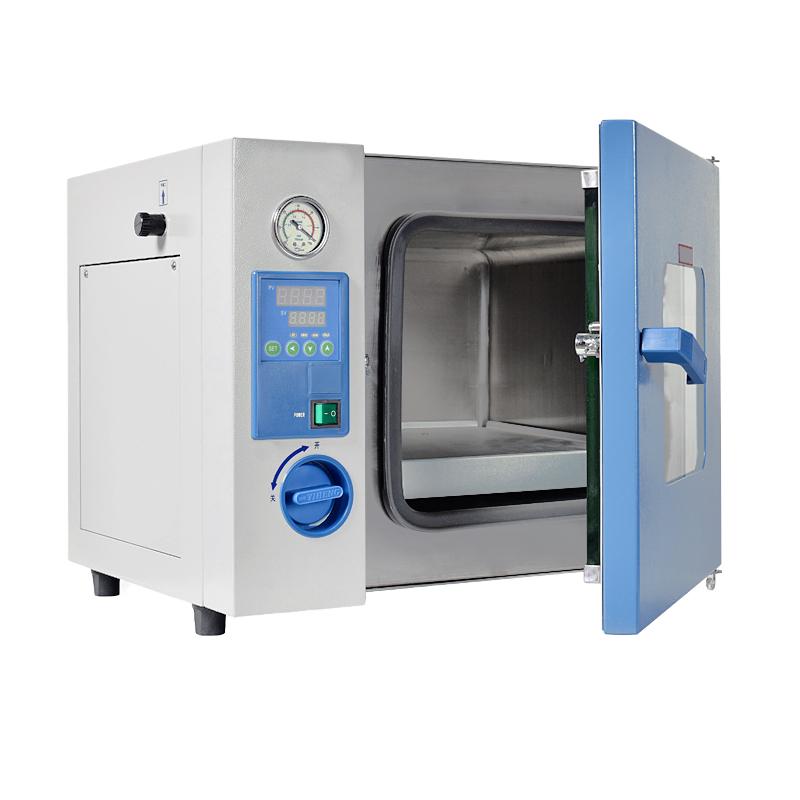

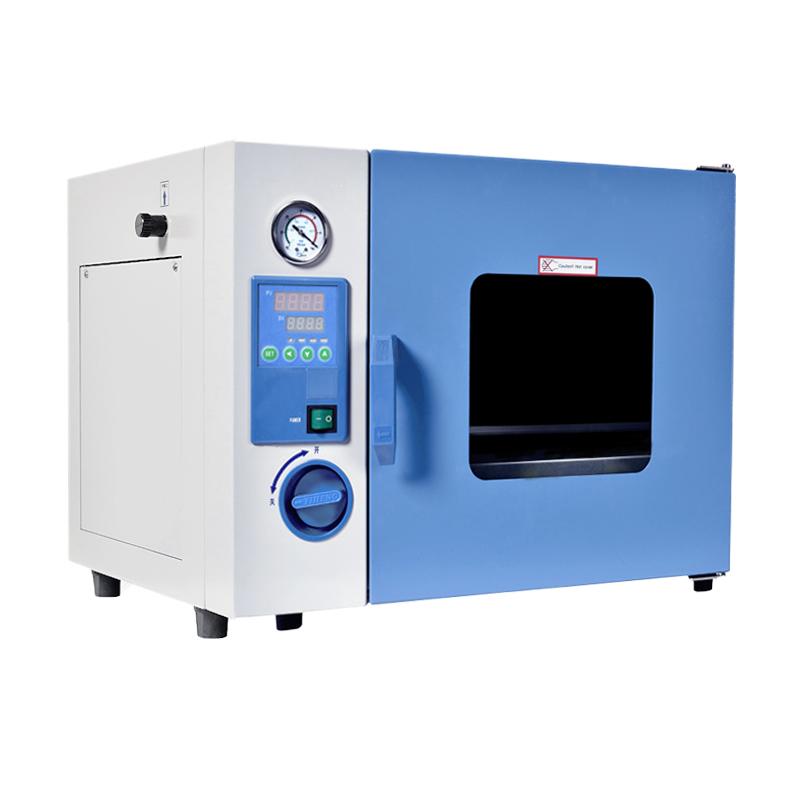

YIHENG DZF-6032 Vacuum oven is a new generation of vacuum drying equipment. It integrates the brand's many years of successful experience in box heating and overcomes the technical bottleneck in the heat conduction process through dedicated research. The equipment is specially designed for drying heat-sensitive, easy analysis and easy oxidation substances. It can be filled with inert gas to achieve rapid drying of complex components.
Features
1. Cuboid studio design, effective volume utilization, equipped with microcomputer temperature controller, accurate and reliable temperature control, compared with traditional Vacuum Chamber drying time reduced by more than 40%
2. Adopt tempered, bulletproof double-decked Glass doors for easy observation of indoor objects and can be filled with inert gas
3. The box door is closed and elastic and adjustable, and is equipped with an integrally formed synthetic silicon door seal to ensure that the box maintains a high Vacuum Level
4. The studio is made of stainless steel sheet material, which is durable and easy to clean
5. Support storage, heating, testing and drying in an environment without oxygen or filled with inert gas to avoid oxidation
Principle
Vacuum oven reduces the pressure in the box by vacuuming, reduces the boiling point of water, and heats the studio with a precise temperature control system to achieve rapid drying. It can be filled with inert gas to create an oxygen-free environment and prevent oxidation reactions of heat-sensitive, easy-to-analysis and easy-to-oxidation substances during the drying process.
Applications
Heat sensitive material drying, easy analysis material treatment, easy oxidation material protection, rapid drying of complex ingredients
Steps
1. Put the items to be dried into the studio
2. Adjust the closure tightness of the box door
3. Set the required temperature parameters
4. Start the vacuum system to evacuate
5. Optional inert gas filling
6. Start the heating drying process
7. Monitor drying status through observation window
8. Turn off the equipment after drying
Notice
● Working Ambient Temperature should be kept within the range of RT + 5~ 40 ℃
● Power supply voltage AC 220V 50Hz
● Check the door sealing performance before use
● Vacuum Level up to 133Pa, pay attention to the vacuum meter indication
Maintain the stainless steel surface with the appropriate detergent when cleaning
● Pay attention to operation safety when filling with inert gas
