Overview

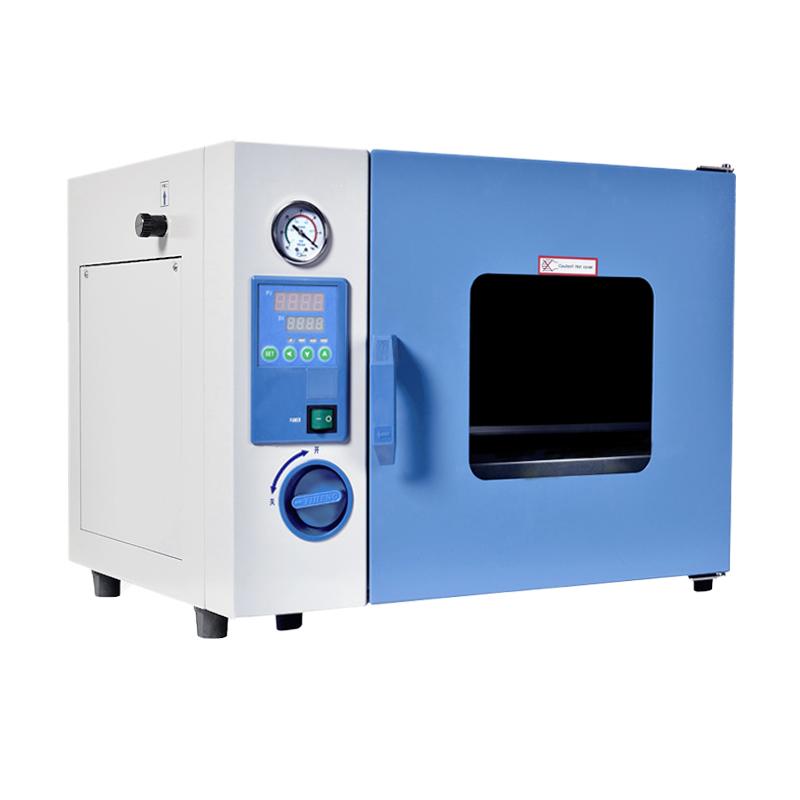

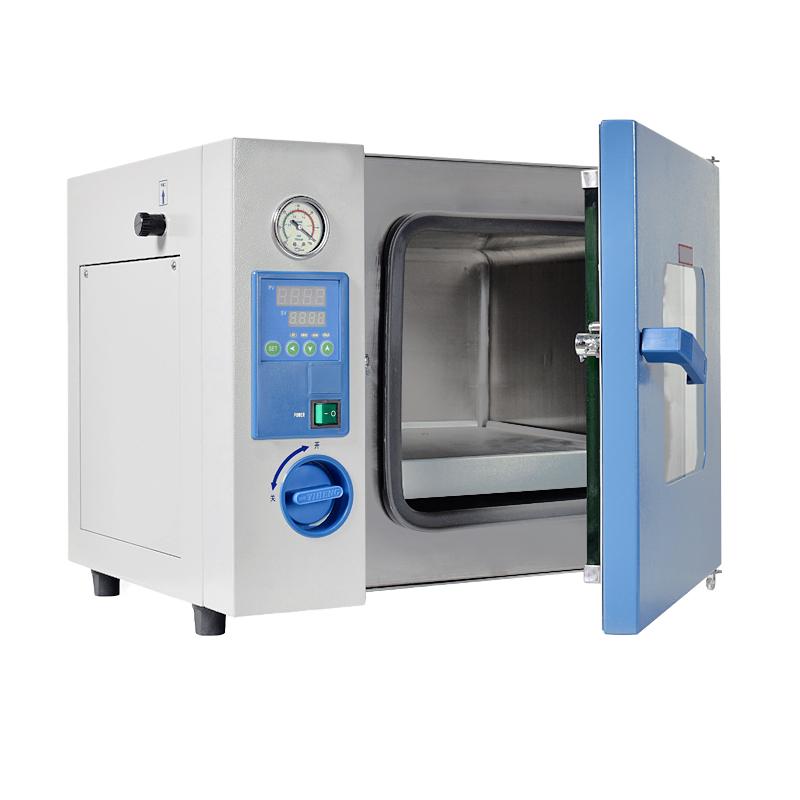

YIHENG DZF-6051 Vacuum oven is a new generation of vacuum drying equipment that integrates the brand's many years of successful experience in box heating, and overcomes the technical bottleneck in the heat conduction process through dedicated research. The equipment is specially designed for drying heat-sensitive, easy analysis and easy oxidation substances. It can fill the interior with inert gas and can also achieve rapid drying of complex components.
Features
1. Cuboid studio design, effective volume utilization, equipped with microcomputer temperature controller, accurate and reliable temperature control, compared with traditional Vacuum Chamber drying time reduced by more than 40%
2. Adopt tempered, bulletproof double-decked Glass doors for easy observation of indoor objects and support for inert gas filling
3. The box door is closed and elastic and adjustable, and is equipped with an integrally formed synthetic silicon door seal to ensure that the box maintains a high Vacuum Level
4. The studio is made of stainless steel sheet material, which is durable and easy to clean
5. Support storage, heating, testing and drying in an environment without oxygen or filled with inert gas, effectively preventing oxidation
Principle
Vacuum oven reduces the pressure in the box by vacuuming, reduces the boiling point of water, and heats the studio with a precise temperature control system to achieve rapid drying. The equipment can be filled with inert gas to create an oxygen-free environment, preventing oxidation reactions of heat-sensitive, easy-to-analysis and easy-to-oxidation substances during the drying process.
Applications
Heat sensitive material drying, easy analysis material treatment, easy oxidation material protection, rapid drying of complex ingredients
Steps
1. Place items to be dried in the studio
2. Adjust the tightness of the door closure to ensure sealing
3. Set the microcomputer temperature controller parameters
4. Start the equipment for vacuuming operation
5. Optional inert gas filling
6. Start the heating drying process
7. Monitor drying status through observation window
8. Turn off the equipment after drying and take out the items
Notice
● Equipment Ambient Temperature should be kept within the range of RT + 5~ 40 ℃
● Make sure that the sealing ring of the box door is intact and closed tightly before use
● When filling with inert gas, it needs to be operated according to the specifications
When cleaning the studio, use appropriate cleaning tools
Do not open the box door frequently during the operation of the equipment
● Power supply voltage requirement is AC 220V 50Hz
