Overview

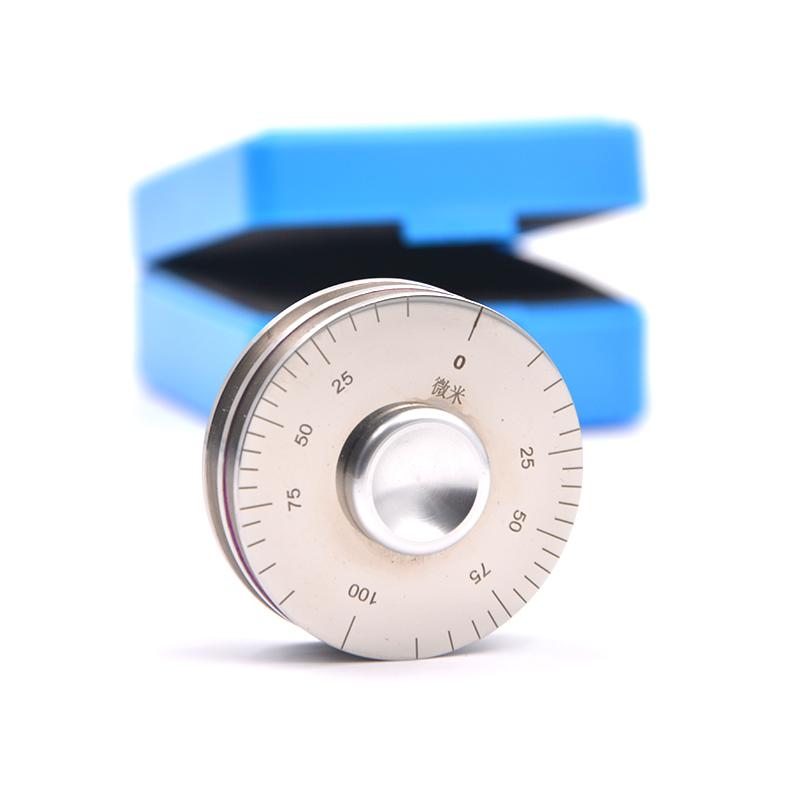

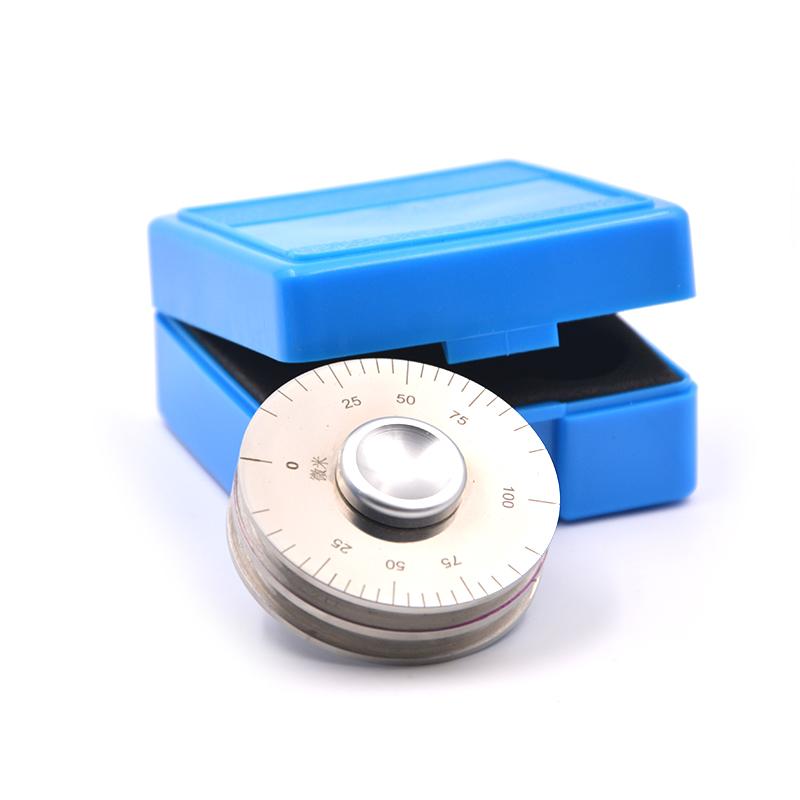

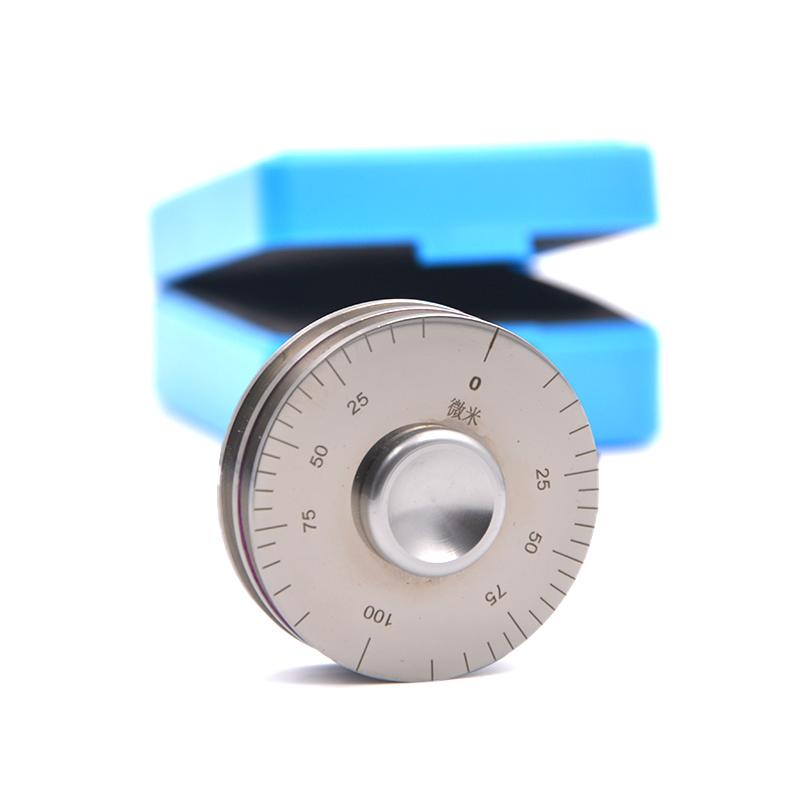

The YQH-100 wet-film roller Thickness gauge is a precision measurement tool from the PUSHEN brand for the measurement of wet film thickness in coating operations. Proper Coating thickness is critical for coating mass, too thick can lead to waste and coating cracking, and too thin cannot adequately cover the substrate. This product is suitable for substrates that can only be used in Destructiveness Measurement mode and can be measured in wet-film state.
Features

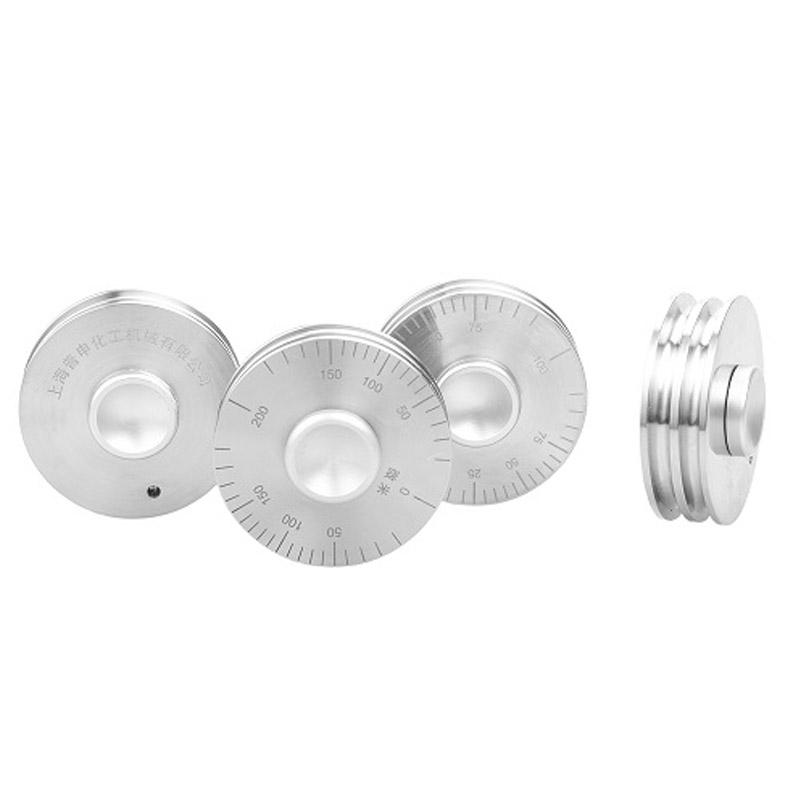

1. High-precision design, composed of three wheels, with a small diameter of the center wheel and a large diameter of the wheels on both sides
2. Easy to use, can be measured on plane and surface
3. Made of stainless steel, strong durability
4. Graduation accuracy, Measurement accuracy
Principle
The wet film thickness gauge consists of three wheels, the diameter of the center wheel is small, and the diameter of the round wheels on both sides is large. When using, roll the Wet Film Wheel along the wet-film, the center wheel will contact the film layer, and the scale where the contact point is located is the wet film thickness value.
Applications
Coating operations, film thickness measurement, industrial testing
Standards
GB/T 13452.2、ISO 2808
Steps

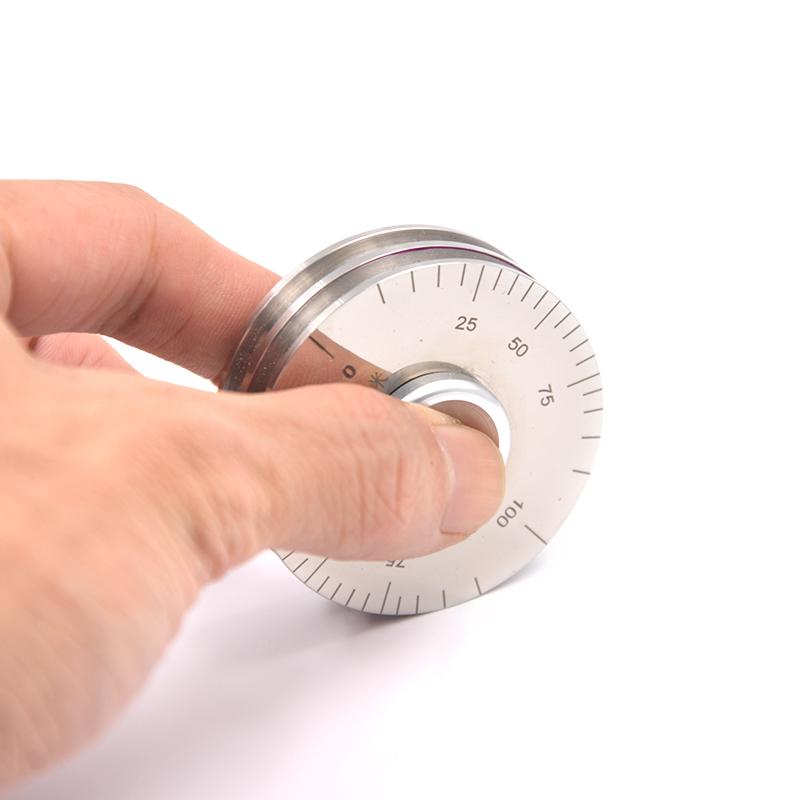

1. Place the wet film thickness gauge on the surface of the wet-film to be tested
2. Wet Film Wheel
3. Observe the position where the center wheel contacts the wet-film
4. Read the scale value corresponding to the contact point, which is the wet film thickness
Notice
• Ensure smooth surface of wet-film during measurement
When rolling, maintain a uniform speed to avoid jumping
• Keep your line of sight perpendicular to the scale when reading the scale
• After use, it should be cleaned in time to maintain instrument accuracy
• Avoid excessive pressure when coating is not curing
