PUSHEN BY Combination Pencil Hardness Tester Mitsubishi UNI pencil 14 pcs Load error +/- 10g

Name: PUSHEN BY Combination Pencil Hardness Tester Mitsubishi UNI pencil 14 pcs Load error +/- 10g
Brand: Pushen
SKU: NB018193
Price: 203.0 USD
Availability: InStock

$ 203.00Ex works

The 45 ° fixed angle design ensures that the cylindrical pencil lead maintains a constant angle and pressure; equipped with two additional weights to achieve three loads, the load error is controlled within +/- 10g, and 14 Mitsubishi UNI pencils are standard.

Model

Get Quote

Category : Pencil Hardness Tester

Brand : Pushen

SKU : NB018193

Service :The delivery and service By NBCLab.Com

Overview

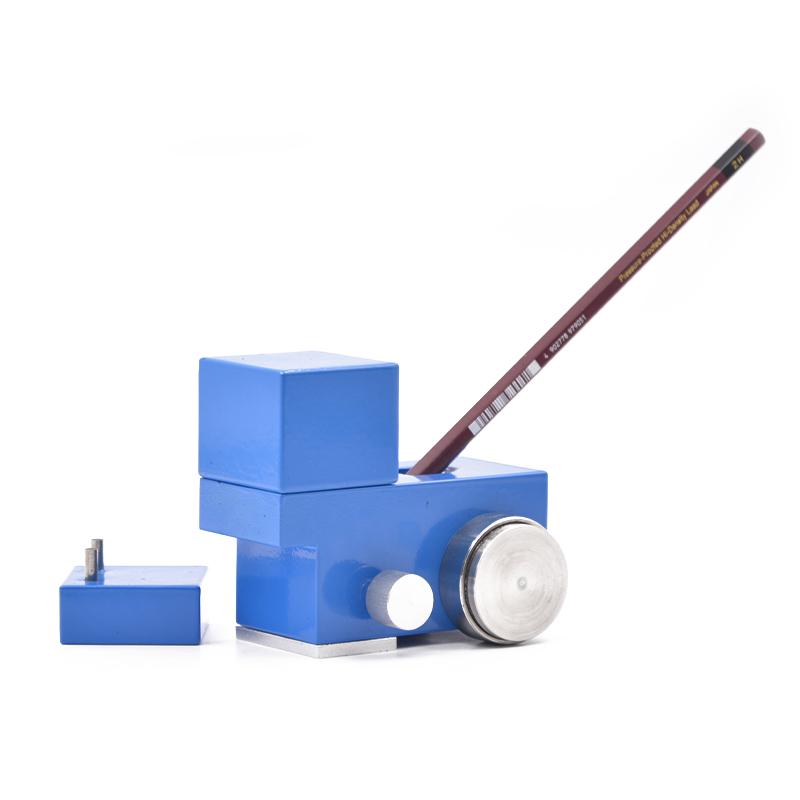

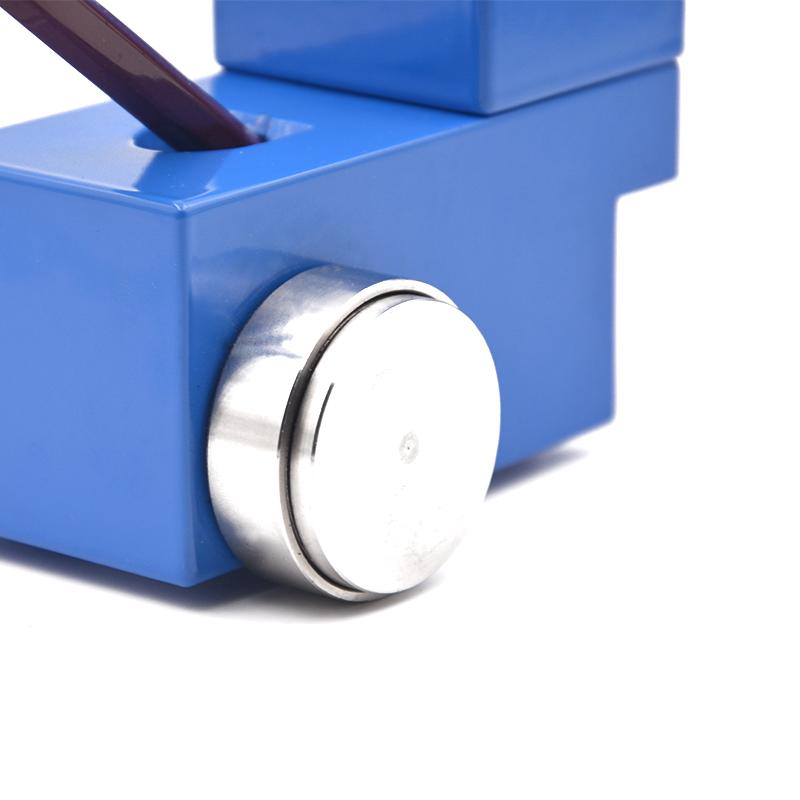

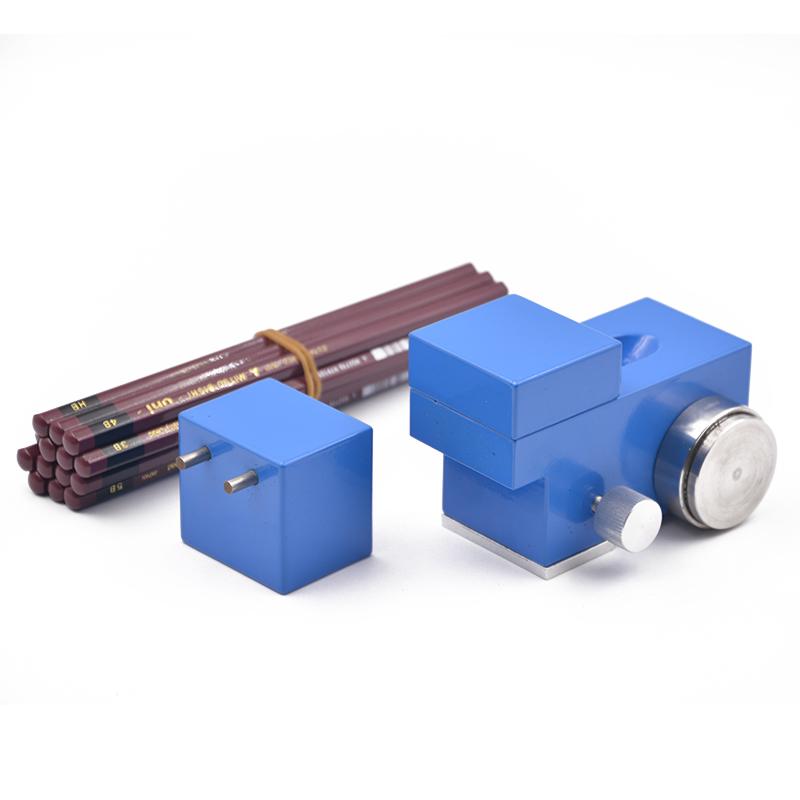

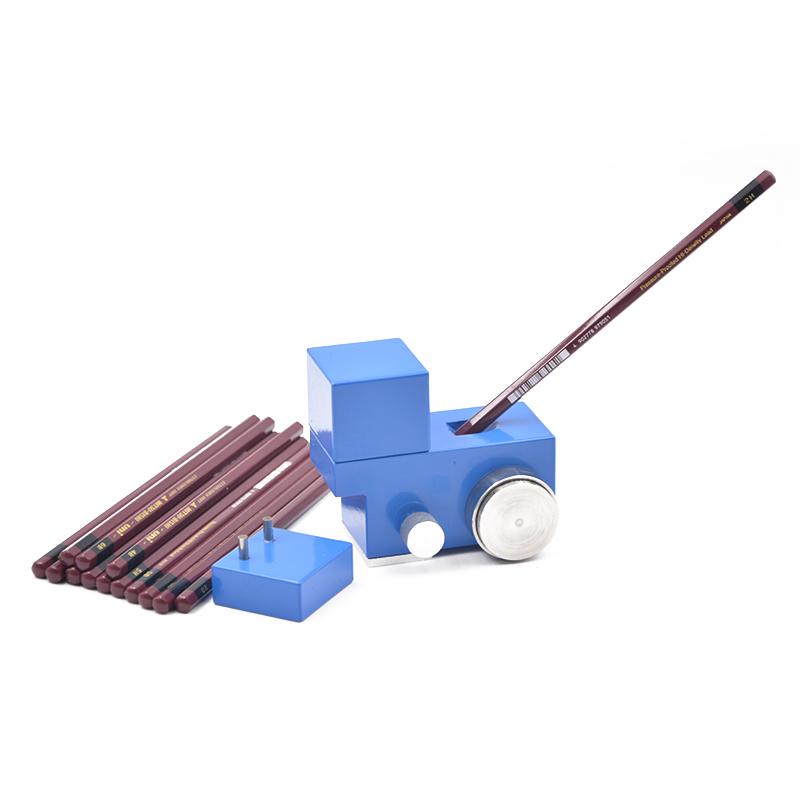

The PUSHEN BY combined pencil hardness tester is used to evaluate coating Hardness with graphite pencils with different Hardness values. The precision design ensures that the cylindrical pencil lead maintains a constant 45 ° angle and fixed pressure, contains two additional weights to achieve three loads, and determines the coating Hardness grade by the minimum Hardness value pencil that leaves a mark on the coating.

Features

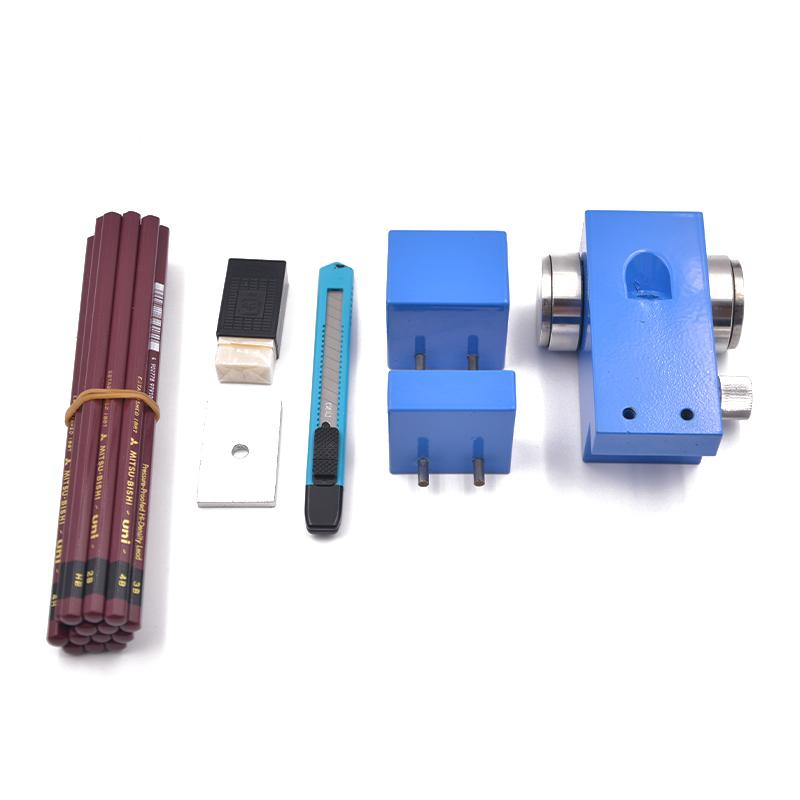

1. Precision design ensures that the pencil lead maintains a constant angle of 45 ° and a fixed pressure 2. Contains two additional weights to achieve three loads 3. Determine the coating Hardness level by the minimum Hardness value pencil trace 4. 14 Mitsubishi UNI pencils as standard

Principle

Pencil hardness tester experiments use graphite pencils with different Hardness values to evaluate coating Hardness. The cylindrical pencil lead is maintained at a constant 45 ° angle and fixed pressure, leaving a mark on the coating, and the Hardness grade of the coating is determined by the pencil with the minimum Hardness value that can leave a mark.

Standards

GB/T 6739、ISO 15184

Steps

Step 1 Choose the Right Pencils for Hardness 2. Fix the pencil lead at a 45 ° angle 3. Apply fixed pressure to move the coating surface 4. Observe whether the coating leaves traces 5. Determine the minimum Hardness value pencil that can leave a mark 6. Determine the coating Hardness grade according to the minimum Hardness value

load
500g/750g/1000g
Load weight
250g,500g
load error
±10g
pencil
14 Mitsubishi UNI pencils
Meet the standard
GB/T 6739、ISO 15184
