Overview

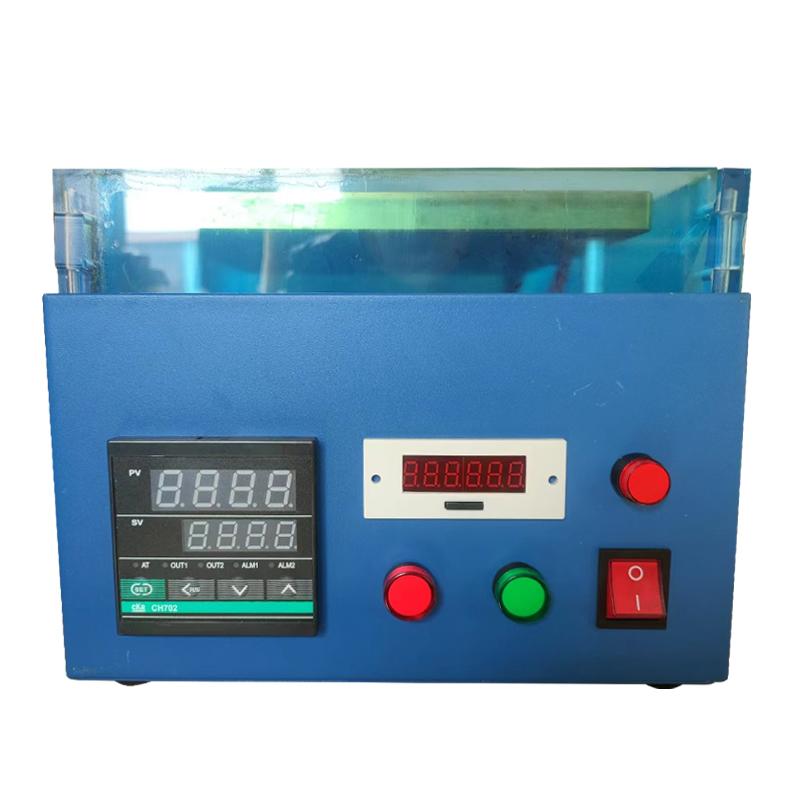

JINGKELIAN JHY gel time meter is dedicated to the determination of powder coatings and raw material gel time. The product adopts aluminum alloy working platform, long-life heating tube and PID intelligent temperature controller to realize automatic thermostatic, easy to operate, and can customize heating platforms of different sizes according to customer requirements.
Features
1. Use a good aluminum alloy working platform
2. Equipped with long-life heating tube
3. PID intelligent temperature controller realizes automatic thermostatic
4. Heating platforms of different sizes can be customized according to customer requirements
5. Small temperature error, high accuracy
Principle

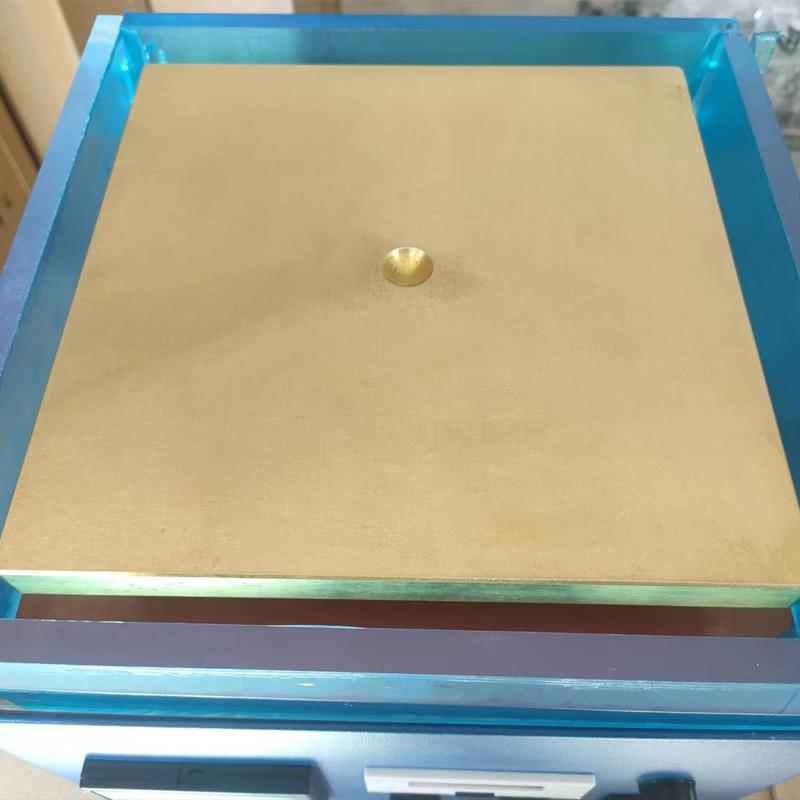

The instrument precisely controls the temperature of the heating platform through the PID intelligent temperature controller. When the temperature reaches the set value, the test sample is placed on the aluminum alloy panel for heating, and the material characteristics are determined by measuring the time required for the livering process.
Applications
Determination of powder coatings and gelling time
Standards
GB/T16995-1997、ISO8130-6
Steps
1. Connect the single-phase 220V power supply, close the power switch, and the indicator light is on to indicate normal power on.
2. Wait for the heating platform "PV" display temperature to reach the "SV" display set temperature
3. Put the circuit board with good solder paste and pasted parts on the aluminum alloy panel of the heating platform for heating

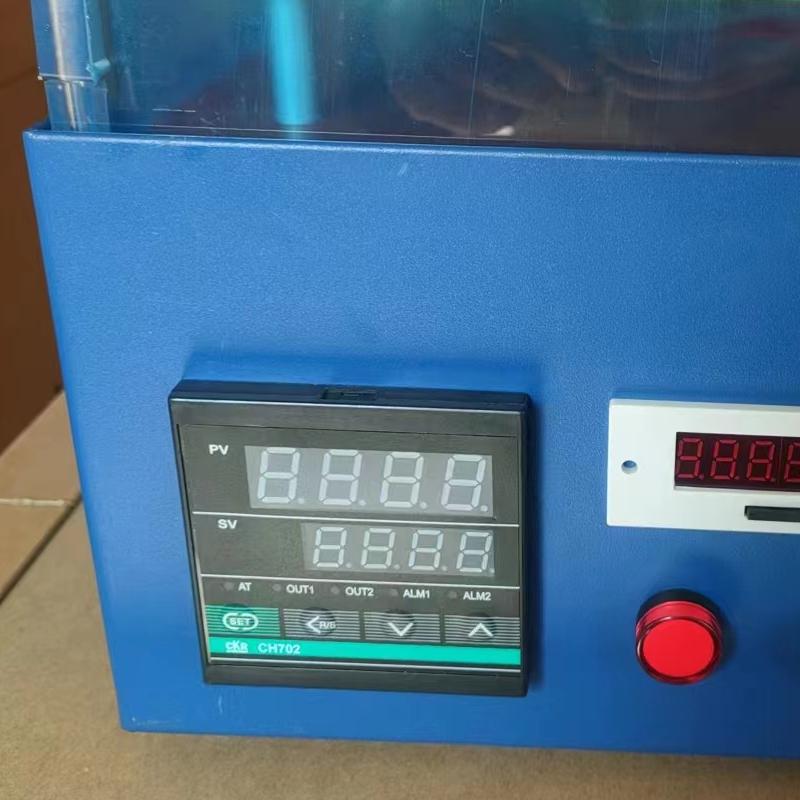

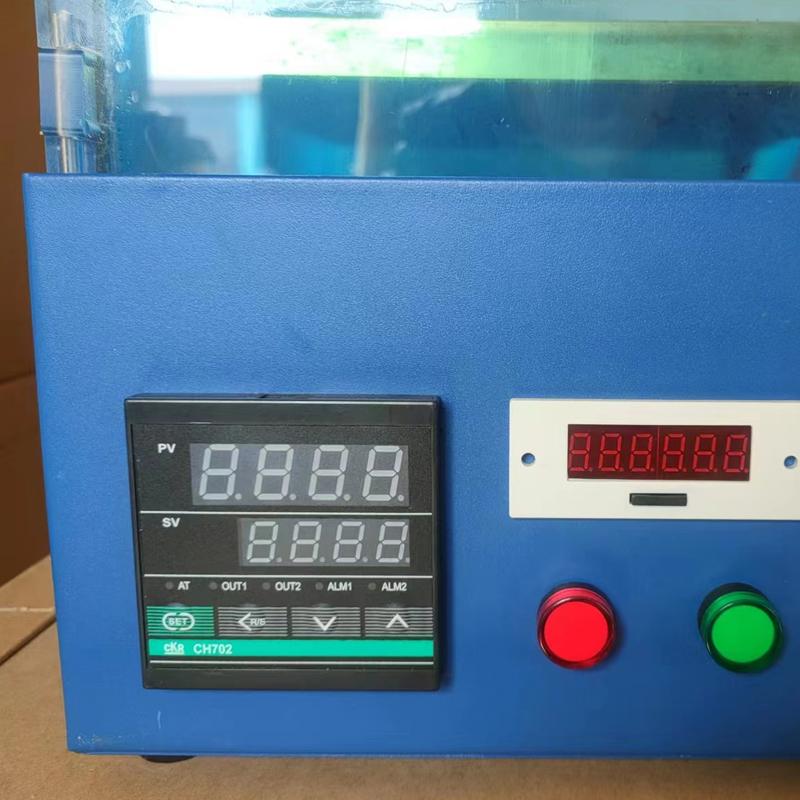

4. Temperature setting: Press the "SET" key to make the "SV" display digital flash, set the temperature through the "R/S" shift key, the "V" subtraction key and the "^" value-added key, and then press the "SET" key to confirm
Notice
• Use single-phase 220V lighting electricity

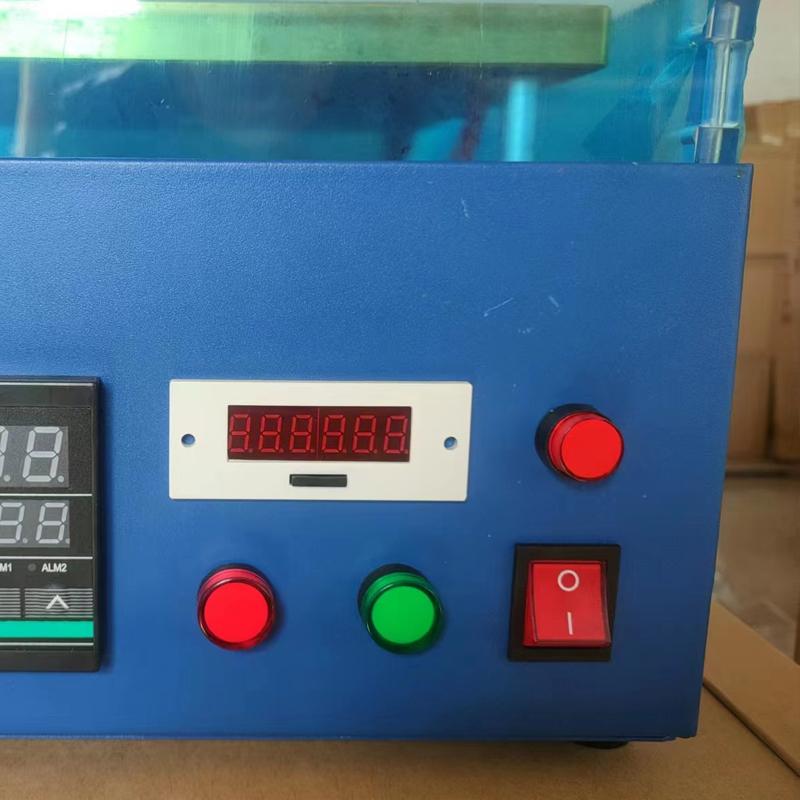

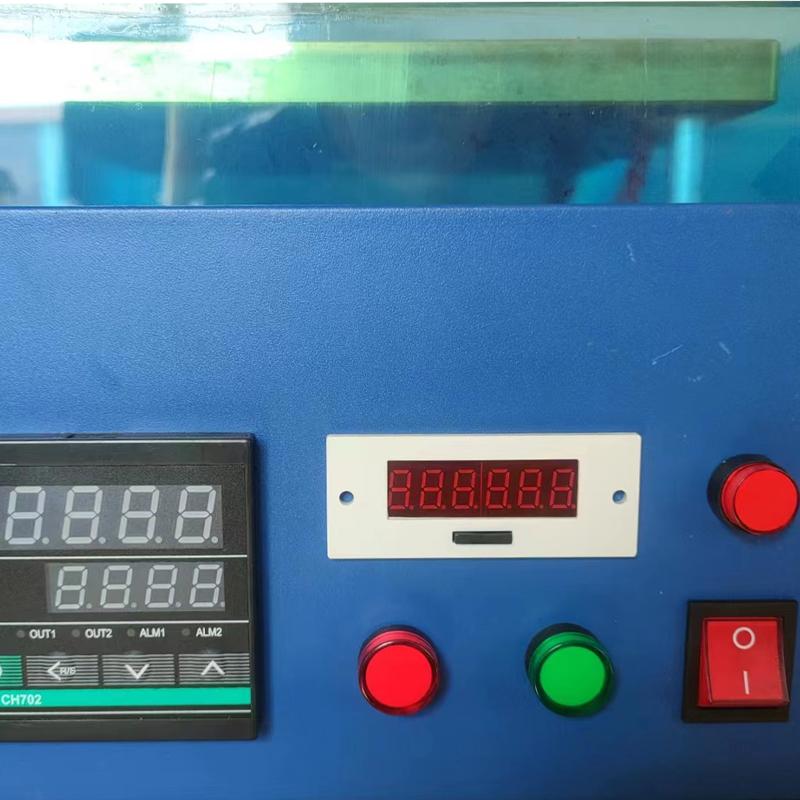

• The power switch indicator light is on to indicate normal power on.
• Powder coatings generally require a livering temperature of about 200 ° C, and the specific temperature can be agreed according to product requirements
• Pay attention to using the correct function keys when setting the temperature
