Overview

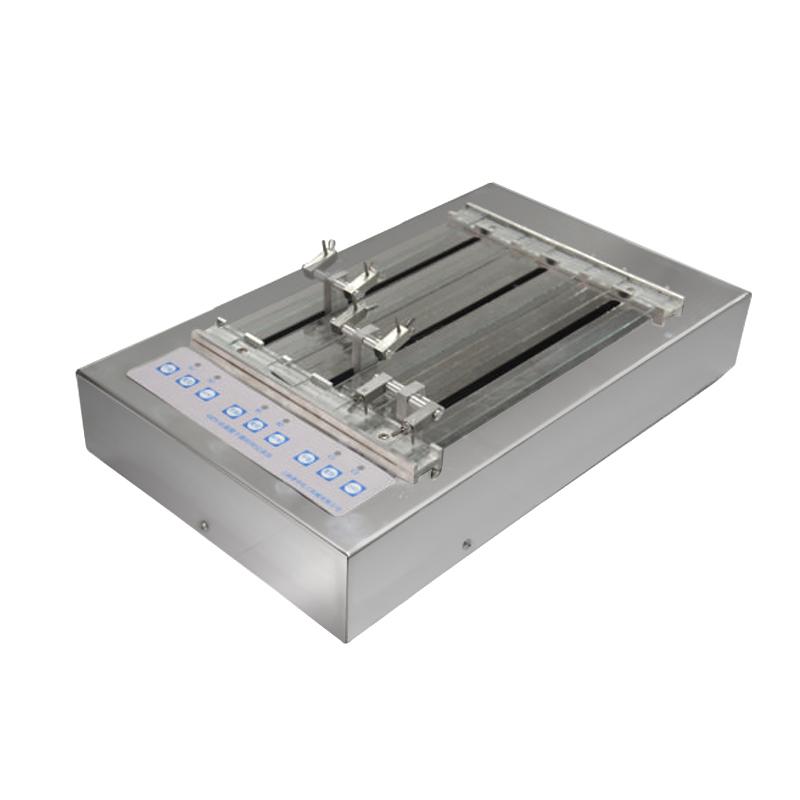

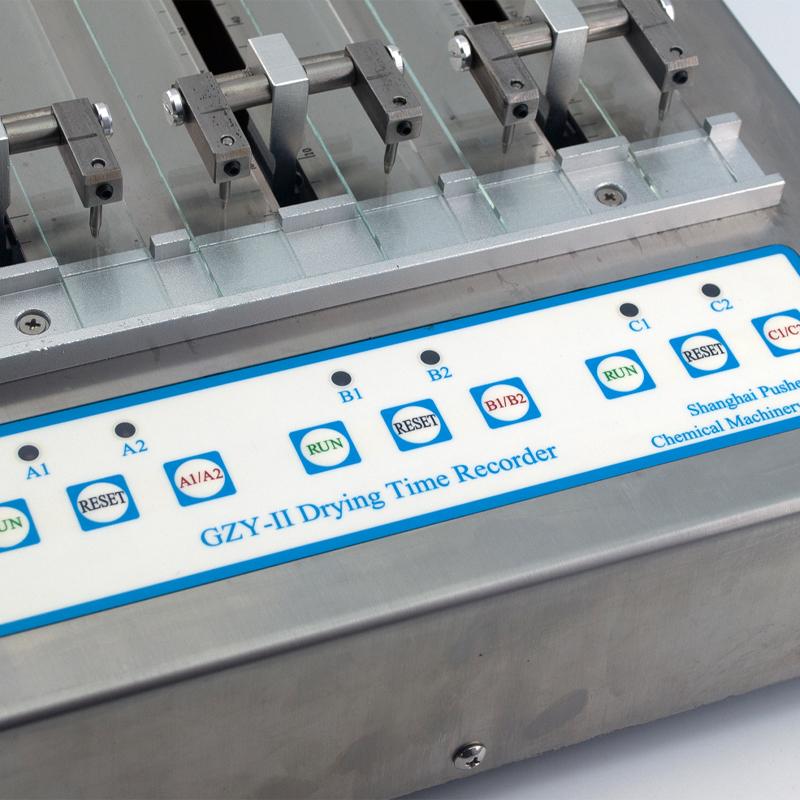

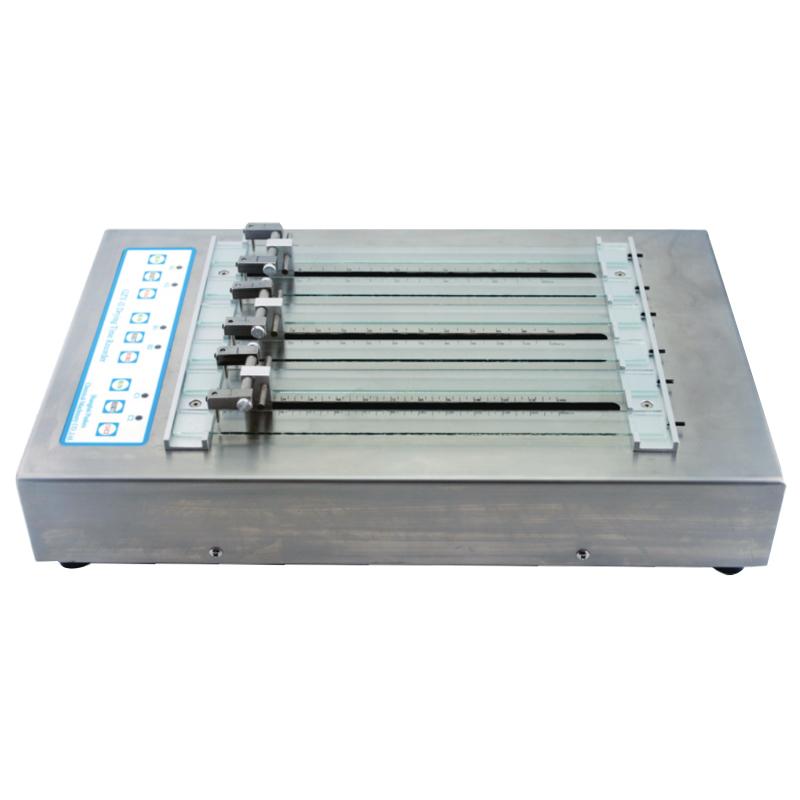

The GZY-II Linear Drying time Recorder is a professional testing equipment of the PUSHEN brand, mainly used to test the drying and curing time of coatings and paints. The instrument is equipped with six strokes with hemispherical contact points, which are installed on three independent slides. Each slide can set the running time individually, which is convenient for testing different samples at the same time.
Features
1. Equipped with six strokes, each with a hemispherical contact point, mounted on three independent carriages to support multi-sample testing
2. Each slide can be individually set to run time, flexible testing
3. The stroke rod is driven by the carriage to move vertically on the sample, and the moving time is measured by the scale
4. Support different track period settings: 1 hour/6 hours, 2 hours/12 hours, 3 hours/24 hours
5. Accessories include Cube film applicator and Spreader
Principle
The device is based on the characteristics of drying and curing of coatings and paints over time. By scribing on the coating, according to the mathematical formula "distance = speed × time", the carriage is used to drive the scribe from one end to move vertically on the specimen. By observing the various stages in drying of the scratch track, the corresponding moving time of the scale measurement is used to determine the drying and curing time.
Applications
Paints, paints
Standards
ISO9117-4、ASTMD5895
Steps
1. Spreader coatings on Glass strips 23mm wide and 340mm long using the Cube Applicator
2. Place the specimen on the instrument
3. Set the running time of each slide
4. Start the instrument, and the stroke rod is driven by the carriage to move vertically on the sample
5. Move time measurement by the scale on the side of the slide
6. Observe the stages in drying and record the results
Notice
• The coating needs to be pre-Spreader on the specified specification Glass strip
• The running time of each slide can be set separately
• Accurate measurement of moving time by scale
• Optional Accessories Cube film applicator, Spreader need to be purchased separately
• Input voltage is 220V AC 50Hz
• Dimensions and weight of equipment to ensure adequate installation space
