PUSHEN SLZ 38/76um Cube Applicator wet film thickness 38/76μm application width 12.7mm

Name: PUSHEN SLZ 38/76um Cube Applicator wet film thickness 38/76μm application width 12.7mm
Brand: Pushen
SKU: NB018647
Price: 149.0 USD
Availability: InStock

$ 149.00Ex works

Accurate single film, providing 38/76μm two film thickness selection, application width 12.7mm, accuracy of +/- 2μm/+/- 3μm, suitable for linear Drying Time Recorder.

Model

Get Quote

Category : Film Applicator

Brand : Pushen

SKU : NB018647

Service :The delivery and service By NBCLab.Com

Overview

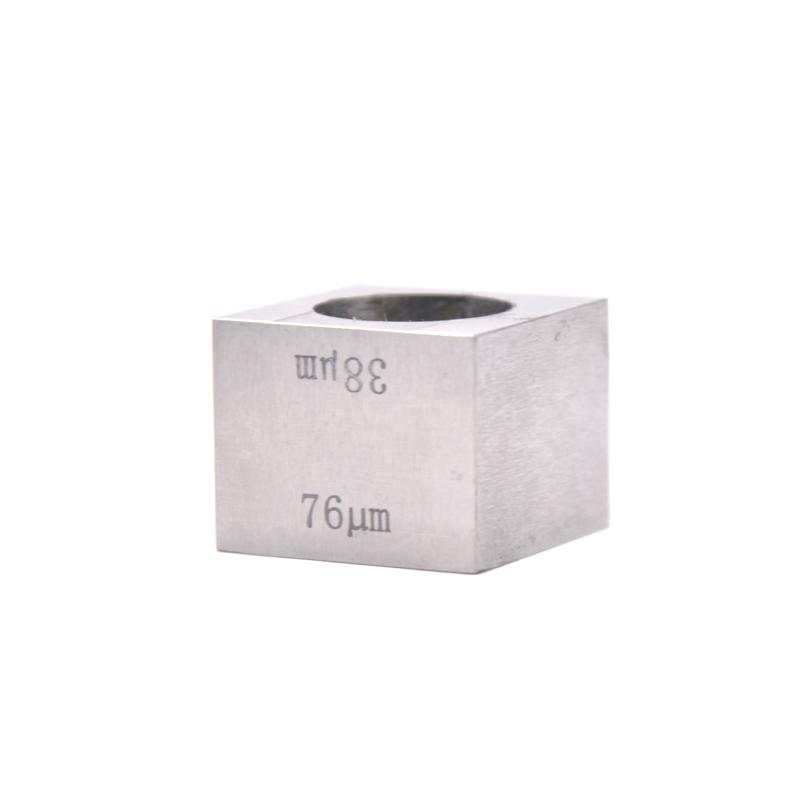

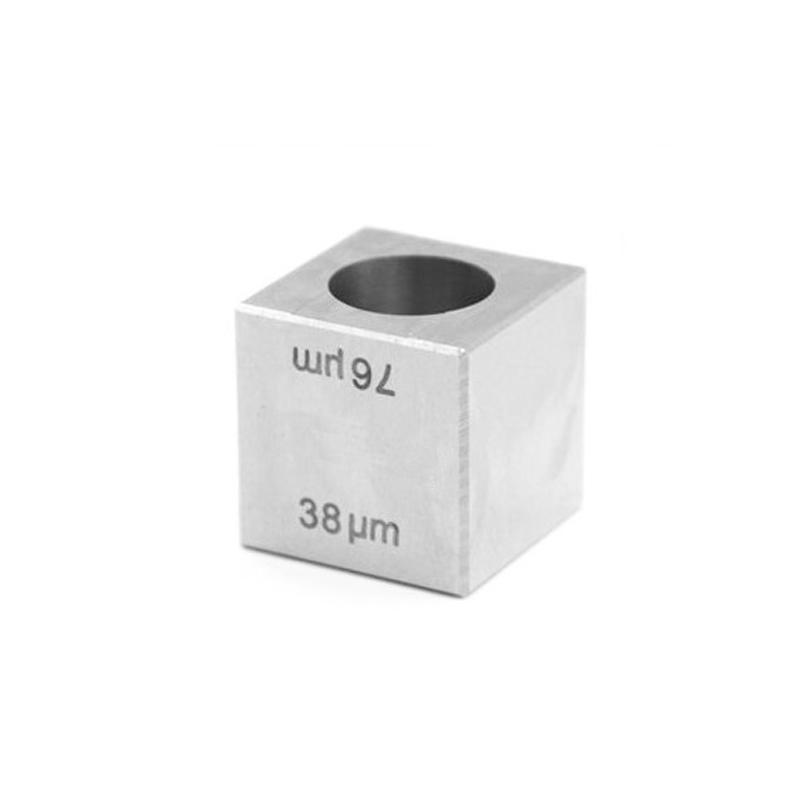

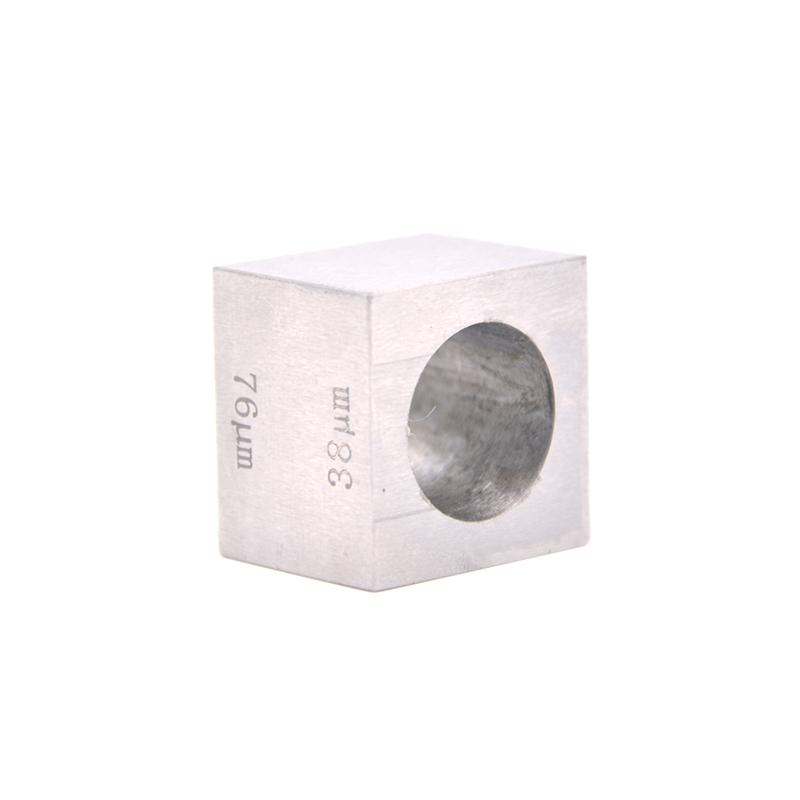

The PUSHEN SLZ 38/76a Cube Applicator is a professional film equipment for accurate single-column film operation. The equipment is suitable for preparing samples with a straight line Drying Time Recorder or comparing different formulations at the same time. Each cubic film applicator provides two film thickness specifications.

Features

Available in two wet film thickness specifications (38μm and 76μm) 2. Made of 1Cr17N2 material 3.The application width is 12.7mm 4. The accuracy reaches +/- 2μm/+/- 3μm 5. Cube design for easy operation

Principle

The Cube Applicator slides the specimen into a wet-film of a specified thickness at a uniform speed on the surface of the specimen. The Applicator slides over the fixed specimen at a speed of 150 mm/s, and the previous specimen is uniformly Spreader to form a wet-film of the desired thickness during the sliding process.

Applications

Measuring the hiding power of the sample, measuring the color of the sample, and preparing the sample

Standards

ASTMD 823

Steps

1. Place the template on the platform and fix it 2. Applicator for wet film thickness 3. Place the Applicator on the short side of the template close to parallel 4. Pour approximately 5 ml of sample in front of the Applicator 5. Press and hold both ends of the Applicator with your finger 6. Glide at a constant speed of 150 mm/s 7. Wash and dry with solvent after use 8. Apply lubricating oil to the surface

Notice

The template must not be moved when the Applicator slides by • Must be washed and dried with solvent after use • Apply lubricating oil to the surface after washing The sliding speed should be maintained at a constant speed of 150 mm/s

Type
Cube
wet film thickness
38/76μm
application width
12.7mm
accuracy
±2μm/±3μm
material
1Cr17N2
standard
ASTMD 823
