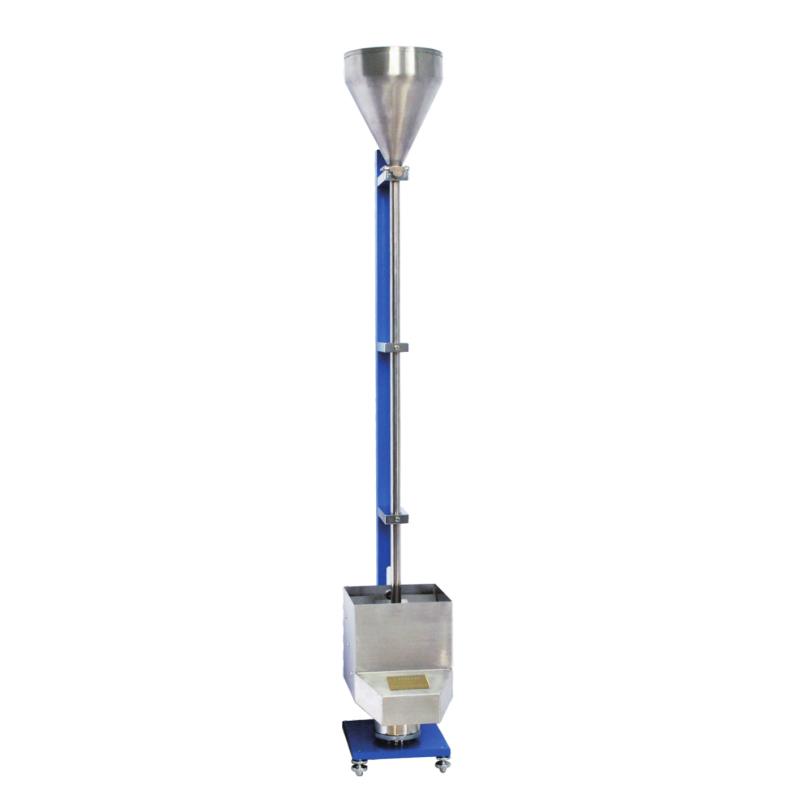

PUSHEN LS shakeout Tester Wear resistance testing apparatus ASTM standard

Name: PUSHEN LS shakeout Tester Wear resistance testing apparatus ASTM standard
Brand: Pushen
SKU: NB018684
Price: 598.0 USD
Availability: InStock

$ 598.00Ex works

Adopt 914mm pipe and 19mm inner diaMeter design, 45 degree test plate angle to ensure accurate impact of sand flow, adjustable height structure to meet different test needs

Model

Get Quote

Category : Abrasion (Falling Sand) Tester

Brand : Pushen

SKU : NB018684

Service :The delivery and service By NBCLab.Com

Overview

The shakeout tester (brand: PUSHEN, model: LS) is used to test the Abrasion Resistance of organic coatings under standard conditions. The device evaluates the abrasion resistance of coatings by dropping the abrasive from a specified height onto the painting plate until the substrate is exposed.

Features

1. Designed and manufactured according to ASTM standards, easy to operate; 2. Equipped with a switch to control sand flow; 3. The sand box is at a 45-degree angle to the vertical position, which is convenient for placing the test plate; 4. There are clamps on both sides of the sand box for tightening the test plate; 5. The lower part of the instrument is equipped with a high and low adjustment nut, which can adjust the distance from the pipe to the painted surface; 6. There are adjustment screws at the bottom to adjust the center position of the sand flow.

Principle

When testing the coating Abrasion Resistance, the abrasive falls from the specified height to the painted test plate through the conduit, and continues to sand until the test plate substrate is exposed. The abrasion resistance of the coating is represented by calculating the abrasion amount of the abrasion unit film thickness.

Standards

ASTM D968-83、JG/T 133-2000

Notice

• Ensure that the instrument is placed horizontally before use; • Regularly check the cleanliness of the catheter and sandbox; • Avoid sand blockage during operation; • Select appropriate abrasives according to standard requirements; • Clean the instrument in time after testing.

Dimension
230*200*1500mm
Machine weight
30kg
catheter length
914mm
catheter inner diameter
Ф19mm
Funnel Volume
3L
optional
Standard sand (20.25kg)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
