Overview

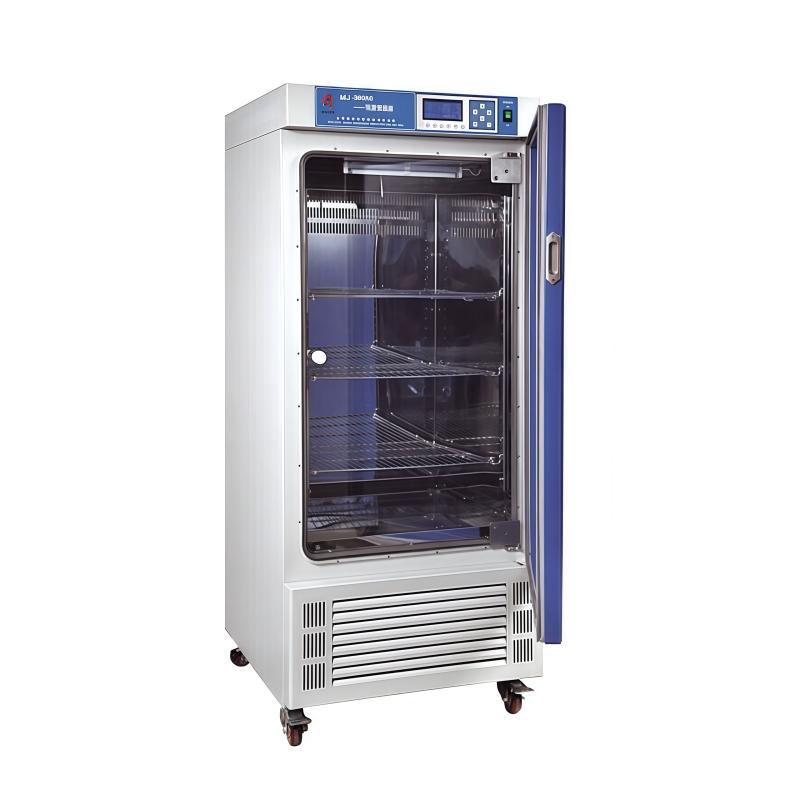

HUITAI MJ-70F-I mildew incubator is a thermostatic equipment specially used for environment protection, drug inspection, agricultural and livestock, aquatic products and other scientific research, universities and production departments. It is suitable for water body analysis and BOD determination, fostering, preservation, plant cultivation and breeding tests of bacteria, molds and microorganisms.
Features
1. Humanized design: large-screen LCD display, multiple sets of data are displayed on one screen, the menu-type Operating interface is simple and easy to understand; the mirror stainless steel liner is easy to clean, and the shelf spacing is adjustable; the use of refrigerants without fluorine can effectively save energy; the optional test hole is convenient for experimental operation.
2. Quality assurance: use brand Compressor and self-developed cooling system to extend life; JAKEL tube flow circulating fan and unique air duct to ensure Temperature uniformity; PID Control mode temperature control is accurate, with timing function.
3. UV sterilization system: located on the top layer of the box, effectively killing floating bacteria and preventing pollution.
4. Intelligent LCD programmable multi-stage controller (optional): 15 30-step programs can be preset, and each setting time is 1 to 99 hours and 99 minutes to achieve automatic control.
5. Independent temperature limit alarm system (optional): over-temperature automatic interruption and sound and light alarm to ensure safety.
6. Convenient data processing (optional): With USB or RS485 interface, you can connect a printer or computer to record temperature parameters.
Principle
The incubator precisely adjusts the temperature through PID Control mode, uses brand Compressor and self-developed cooling system to achieve refrigeration, combines JAKEL tube flow circulating fan and unique air duct structure to form an air circulation system to ensure uniform temperature in the box. The ultraviolet sterilization system kills floating bacteria in the circulating air, prevents pollution, and realizes microbial fostering in a thermostatic environment.
Applications
Environment protection, drug inspection, agriculture and livestock, aquatic products, scientific research, colleges and universities, production departments, water analysis, BOD determination, bacterial foster, mold foster, microbial foster, preservation, plant cultivation, breeding test
Steps
1. Turn on the power supply and set the required temperature and time parameters.
2. Adjust the shelf spacing in the box as needed.
3. Start the device and monitor the LCD display data.
4. When using optional functions such as programming controller or data processing interface, press the menu interface.
Notice
• Power supply voltage is AC 220V 50Hz/10A before use to avoid overload.
• Regularly clean the mirror stainless steel liner to maintain hygiene.
• Pay attention to the sound and light prompts of the independent temperature limit alarm system when overheating, and deal with it in time.
• Pay attention to safe operation when using the optional test hole.
• Check the Compressor status after long-term operation to ensure normal use.
