Overview

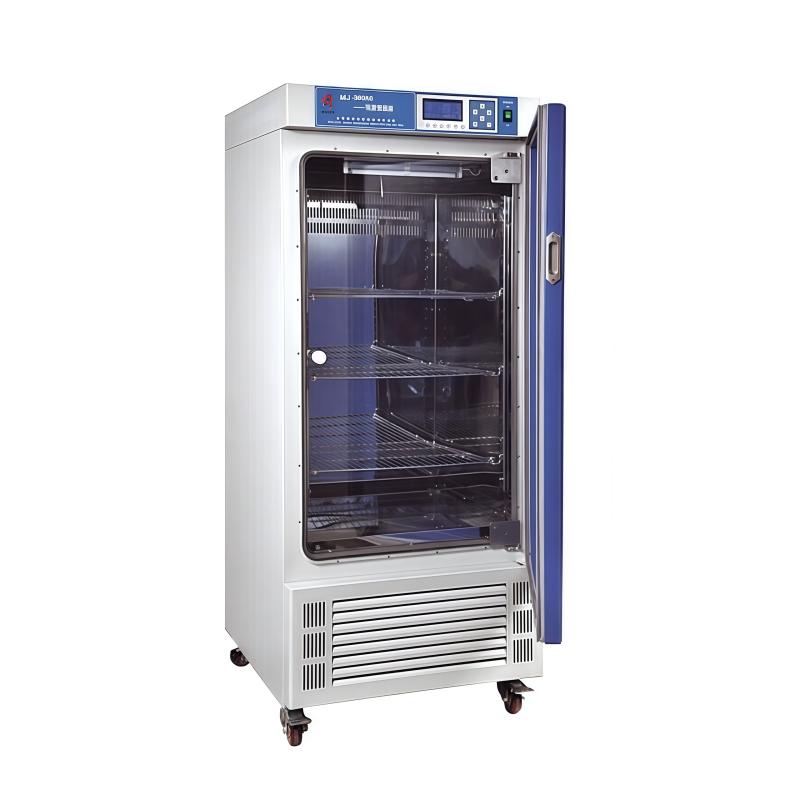

HUITAI MJ-1000F-I mildew incubator is a thermostatic equipment specially used for environment protection, drug inspection, agricultural livestock, aquatic and other scientific research, institutions and production departments. It is suitable for water body analysis and BOD determination, as well as the fostering, preservation, plant cultivation and breeding experiments of bacteria, molds and microorganisms.
Features
1. Humanized design: Large-screen LCD display, multiple sets of data are displayed on one screen, the menu-type Operating interface is simple and easy to understand; Mirror stainless steel liner, four corners and half arc design is easy to clean, and the shelf spacing in the box is adjustable; use without fluorine refrigerant, effective energy saving and environmental protection; The left side of the box can be equipped with test holes, which is convenient for experimental operation and Measuring temperature.
2. Quality assurance: using brand Compressor, independent research and development of cooling system to extend Compressor life; JAKEL tube flow circulating fan and unique air duct structure to ensure Temperature uniformity in the box; PID Control mode, accurate temperature control and small fluctuations, with timing function.
3. Ultraviolet sterilization system: located on the top layer of the box, effectively killing floating bacteria in the circulating air and preventing cell fostering pollution.
4. Intelligent LCD programmable multi-stage controller (optional): 15 stages and 30 steps can be preset, each setting time is 1 to 99 hours and 99 minutes, simplifying the complex test process.
5. Independent temperature limit alarm system (optional): If the temperature exceeds the limit, the operation will be automatically interrupted, and the sound and light alarm will prompt to ensure the safety of the experiment.
6. Convenient data processing (optional): With USB or RS485 interface, you can connect a printer or computer to record temperature parameter changes.
Principle
The mildew incubator precisely adjusts the temperature through the PID Control mode, and the temperature control is accurate with small fluctuations. The JAKEL tube flow circulating fan and unique air duct structure are used to form a good air circulation system to ensure uniform temperature in the box. The ultraviolet sterilization system is located on the top layer of the box to kill floating bacteria in the circulating air and prevent pollution. Optional intelligent program controller realizes multi-stage programmable control to simplify the test process.
Applications
Environment protection, drug inspection, agriculture and livestock, aquatic products, scientific research, colleges and universities, production departments
Steps
1. Turn on the power supply and set the required temperature and time parameters.
2. Adjust the shelf spacing in the box as needed.
3. Start the device and monitor temperature changes.
4. Optional function: use the intelligent program controller to preset multi-segment programs, or connect the data processing interface to record data.
5. After the experiment, turn off the power and clean the liner.
Notice
• Power supply voltage is AC 220V 50Hz/25A before use to avoid overload.
• Regularly clean the mirror stainless steel liner to maintain hygiene.
• Pay attention to safety during operation and avoid touching high-temperature parts.
• When an independent temperature limit alarm system is selected, monitor the alarm prompt to prevent the temperature from exceeding the limit.
• When the UV sterilization system is running, avoid directly looking at the UV rays.
• Optional accessories must be installed and used correctly, follow the instructions.
