Overview

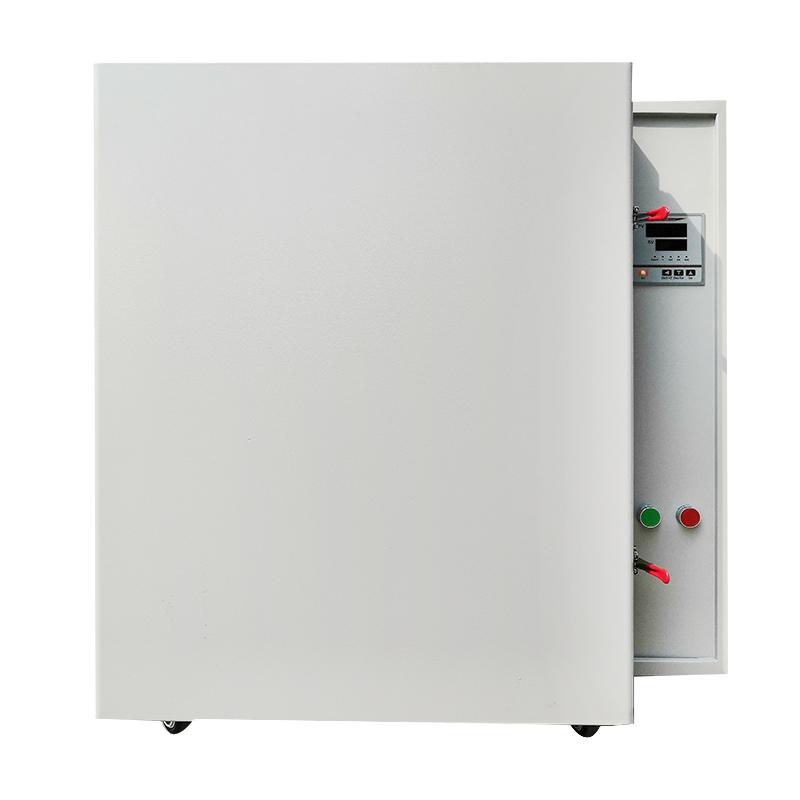

HUITAI HHG-9148A high temperature blast drying oven is a equipment specially designed for industrial and mining enterprises, laboratory outdoors, R & D institutions, etc., for drying, baking, wax, sterilizing and other purposes. The equipment adopts high-quality steel plate or stainless steel plate studio, equipped with microcomputer intelligent temperature control instrument and hot air circulation system to ensure accurate and uniform temperature control.
Features
1. The studio is made of good steel or stainless steel.
2. Microcomputer intelligent temperature control instrument, with setting and measuring temperature dual digital display, timing, Power suppression and self-tuning functions, accurate and reliable temperature control.
3. The hot air circulation system is composed of low-noise fans and air ducts to effectively ensure uniform temperature in the working room.
4. Optional independent temperature limit alarm system, beyond the limit temperature will be automatically interrupted to ensure the safe operation of the experiment without accidents.
Optional RS485 interface can be connected to a recorder and a computer to record changes in temperature parameters.
Principle
The high-temperature blast drying oven precisely sets and adjusts the temperature through a microcomputer intelligent temperature control instrument. Combined with the hot air circulation system, the hot air is evenly distributed in the working room by a low-noise fan and air duct to realize the process of drying and baking. The optional temperature limit alarm system automatically interrupts the operation when the temperature exceeds the limit to ensure safety.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
Connect the power supply and ensure that the voltage is AC220V 50Hz/16A.
2. Use a microcomputer thermostat to set the required temperature (range RT + 20~ 400 ° C) and timing time (1~ 9999min).
3. Start the equipment and the hot air circulation system starts to work to ensure uniform temperature.
4. Monitor the temperature display, and use Optional accessories such as temperature limit alarm system or RS485 interface to record if necessary.
5. After completing the operation, turn off the device and disconnect the power.
Notice
- Power supply voltage meets AC220V 50Hz/16A requirements to avoid overload.
- Pay attention to the temperature setting during operation to prevent exceeding the equipment limit.
- Optional accessories such as temperature limit alarm system and RS485 interface need to be installed and used correctly.
- Regularly check the condition of the studio and shelves and keep them clean.
Avoid use in humid or flammable environments to ensure safety.
