Overview

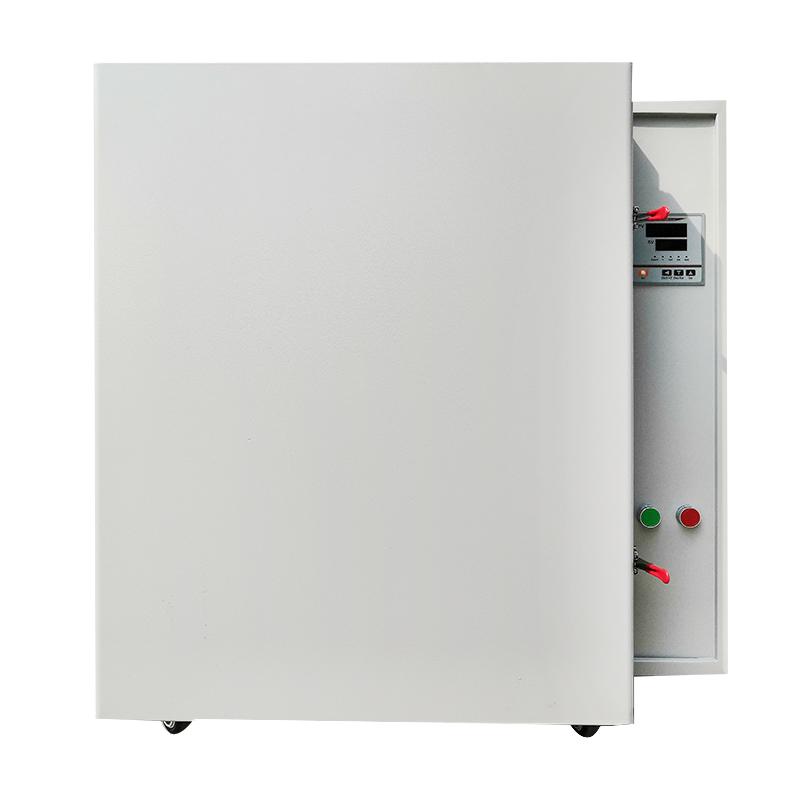

HUITAI HHG-9248A high temperature blast drying oven is a equipment specially designed for industrial and mining enterprises, laboratories and R & D institutions, suitable for drying, baking, wax melting and sterilizing purposes. The equipment is made of high-quality steel or stainless steel plate studios, equipped with a microcomputer intelligent temperature control system and a hot air circulation system to ensure precise and uniform temperature control.
Features
1. The studio is made of high-quality steel or stainless steel, which is durable and reliable.
2. Microcomputer intelligent temperature control instrument, with setting, measuring temperature double digital display, timing, Power suppression and self-tuning functions, accurate and reliable temperature control.
3. The hot air circulation system is composed of low-noise fans and air ducts to effectively ensure uniform temperature in the working room.
4. Optional independent temperature limit alarm system, beyond the limit temperature will be automatically interrupted to ensure the safe operation of the experiment.
5. Optional RS485 interface, which can be connected to a recorder and a computer to record changes in temperature parameters.
Principle
The high temperature blast drying oven precisely sets and adjusts the temperature through a microcomputer temperature controller, and uses the hot air circulation system to evenly distribute the hot air into the working room to achieve rapid heating and maintain temperature stability. The optional temperature limit alarm system automatically cuts off the power when the temperature exceeds the limit to ensure safe operation.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
Connect the power supply and ensure that the voltage is AC220V 50Hz/16A.
2. Turn on the power switch of the device.
3. Use a microcomputer thermostat to set the required temperature and time (Timer Range 1~ 9999min).
4. Start the equipment, the hot air circulation system starts to work, and the temperature display is monitored.
5. After use, turn off the power and clean the studio.
Notice
• Ensure that the input Power does not exceed 4000W to avoid overload.
• Power supply voltage check before use meets AC220V 50Hz requirements.
• Regularly clean the studio and air duct to keep the equipment in good working condition.
• If a temperature limit alarm system is selected, its function should be tested regularly to ensure safety.
• Avoid touching high-temperature parts during operation to prevent burns.
