Overview

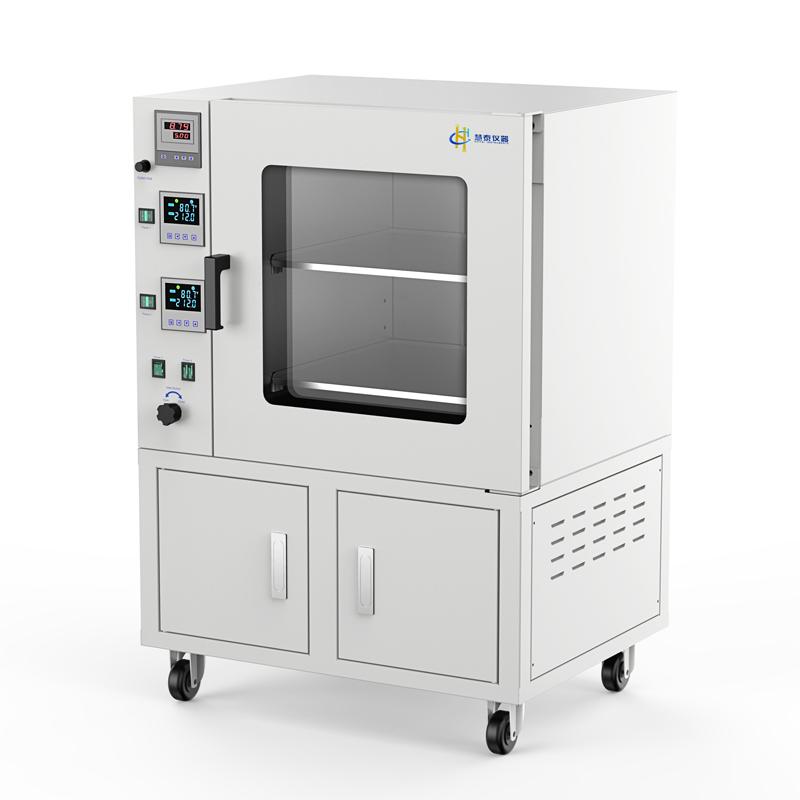

HUITAI HTZ-6020L vacuum degree digital drying oven is a professional equipment using vacuum drying technology, which is widely used in biochemistry, chemical industry, agricultural research, environment protection and other fields. It is suitable for powder drying, baking and sterilizing of various Glass containers. It is especially suitable for rapid and effective drying of heat-sensitive, easy analysis, easy oxidation substances and complex components.
Features
1. Digital vacuum gauge automatically control Vacuum Level, control range 1.0 × 10 to 1.0 × 105Pa, accuracy +/- 1%, resistance silicon tube pressure sensor to ensure stability
2. The heating element is located on the Shelf inside the box, and the heating time is 50% shorter than that of the traditional Vacuum oven.
3. Special process stamping aluminum shelf, high temperature non-oxidation, heat conduction fast, reduce heat loss
4. The cuboid studio has a large effective volume utilization rate, and the microcomputer temperature controller has accurate and reliable temperature control
5. Tempered Bulletproof Double-decked Glass Door for Easy Viewing and Can Be Filled with Inert Gas
6. Box door closed elastic adjustable, integrally formed silicone rubber door seal to ensure high Vacuum Level
7. The studio is made of stainless steel, and the shell is electrostatic spraying on the surface of Cold rolled steel plate
8. Operate in an oxygen-free or inert gas environment to avoid oxidation
Principle
Vacuum drying technology significantly reduces the boiling point of liquids by creating a vacuum environment, making heat-sensitive substances easy to dry; vacuum conditions can effectively shorten the drying time of powder or granular samples, and ensure that there is no residue after drying of complex structure samples; operating under vacuum or inert conditions can eliminate the risk of thermal explosion of oxides, and powder samples will not be disturbed by airflow.
Applications
Biochemistry, chemical industry, agricultural research, environment protection
Steps
1. Place the sample on the aluminum shelf in the studio
2. Adjust the closure tightness of the box door to ensure sealing
3. Set Required Vacuum Level and Temperature Parameters via Panel
4. Start the equipment for drying
5. After drying can be filled with inert gas (if necessary)
6. Remove the sample and clean the equipment
Notice
• Power supply voltage AC220V 50Hz/10A before use to avoid overload
• When operating, pay attention to the Vacuum Level control within the specified range to prevent equipment damage
• The sealing ring of the box door needs to be checked regularly to ensure that the Vacuum Level is maintained
• When drying heat-sensitive substances, the temperature should be strictly controlled to avoid overheating
Do not frequently open and close the box door during the operation of the equipment to maintain a stable vacuum environment
• Use a soft cloth when cleaning to avoid scratching the surface of the stainless steel studio
