Overview

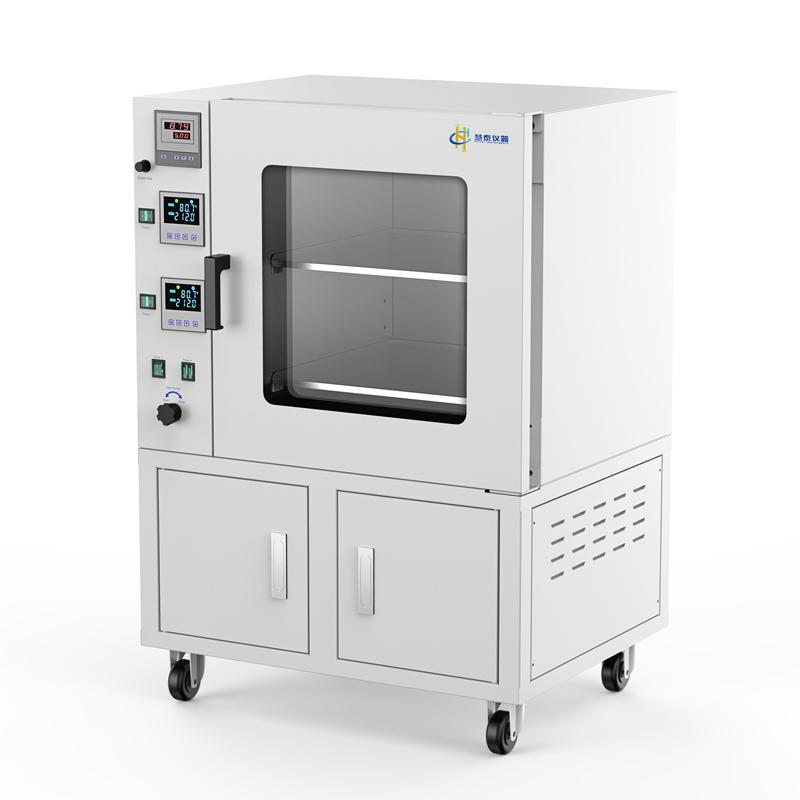

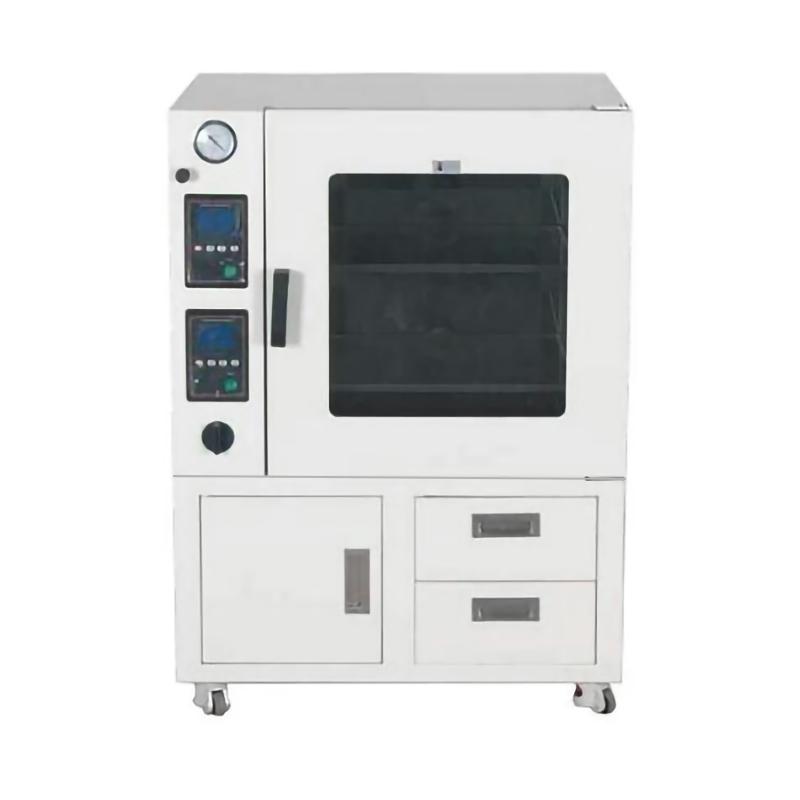

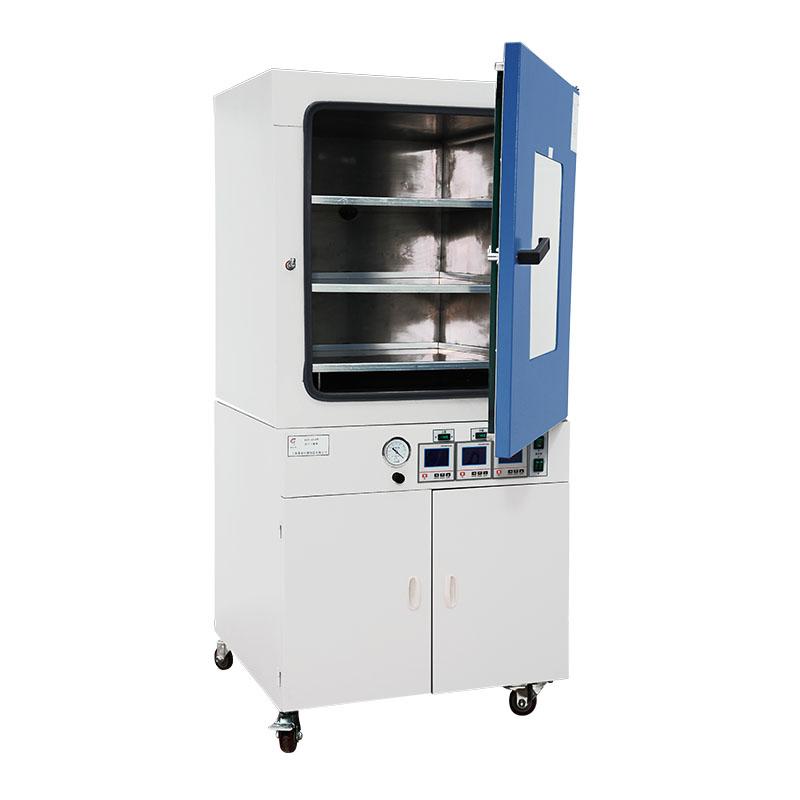

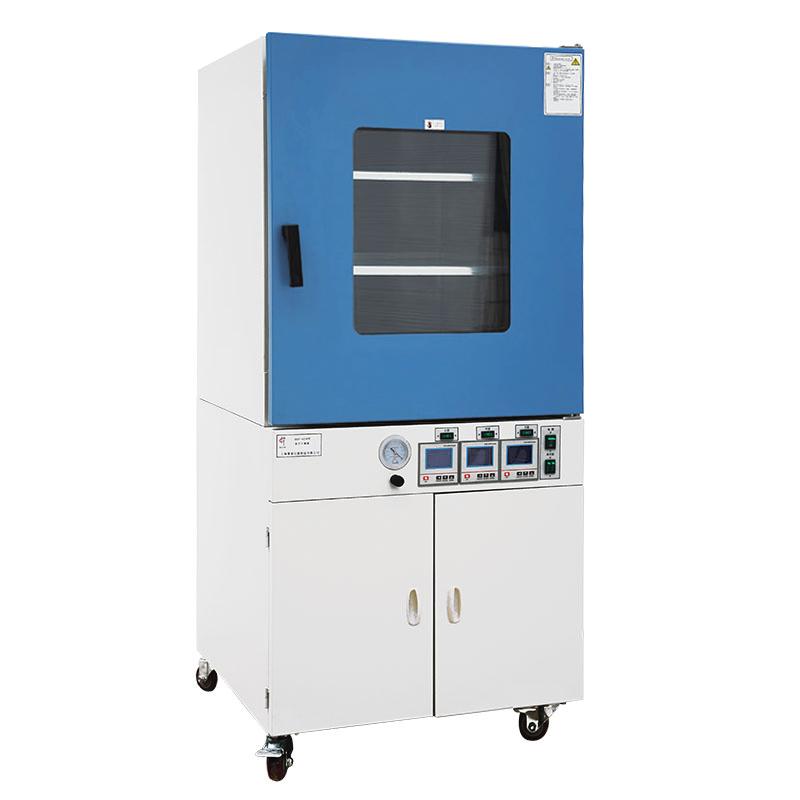

HUITAI HTZ-6050L vacuum degree digital drying oven is a professional drying equipment, widely used in biochemistry, chemical industry, agricultural research, environment protection and other fields, suitable for powder drying, baking and disinfection and sterilization of various Glass containers. Especially suitable for fast and effective drying treatment of heat sensitivity, easy analysis, easy oxidation substances and complex components.
Features
1. Digital vacuum gauge automatically controls Vacuum Level, control accuracy +/- 1%, can be precisely controlled in the range of 1.0 × 10 to 1.0 × 105Pa
2. The heating element is located on the Shelf inside the box, and the heating time is 50% shorter than that of the traditional Vacuum oven.
3. Special process stamping aluminum shelf, high temperature non-oxidation, fast heat conduction, reduce heat loss
4. Cuboid studio design, large effective volume utilization, accurate and reliable temperature control by microcomputer temperature controller
5. Tempered bulletproof double-decked Glass Door for easy observation, can be filled with inert gas
6. Box door closed elastic adjustable, integrally formed silicone rubber door seal to ensure high Vacuum Level
7. The studio adopts stainless steel plate, and the shell adopts Cold rolled steel plate surface electrostatic spraying
8. Work in an oxygen-free or inert gas environment to avoid oxidation
Principle
Vacuum ovens greatly reduce the boiling point of liquids that need to be expelled by working in a vacuum environment, enabling heat-sensitive substances to dry at lower temperatures. The vacuum environment effectively shortens the drying time, especially for powder or granular samples, while eliminating the risk of thermal explosion of oxides and ensuring safe operation.
Applications
Biochemistry, chemical industry, agricultural research, environment protection
Steps
1. Put the items to be dried into the studio
2. Adjust the closure tightness of the box door
3. Set the Required Vacuum Level via Panel
4. Set temperature and time parameters
5. Start the equipment to start the drying process
6. Remove items after drying
Notice
• Make sure the door is well sealed before use
• Pay attention to the control accuracy requirements when setting the Vacuum Level
• Avoid suddenly opening the box door during the heating process
• Regularly check the status of silicone rubber door seals
• Keep equipment well ventilated
• Clean the studio promptly after use
