Overview

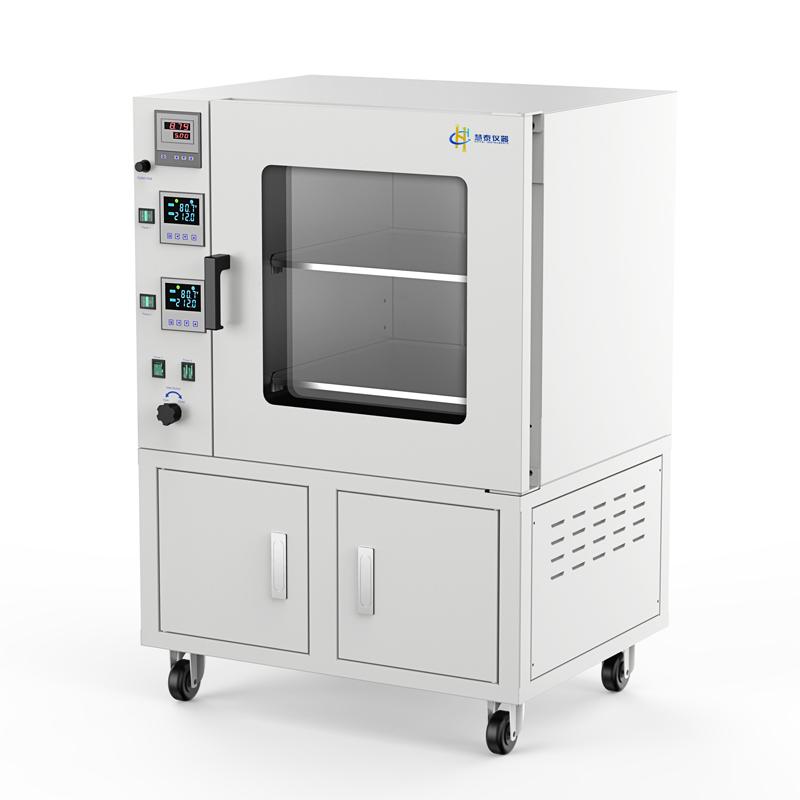

HUITAI HTZ-6210L vacuum degree digital drying oven is a professional drying equipment, which is widely used in biochemistry, chemical industry, agricultural research, environment protection and other fields. It is suitable for powder drying, baking and sterilization of various Glass containers. Especially suitable for rapid and effective drying treatment of heat sensitive, easy analysis, easy oxidation substances and complex components.
Features
1. Digital vacuum gauge automatically controls Vacuum Level, control range 1.0 × 10 to 1.0 × 105Pa, accuracy +/- 1%
2. The heating element is located on the Shelf inside the box, and the heating time is reduced by 50%.
3. Special process stamping aluminum shelf, high temperature non-oxidation, fast heat conduction, reduce heat loss
4. Cuboid studio, large effective volume utilization rate, accurate and reliable temperature control by microcomputer temperature controller
5. Tempered Bulletproof Double-decked Glass Door, Viewing Studio and Filled with Inert Gas
6. Box door closed elastic adjustable, integrally formed silicone rubber door seal to ensure high Vacuum Level
7. The studio adopts stainless steel plate, and the shell adopts Cold rolled steel plate surface electrostatic spraying
8. Work in an oxygen-free or inert gas environment to prevent oxidation
Principle
Vacuum oven greatly reduces the boiling point of the liquid that needs to be expelled by working in a vacuum environment, allowing heat-sensitive substances to dry easily. The vacuum environment effectively shortens the drying time, ensures that the sample does not leave residue through drying, and eliminates the risk of thermal explosion of oxides under vacuum or inert conditions.
Applications
Biochemistry, chemical industry, agricultural research, environment protection
Steps
1. Put the sample in the studio.
2. Adjust the closure tightness of the box door
3. Set the Required Vacuum Level via Panel
4. Set temperature and time parameters
5. Start the equipment to start the drying process
6. Remove the sample after drying
Notice
• Power supply voltage meets AC220V 50Hz/16A requirements before use
• Temperature range RT + 10~ 250 ℃
• Regularly Check Door Seals to Ensure Vacuum Levels
Avoid operating in non-vacuum or non-inert gas environments to prevent oxidation
• Pay attention to the equipment Dimension 720 * 805 * 1680mm to ensure sufficient installation space
