Overview

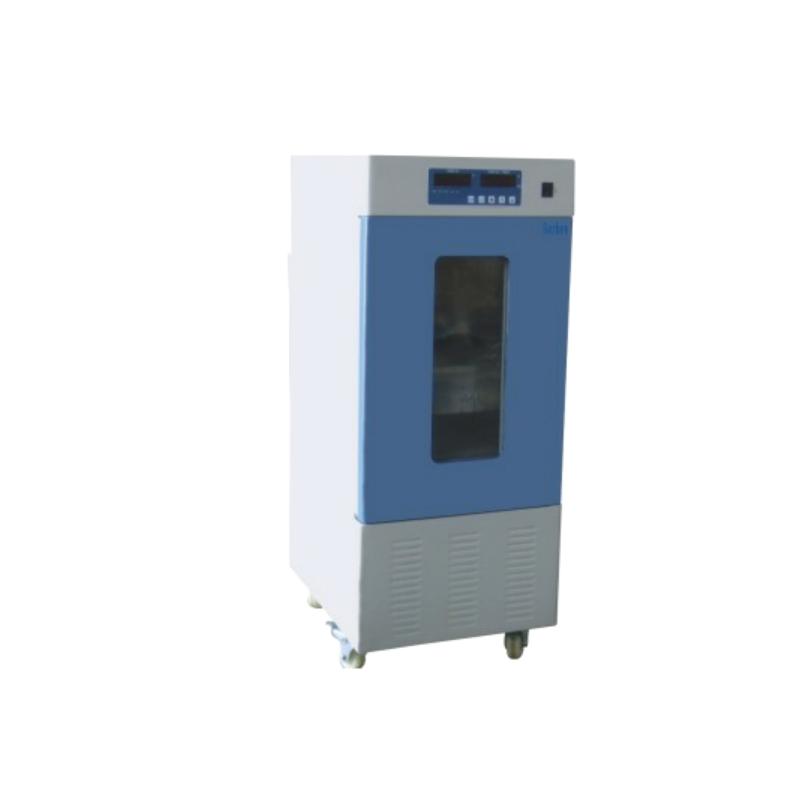

BOZHEN MJX-70 mildew incubator is a new fluorine-free design experimental equipment, using brand-name Compressor and circulating fan, equipped with a large LCD screen, easy to operate, high efficiency and low energy consumption. The equipment is not only energy-saving and environmentally friendly, but also has the characteristics of long service life and low noise. Compared with traditional refrigeration equipment, the cooling time is reduced by more than 40%.
Features
1. Mirror stainless steel liner and steel plate spray box, four corners and half arc design, easy to clean, adjustable Shelf spacing inside the box.
2. Intelligent digital thermostatic instrument, the interface is simple and easy to understand, easy to observe and operate.
3. Equipped with a fuzzy PID intelligent temperature controller, with small temperature fluctuations and support for timing functions (0-9999 minutes).
4. Equipped with an independent temperature limit alarm system, overheating is automatically interrupted to ensure experimental safety (optional).
5. Provide 4~ 20mA standard current signal and RS485 interface, which can be connected to a recorder and computer to record temperature parameter changes (optional).
6. Integrated ultraviolet sterilization system, regular disinfection, effectively prevent contamination during cell fostering.
Principle
Mildew incubator achieves precise temperature control through branded Compressors and circulating fans, and uses fuzzy PID intelligent temperature controllers to maintain a stable temperature environment with low Fluctuation. The UV sterilization system is regularly disinfected to prevent microbial contamination and ensure the safe and reliable foster process.
Applications
Environment protection, drug testing, agricultural and livestock, aquatic research, colleges and universities, production departments, water analysis, BOD determination, bacterial fostering, mold fostering, microbial fostering, plant cultivation, breeding experiments
Steps
1. Connect the power supply and ensure that the voltage is 200V 50Hz.
2. Turn on the device and set the required temperature (Temperature range 4~ 60 ° C) and timing parameters (1~ 9999 minutes) through the LCD screen.
3. Place the sample on the adjustable spacing Shelf and close the box door.
4. Start the equipment, monitor temperature fluctuations and operating conditions, and use an ultraviolet sterilization system for disinfection if necessary.
5. After the experiment, turn off the power and clean the cabinet.
Notice
• Ensure that the Working Ambient Temperature is within the range of 4-35 ° C.
• Power supply voltage check before use 200V 50Hz requirements.
• Regularly clean the liner and box to maintain hygiene.
• Pay attention to whether the independent temperature limit alarm system starts normally when overheating.
• Optional functions such as temperature limit alarm and interface connection need to be configured according to actual needs.
• Avoid operating in humid or flammable environments to prevent accidents.
