PUSHEN GZY-I Linear Drying time Recorder Film Drying time Recorder 6 pins 300mm Travel

Name: PUSHEN GZY-I Linear Drying time Recorder Film Drying time Recorder 6 pins 300mm Travel
Brand: Pushen
SKU: NB019506
Price: 742.0 USD
Availability: InStock

$ 742.00Ex works

Equipped with 6 Φ 1mm scribing needles and 11g load, 300mm Travel can be set to 6/12/24 hours track period, and each stage of coating drying can be accurately determined by scratch observation method.

Model

GZY-I
GZY-II

Get Quote

Category : Drying Time Tester

Brand : Pushen

SKU : NB019506

Service :The delivery and service By NBCLab.Com

Overview

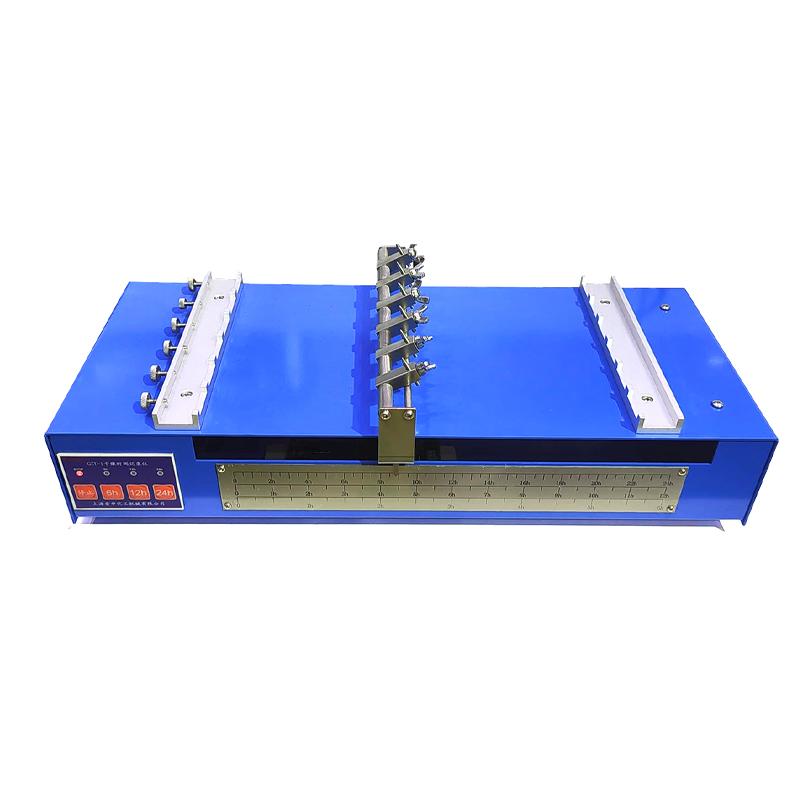

GZY-I linear Drying time Recorder is a PUSHEN brand product, mainly used to test the drying and curing time of coatings and paints. The device measures the drying and curing time by scribing on the coating and observing the scratch.

Features

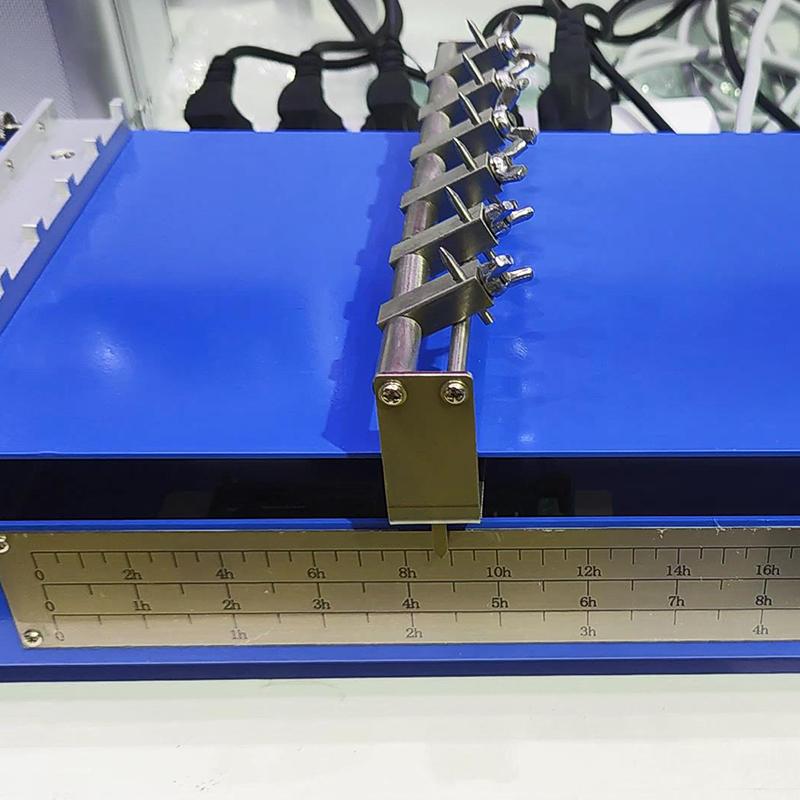

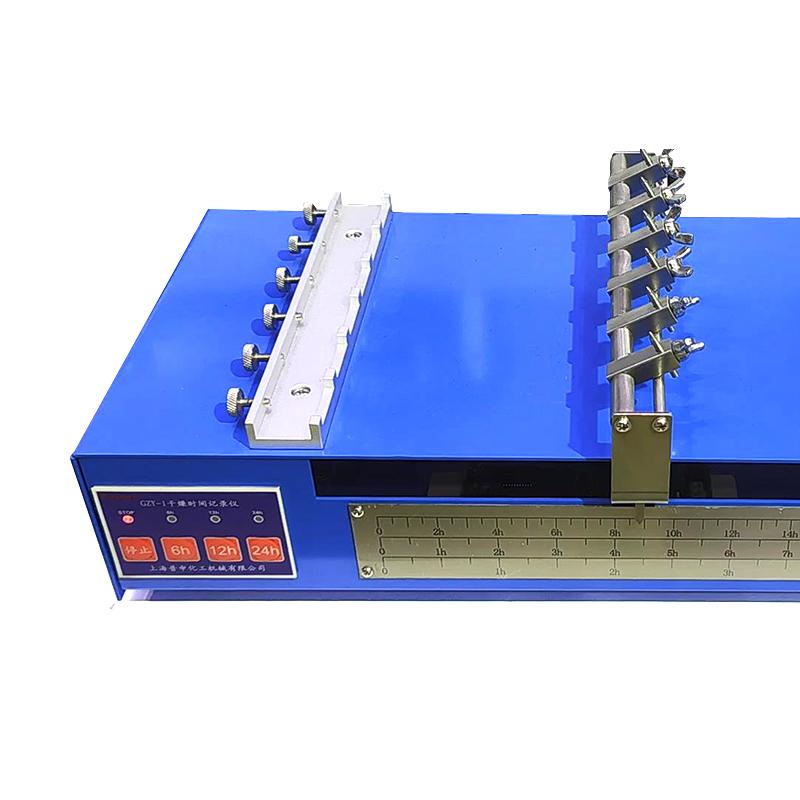

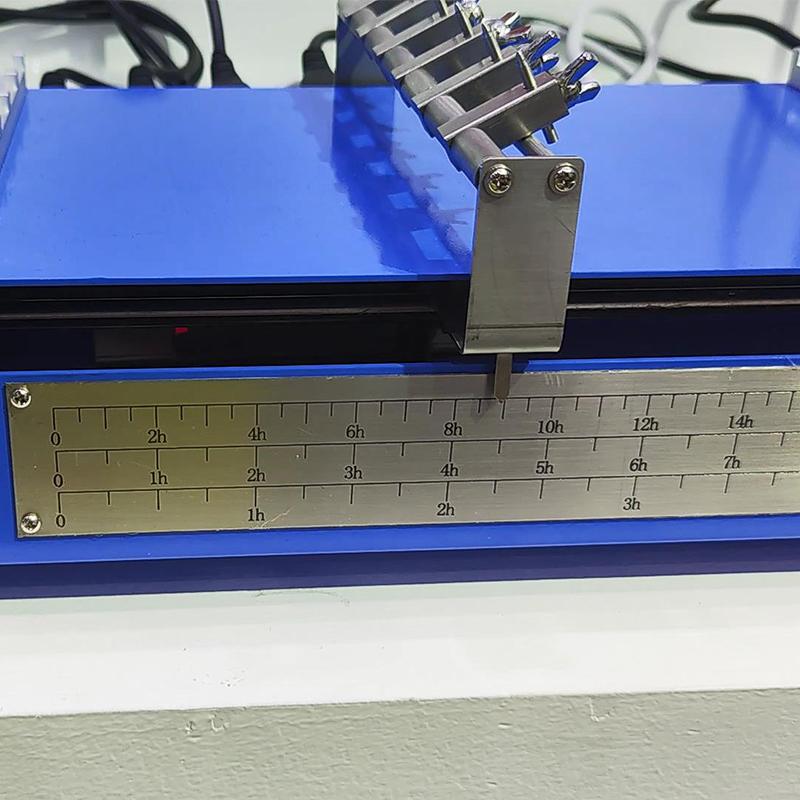

1. Equipped with six strokes with hemispherical contact points, installed on the carriage. 2. The stroke rod is driven by the carriage to move vertically on the specimen. 3. The moving time can be measured by the instrument edge scale, corresponding to the various stages in drying the observation track. 4. Spreader coating on Glass strips 23mm wide and 340mm long, using Cube Applicator Spreader.

Principle

The instrument is based on the mathematical formula "distance = speed × time", by scratching on the paint and paints coatings, observe the change of scratches over time, and then measure the drying and curing time.

Applications

Drying time Recorder is suitable for determining the drying time of surface coatings such as paints and coatings

Standards

ISO 9117-4、ASTMD 5895

Steps

1. Spreader the coating on Glass strips 23mm wide and 340mm long. 2. Install the scribe rod and start the carriage to move the scribe needle vertically on the sample. 3. Measurement of moving time through the instrument edge scale. 4. Observe the scratch track, corresponding to each stage in drying.

Notice

• Ensure uniform coating Spreader on Glass. • Check whether the stroke rod and carriage are normal before use. • Set the appropriate time observation point according to the trajectory period. • Follow relevant safety practices.

Number of strokes
6 stitches
Scribing needle specification
Scribing needle diameter Φ 1mm
Load weight
11g
Travel
300mm

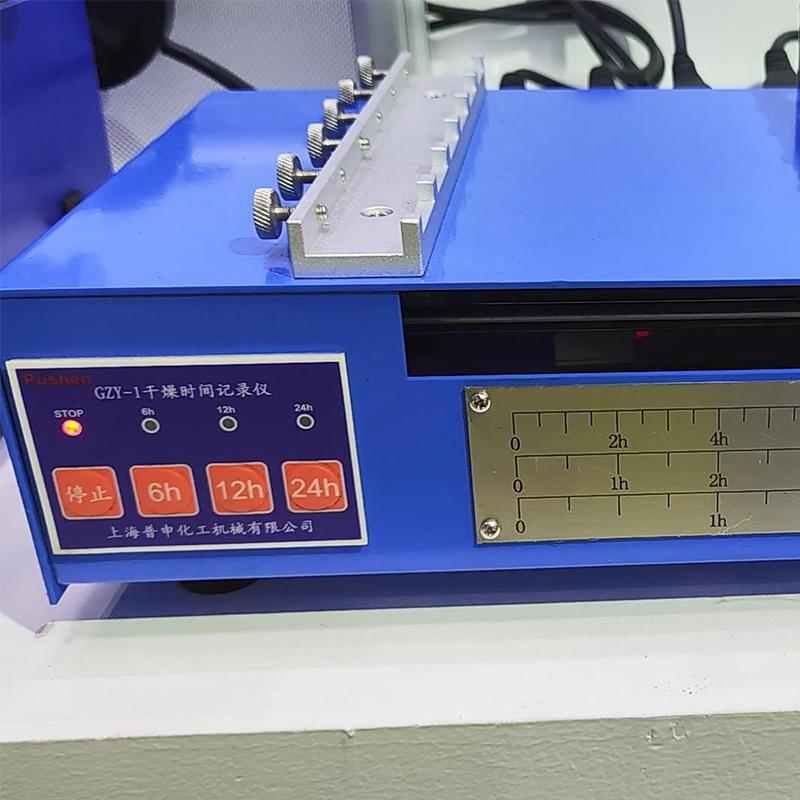

time setting
6/12/24h
execution standard
ISO 9117-4 & ASTMD 5895
Motor Power
20W
Dimension
490*220*130mm
Shipment weight
10kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
