Overview

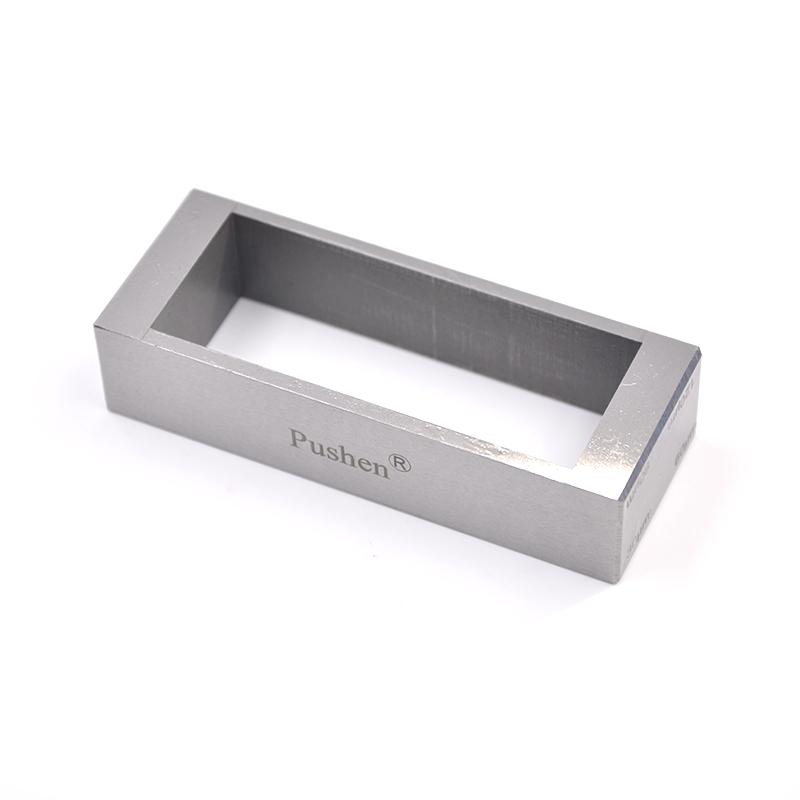

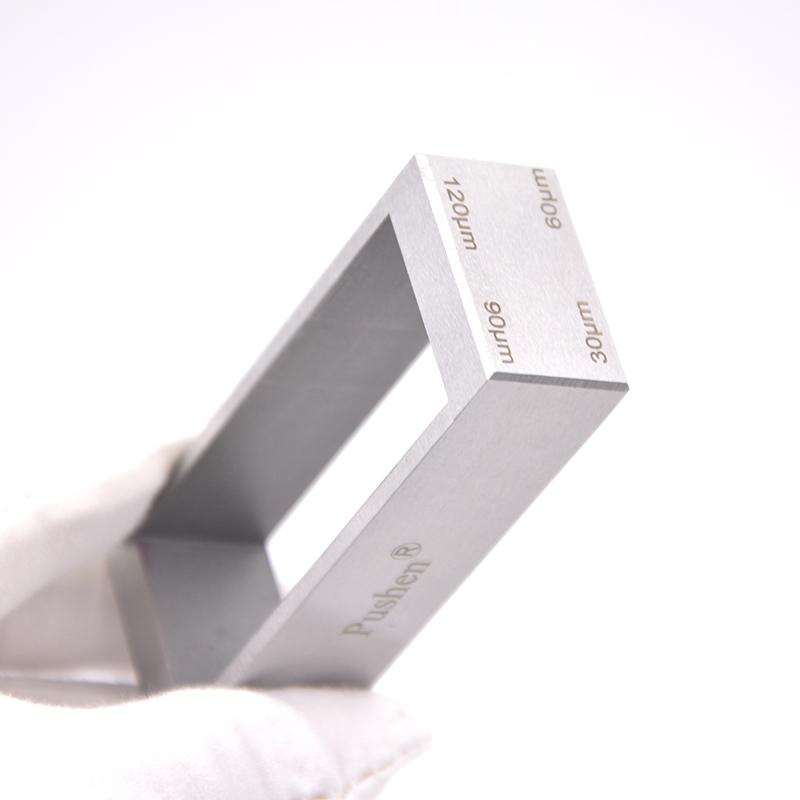

The PUSHEN QTG 300-600um Frame Applicator is designed to Spreader uniform paints, binders and similar products on flat substrates. The film applicator is suitable for low viscosity aqueous, acidic and alkaline products and can be used with the Automatic Film Applicator.
Features
1. Suitable for low viscosity water, acid and alkaline products
2. Can be used with Automatic Film Applicator
3. Made of stainless steel 1Cr17N2
4. accuracy up to +/- 4μm
5. Provide a variety of wet film thickness options (300/400/500/600μm)
6.The application width is 60mm
Principle
Applicator is placed on a fixed template, the sample is poured in front of the Applicator after sliding at a uniform speed, thereby forming a uniform wet-film of a predetermined thickness on the substrate.
Applications
Spreader for wet-film with specified thickness, measuring the hiding power of the sample, measuring the color of the sample, and preparing the sample
Steps
1. Place the template on the platform and fix it
2. Applicator according to the required wet film thickness
3. Place the Applicator on the short side of the template close to parallel or specified positions
4. Pour approximately 5 ml of sample in front of the Applicator
5. Press and hold both ends of the Applicator with your finger
6. Glide at a constant speed of 150 mm/s
7. Wash and dry with solvent after use
8. Apply lubricating oil to the surface
Notice
The template must be fixed, and the Applicator must not be moved when it slides
• Wash and dry with solvent after use
• Apply lubricating oil to the surface after use
